TP-LINK Router VPN 10G ER8111

TP-LINK Router VPN 10G ER8111

Model:
Description:

Omada Gigabit VPN Router with 10G Ports

• Operation integrated with the Omada SDN platform: Unattended ZTP (ZTP) configuration*3, central cloud management and intelligent monitoring.
• Centralized management: Access from the cloud and Omada app is the convenience of management.
• Two 10GE SFP+ ports: 1x WAN and 1x 10GE SFP+ WAN/LAN enable aggregation of high-bandwidth connections.
• Up to 10 WAN Ports: Band-balanced fiber and RJ45 ports increase multi-line capability.
• Highly secure VPN: SSL/ IPSec / PPTP / L2TP VPN / OpenVPN / L2TP over IPSec VPN standards are ideal for branch-to-branch and remote work.
• Reliable Security: Powerful Firewall, DoS Protection, IP/MAC/URL Filtering, IP-MAC Binding, and One-Click ALG Activation provide world-class network protection.

Centralized management in the cloud

Seamless integration with the Omada SDN platform

2.2 GHz quad-core processor

Industrial-grade device design for maximum performance

Two 10GE SFP+ ports

High-bandwidth aggregation with ports: 1× WAN and 1× WAN/LAN

Up to 10 WAN ports

Multi-WAN Bandwidth Balancing increases multi-line capability

Two USB 3.0 ports

4G/3G connection possible via USB Modem as LTE WAN backup link

High performance

Support for up to 2,300,000 simultaneous sessions

Secure VPN

Enterprise grade standard SSL / IPSec / PPTP / L2TP VPN and OpenVPN / L2TP over IPSec VPN

Increased security

Powerful Firewall, DoS protection, IP/MAC/URL/Keyword Filtering

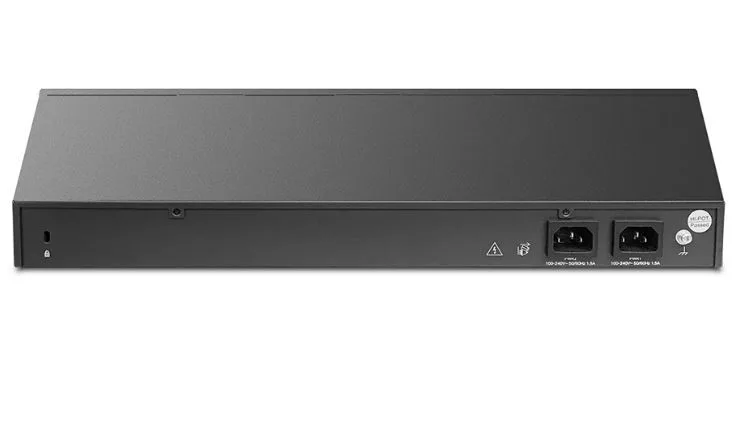

Redundant power

Carrier-grade reliability for enterprise networks

High performance Quad-core processor clocked at 2.2GHz

Manage your entire network with high computing power. Redundant power adds carrier-grade reliability to corporate networks.

Make the most of your 10G broadband connection with the Omada Gateway

Build an ultra-fast network with the Omada ER8411 Enterprise VPN Router with 10G ports. This router exceeds the high speed, reliability and security needs of corporate networks. It is an ideal solution for large scale deployments such as offices, schools and hotels.

10 WAN Ports and One USB WAN for Mobile Link

Up to 10 available SFP+, SFP and RJ45 WAN ports allow the router to support various Internet connections. Multi-WAN Bandwidth Balancing separates data streams based on the bandwidth ratio of each WAN port to increase utilization of multi-lane links. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

Secure and efficient VPN

The ER8411 provides traffic pass-through and support for multiple VPN protocols, including SSL, IPSec, PPTP and L2TP in Client/Server mode. One-click Auto IPSec VPN greatly simplifies VPN setup, network management and deployment. The router also has a built-in hardware VPN engine to support and manage hundreds of IPSec, PPTP, L2TP, SSL VPN and OpenVPN tunnels.

Integration with the Omada SDN platform

The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface.

Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 8 x 10/100/1000 Mbit/s
I/O ports: 2 x USB 3.0
I/O ports: 1 x SFP
I/O ports: 2 x 10Gbit SFP/SFP+
I/O ports: 1 x Console port (RJ-45)
Standards: 802.1Q
Standards: IPv6
Security:

• SPI Firewall Security
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• Protection against DoS attacks, Ping of Death
• Local management
• WEB group filtering
• URL filtering
• Network security
• Protection against ARP attacks Sending GARP packets
• ARP scanning
• IP and MAC address binding
• Protection against network attacks TCP/UDP/ICMP Flood Defense
• TCP scan blocking (Stealth FIN/Xmas/Null)
• Blocking the receipt of ping packets from the WAN
• Access control based on source/destination IP address

Management, monitoring, configuration:

• Omada App: Yes (via OC300 Controller, OC200 Controller, Omada Cloud Controller or Omada Software Controller)
• Central management: Omada hardware controller (OC300), Omada hardware controller (OC200), Omada software controller, Cloud-based Omada controller
• Cloud Access: Yes (via OC300, OC200, Omada Cloud Controller or Omada Software Controller)
• Services: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Support: Web-based management, remote management, Exporting and importing configurations, SNMPv1/v2c/v3, Diagnostics (Ping and Traceroute)§5, NTP synchronization, Support for system logs
• Unattended ZTP configuration: Yes. Requires the use of the Cloud-based Omada Controller.
• Management panel functions: Automatic detection of devices, Intelligent network health monitoring, Warnings about unusual events, Unified setup process, Reboot schedule, Personalized web login page

Special functions:
Power supply:

Redundant power supply (100240 VAC, 50/60 Hz)

Software:
Supported operating systems: Windows 8
Supported operating systems: Linux
Supported operating systems: Unix
Supported operating systems: Mac OS
Supported operating systems: Windows 98 SE
Supported operating systems: Windows NT
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Windows Vista
Supported operating systems: Windows 7
Supported operating systems: Windows 8.1
Supported operating systems: Windows 10
Supported operating systems: Windows 11
System Requirements:
Accessories included:

• ER8411 router
• Power cable
• Rack mounting kit
• Quick Installation Guide

Color: Black
Dimensions:

440 × 220 × 44 mm
