TP-LINK Router Multi-Gigabit VPN ER707-M2

TP-LINK Router Multi-Gigabit VPN ER707-M2

Model:

ER707-M2

Description:

ER707-M2

• Omada Multi-Gigabit VPN Router
• Two 2.5G ports: 1× 2.5G WAN port and 1× 2.5G WAN/LAN port ensure high connection speed.
• Up to 6 WAN ports: 2.5G RJ45, gigabit fiber and bandwidth load-balanced gigabit RJ45 WAN ports enhance multi-broadband capabilities.
• Secure VPN: Enterprise SSL/IPSec/GER§/PPTP/L2TP VPN and OpenVPN are ideal for multi-branch and WFH.
• Operation integrated with the Omada SDN platform: Unattended ZTP (Zero-Touch Provisioning) configuration, Central Cloud Management, Intelligent Monitoring and much more.
• Central management: Access from the Cloud and the Omada application provides convenient management.
• Reliable security: Firewall, DoS attack protection, IP/MAC/URL filtering, and even more security features.



Two 2.5 Gb/s ports built for harsh environments

ER707-M2 provides high data transmission via two 2.5 Gb/s ports. The device is suitable for network environments where many people visit, such as shops, hotels and offices. You can also enjoy a blazing-fast network connection while working from home.

6 WAN ports. 1 USB port for mobile broadband

ER707-M2 supports various Internet access sources thanks to 6 WAN ports – RJ45 and SFP. Multi-WAN link balancing distributes data streams based on the bandwidth ratio of each WAN port to scale up the use of multiple broadband links. Connect a 4G/3G modem to a USB 2.0 port for an LTE WAN backup connection.

Omada SDN a smarter cloud solution for enterprise networks

The ER707-M2 router, fully integrated with the Omada SDN platform, can be managed centrally and remotely from anywhere at any time. There is also a configuration page and a dedicated application to make device management even more convenient.

Easy management via the Omada app

Network configuration via the application takes only a few minutes. Omada allows you to adjust settings to your preferences, monitor network status and manage connected clients – all from your smartphone or tablet.

Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 4 x 10/100/1000 Mbit/s
I/O ports: 1 x SFP
I/O ports: 1 x 10/100/1000/2500 RJ-45 port
I/O ports: 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports: 1 x USB 2.0
Standards: 802.3x
Standards: 802.3q
Standards: 802.3z
Standards: 802.3u
Standards: 802.3ab
Security:

Filtration

• WEB§ group filtering
• URL filtering
• Network security

Protection against ARP attacks

• Sending GARP§ packets
• ARP Scanning§
• IP and MAC address binding§

Protection against network attacks

• TCP/UDP/ICMP Flood Defense
• TCP Scan Blocking (Stealth FIN/Xmas/Null)
• Blocking the reception of ping packets from the WAN network

Access control

• Access control based on source/destination IP address

Management, monitoring, configuration:

• Automatic device detection
• Intelligent network status monitoring
• Warnings of abnormal events
• Unified configuration process
• Restart scheduler
• Personalised network login page
• ZTP (Zero-Touch Provisioning)
• Omada cloud-based controller
• Omada Controller Hardware (OC300)
• Omada Controller Hardware (OC200)
• Omada Software Controller

Special functions:

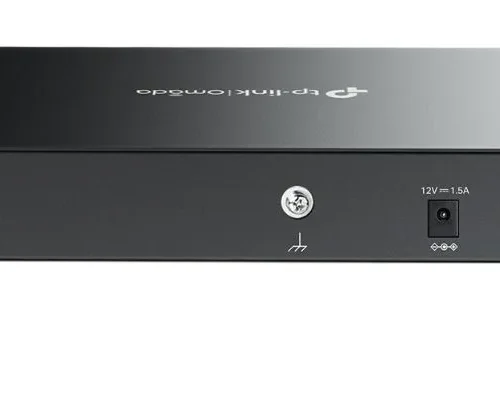

Power supply:

12V/1.5A power supply

Software:
Supported operating systems: Linux
Supported operating systems: Unix
Supported operating systems: Mac OS
Supported operating systems: Windows 98 SE
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Windows Vista
Supported operating systems: Windows 7
Supported operating systems: Windows 8
Supported operating systems: Windows 8.1
Supported operating systems: Windows 10
Supported operating systems: Windows 11
System Requirements:
Environment requirements:
Certificates:
Accessories included:

• ER707-M2
• Charger
• Quick installation instructions

Color: Black
Dimensions:

226 × 131 × 35 mm

Other features:
Designation:
