TP-LINK Camera InSight S485PI

TP-LINK Camera InSight S485PI

Description:

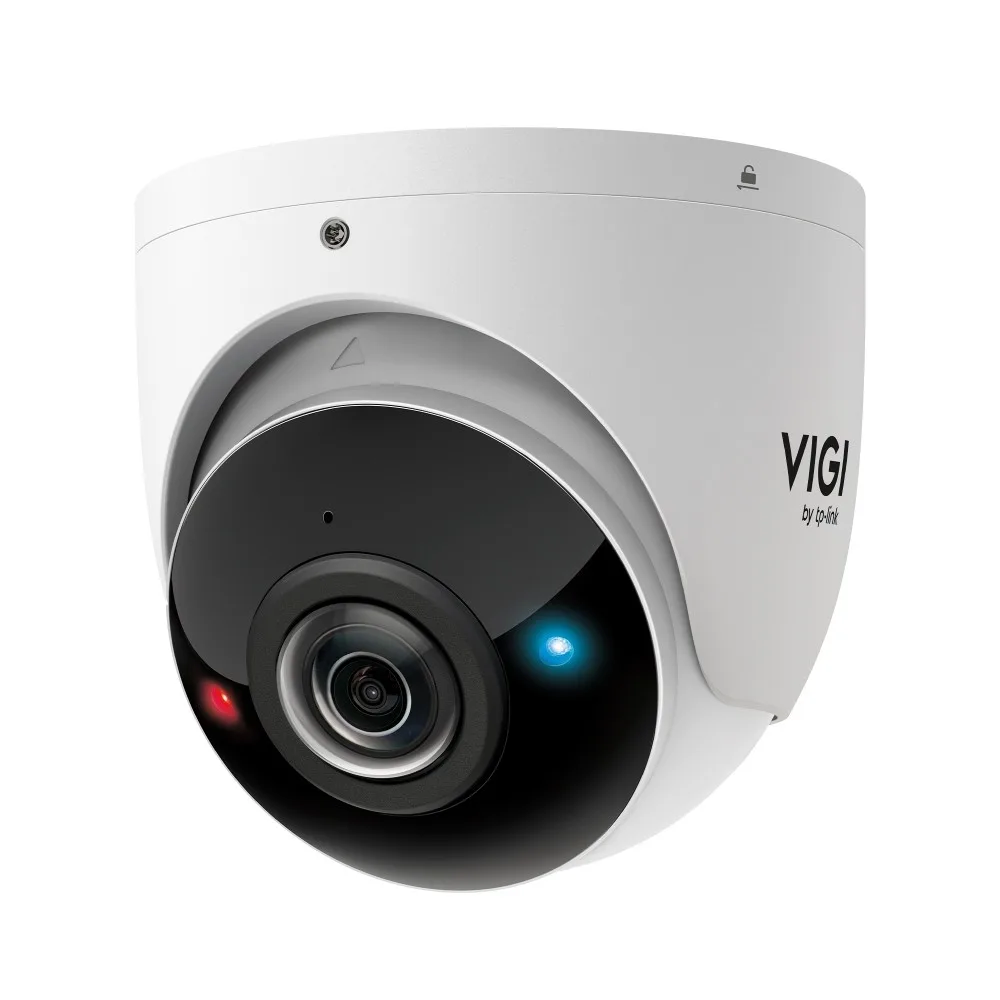

InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics*2
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Red-Blue Warning Lights with
Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration
The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

VIGI AI Detection Technology

• People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.
• Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

type: Panoramic
type: fixed dome camera
Resolution: 4K Ultra HD (3840 x 2160)
Frames per second: 30
Sensor:

1/2.7″ Progressive Scan CMOS

Lens:

• Fixed Focal Lens
• Focal Length: 1.65 mm
• Aperture: F2.0
• Lens Mount: M12

Viewing angle, vertical: 86 Degrees
Viewing angle, horizontal: 180 Degrees
Visual angle diagonal: 180 Degrees
Microphone: Yes
Speakers built-in : Yes
Two-way transmission: Yes
Night mode: Yes
Motion detection: Yes
Minimum illuminance: 0 Lux
Security:

• Password Protection
• HTTPS Encryption
• IP Address Filter
• Digest Authentication

Management, monitoring, configuration:

• ONVIF
• API: Open Network Video Interface (Profile S/T/G)
• Simultaneous Live View 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
• Cloud

Network protocols:

• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP

Standards: 802.3at
Special functions:

Smart Event:

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection



Basic Event:

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device



Alarm Linkage:

• Memory Card Video Recording
• Upload to FTP Server
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm

Video compression: H.265
Video compression: H.265+
Video compression: H.264+
Video compression: H.264
Memory card reader: Yes
Memory standard: SDXC
Memory standard: SDHC
Memory standard: SD
Wireless communication: No
Connectors: RJ-45
Connectors: Audio in
Connectors: Audio out
Connectors: microSD
Protection class: IP67
Impact protection: IK10
Power supply:

• 12V DC +/- 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 21 W

System Requirements:

• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above

Environment requirements:

• Operating Temperature: -30 to 60 °C
• Storage Temperature: -40 °C to 60 °C
• Operating Humidity: 95% or Less (Non-condensing)
• Storage Humidity: 95% or Less (Non-condensing)

Accessories included:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Color: White
Dimensions:

112.3 x 112.3 x 110.2 mm

Certificates:

• CE
• NTRA
• KC
• FCC
• VCCI
• BSMI
• ONVIF

Other features:
Designation:
