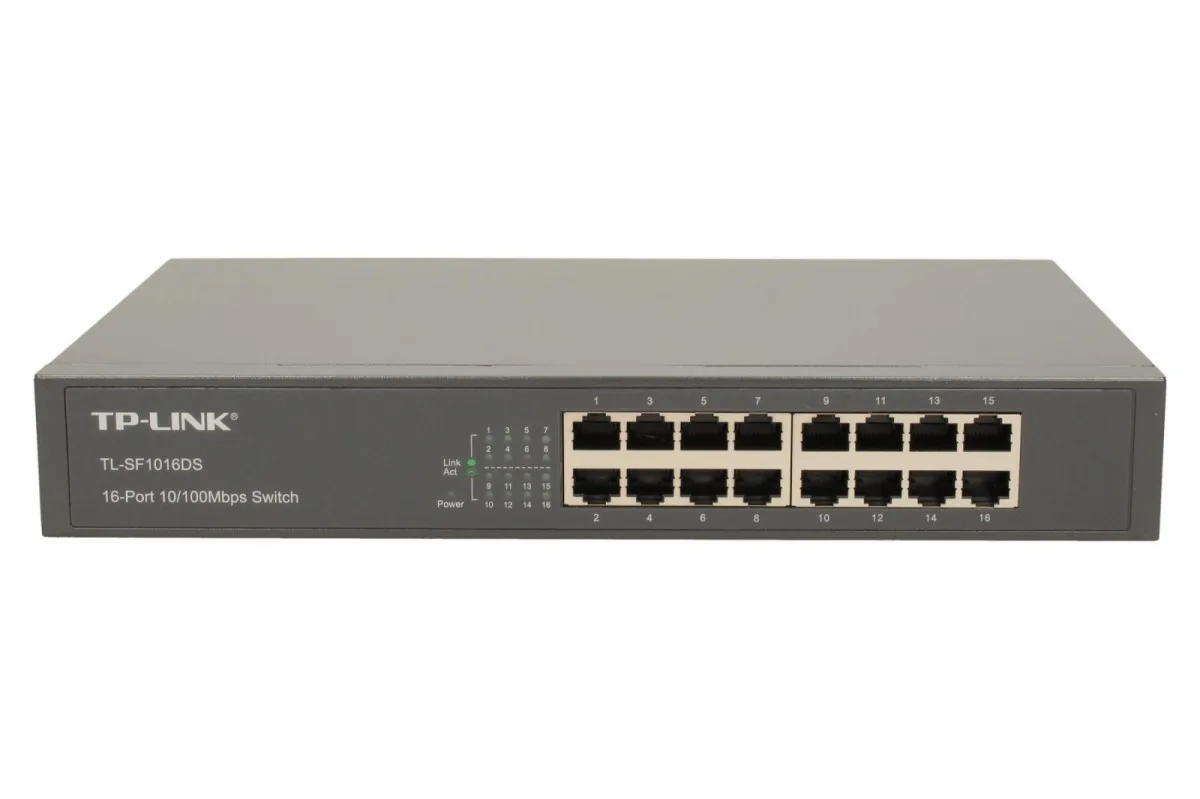

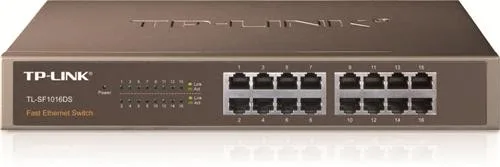

TP-LINK 16-Port 10/100Mbps Switch

TP-LINK 16-Port 10/100Mbps Switch

Description:

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media10Base-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100&#217, STP (maximum 328.1feet)
100Base-Tx: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100&#217, STP (maximum 328.1feet)
Fan QuantityFanless
Dimensions ( W x D x H )11.6&#215,7.1&#215,1.7 in. (294&#215,180&#215,44 mm)
Power Supply100-240VAC, 50/60Hz

PERFORMANCE

Switching Capacity3.2Gbps
MAC Address Table8K
Packet Forwarding Rate2.38Mpps
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer MethodStore-and-Forward

OTHERS

CertificationFCC, CE, RoHS
Package Contents:
– 16-Port 10/100Mbps Desktop/Rackmount Switch
– Power Cord
– Installation Guide
– Rackmount Kit
– Rubber Feet
System RequirementsMicrosoft&#174, Windows&#174, 98SE, NT, 2000, XP, Vista&#8482,, Windows 7 or Windows 8, MAC&#174, OS, NetWare&#174,, UNIX&#174, or Linux.
EnvironmentOperating Temperature: 0&#8451,&#126,40&#8451, (32&#8457,&#126,104&#8457,),
Storage Temperature: -40&#8451,&#126,70&#8451, (-40&#8457,&#126,158&#8457,),
Operating Humidity: 10%&#126,90% non-condensing
Storage Humidity: 5%&#126,90% non-condensing

&#160,

Designation:
