Totolink Switch S505-V5 5 ports 10/100

Totolink Switch S505-V5 5 ports 10/100

Description:

Totolink S505, a 5-port 10/100Mbps switch

S505 is a 5-port unmanaged switch. Featuring a 5-port 10/100Mbps switch with Auto MDI/MDIX support on each port, the switch can eliminate the need for crossover cables or uplink ports. It can forward and filter packets at full cable speed. Each port can be used as a generic port or an uplink port. Moreover, it can also be simply connected to a server, hub or switch using an Ethernet cable or a crossover cable.

Characteristics:

• Supports IEEE 802.3x flow control for full duplex and is backwards compatible with half duplex
• Supports autolearning and autoaging of MAC addresses
• Plastic housing, the possibility of mounting it to the wall

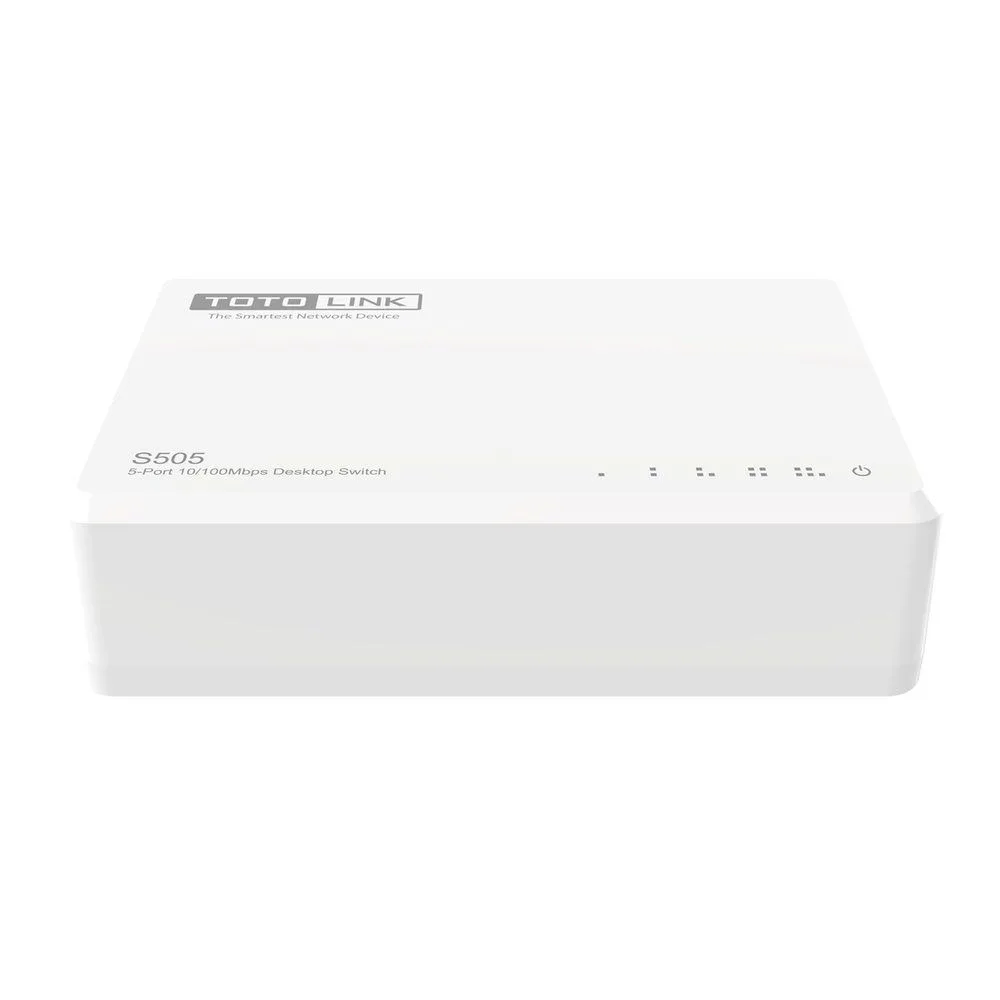

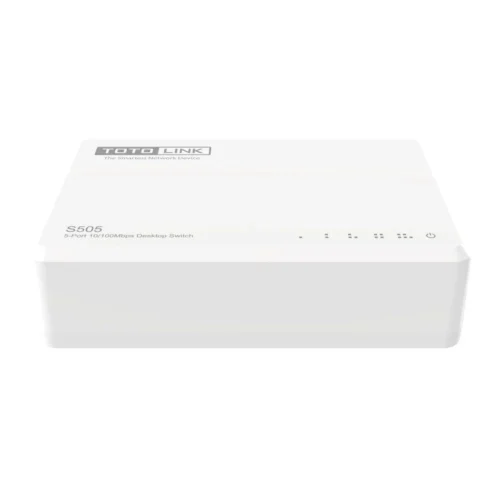

• LED indicators for power, link status and activity monitoring

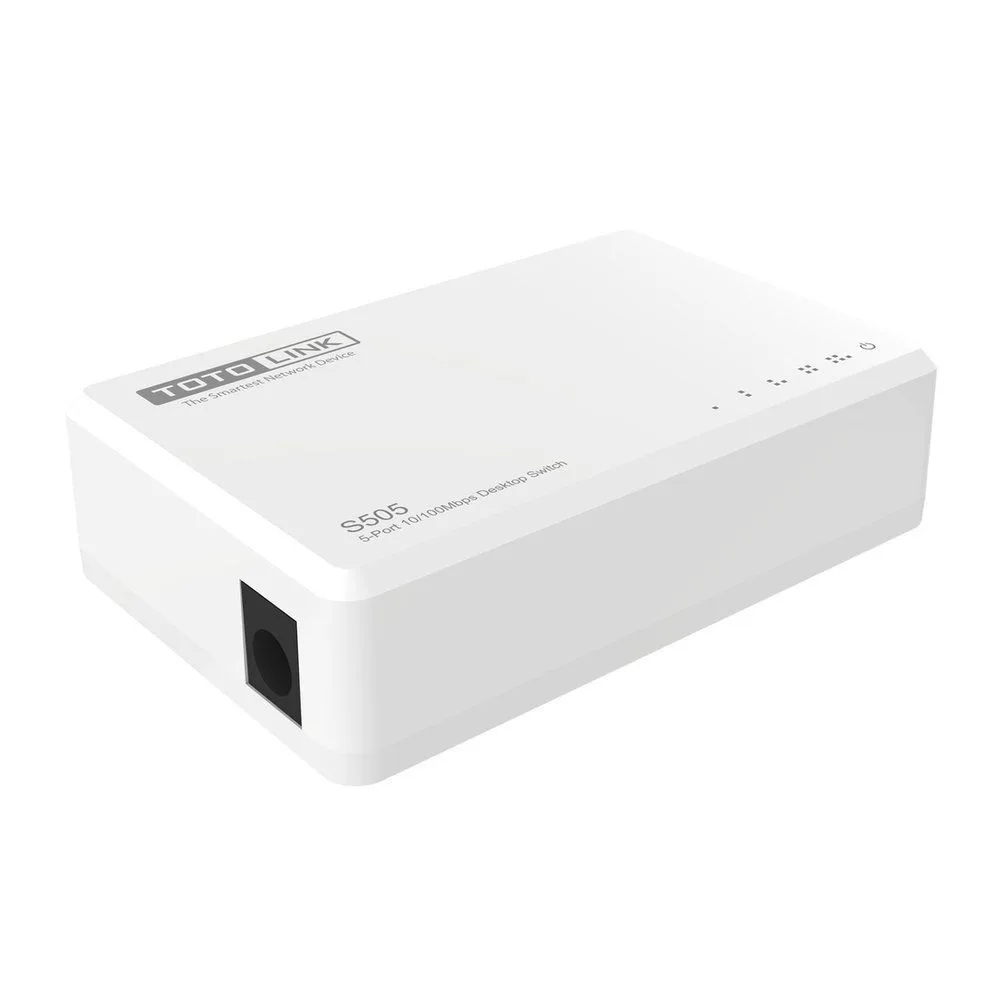

• Powered by a power adapter
• Ease of use and configuration

High efficiency and small size

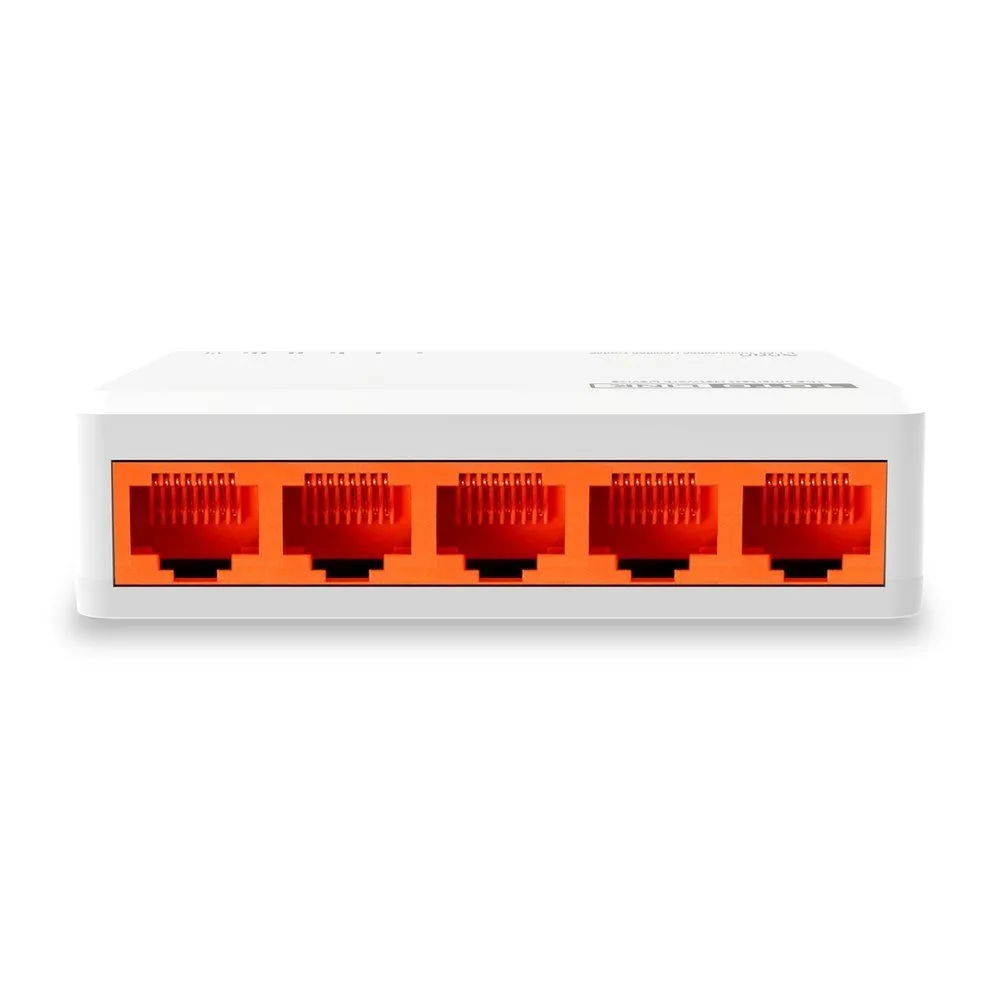

The switch complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, has 5 10/100Mbps RJ45 ports with auto-negotiation with LED indicators to monitor link status and activity. The auto MDI / MDIX function on all ports helps to recognize whether the connection requires a crossover or straight-through cable. Besides, the ports can detect the network speed and auto-negotiate the network between 10BaseT and 100BaseTX to ensure the maximum possible speed for each device connected to the network. In addition, thanks to the miniature design, the device can be easily moved. The S505 will fit anywhere.

Simple operation and plug and play option

The switch is easy to use for anyone, even those with no technical knowledge of network devices. Just plug in the cable, it’s convenient for expanding your wired network at home. You can add up to four devices with a simple Ethernet cable without additional configuration. No setup required, just plug and play to use the device. You can add up to four devices with an Ethernet cable to extend your wired network.

High-speed Ethernet connection

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, the S505 offers 5 10/100Mbps ports with Auto-MDI/MDIX support, greatly increasing network throughput and simplifying cable management.

Switch class: Unmanaged
Application: Home and small office
Network architecture: FastEthernet
Number of 10/100 Mbps ports: 5
Console port: No
Forwarding mode: Store-and-forward
Throughput: 1 Gigabity na sek.
MAC address table size: 1000
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

MAC address learning: Auto learning, auto updating

Chassis type: Desktop
Fan : No
Power supply : External
Accessories included:
Power supply:

9V DC/0.5A

Dimensions:

132 x 75 x 24 mm

Environment requirements:

• Working temperature: 0~60C
• Storage temperature: 20~70C
• Operating humidity: 10%~90% non-condensing
• Storage humidity: 5%~95% non-condensing

Other features:

Transmission medium:

• 10BaseT: UTP Cat 3, 4, 5 cable (100m, max.)
• EIA/TIA568 100STP (100m max.)
• 100BaseTx: UTP Cat 5, 5e cable (100m, max.)
• EIA/TIA568 1100 STP (100m max.)

Designation:
