Totolink Router LTE LR350

Totolink Router LTE LR350

Model:

LR350

Description:

4G LTE wireless router and 300Mbps Wi-Fi

Totolink LR350 is a 4G LTE 300 Mb/s wireless router that complies with the advanced 802.11n standards and offers Wi-Fi speeds up to 300 Mb/s. The router provides convenient access to the 4G network, while sharing the 4G LTE network with multiple Wi-Fi devices, so that all Wi-Fi devices can access the network wherever you are.

The most important features of the Totolink LR350 router:

• Compliant with IEEE 802.11b/g/n standards
• Convenient 4G access – share your 4G LTE network with multiple Wi-Fi devices and achieve download speeds of up to 150Mbps and upload speeds of up to 50Mbps
• 2.4GHz wireless speed up to 300Mbps
• Powerful, integrated antennas ensure stable wireless connections and better coverage
• Support LTE-FDD, LTE-TDD, WCDMA, GSM network type
• No setup required, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Provides WPA/WPA2 security
• Support router mode, 4G mode
• It supports IP, MAC, URL filtering and port forwarding
• Support power supply via USB to DC power cable

Super-fast 4G LTE speed and 2.4GHz Wi-Fi

Thanks to LTE technology, the LR350 achieves download speeds of up to 150 Mb/s and upload speeds of up to 50 Mb/s. Supports Internet sharing up to 300Mbps in the 2.4GHz band.

Plug and Play

Just insert the SIM card, connect the power supply and start using the 4G LTE network. You can also use the Totolink LR350 router in the traditional way, connecting it to the network using an RJ45 cable.

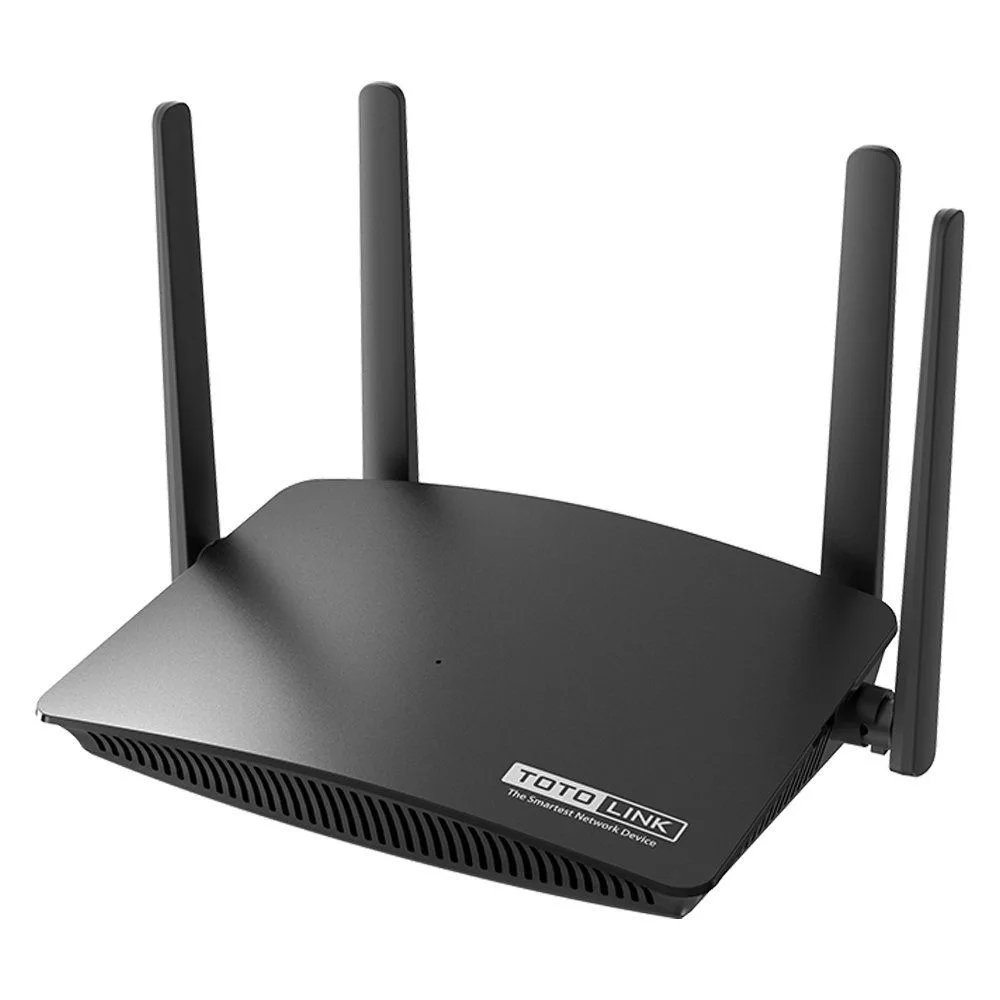

4 external high-gain antennas – stronger WiFi signal

Totolink LR350 is equipped not only with two WiFi antennas, but also with two external 4G antennas. The 4G signal is stronger and more stable. Videos won’t stutter and outdoor live streams will be smoother. You can enjoy a high-quality 4G network anytime and anywhere.

Low power consumption, flexible power mode

Thanks to the ultra-low power consumption design, the Totolink LR350 4G router can be connected to the power bank’s USB port with the supplied high-quality USB-DC power cable, so you can continue to surf the Internet. Keep your 4G network stable and online all the time.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: EDGE
Data transmission: LTE
GSM network: 1900 MHz
GSM network: 1800 MHz
GSM network: 900 MHz
GSM network: 850 MHz
UMTS network: 2100 MHz
UMTS network: 850 MHz
UMTS network: 900 MHz
UMTS network: 1700 MHz
UMTS network: 1900 MHz
LTE network: 2500 MHz
LTE network: 2100 MHz
LTE network: 700 MHz
LTE network: 2600 MHz
LTE network: 2300 MHz
LTE network: 850 MHz
LTE network: 1700 MHz
LTE network: 1800 MHz
LTE network: 800 MHz
LTE network: 1900 MHz
Aero2 support: No
Standards: 802.11b
Standards: 802.11n
Standards: 802.11g
Operating frequency: 2,4 GHz
Number of antennas: 4
Antenna: Fixed external
Antenna gain: 5 dBi
Security:

WPA/WPA2 Mixed

Special functions:

• Home: WAN Information, LAN Information, System Information
• WAN Type: Static IP, DHCP, PPPoE, 4G
• Wireless features: Multiple SSIDs, MAC authentication, WPS
• Firewall: MAC address filtering, IP/port filtering, URL filtering, DMZ
• Management: Password, system setup, time setup, firmware upgrade, system log
• Device capacity: Maximum 32 users

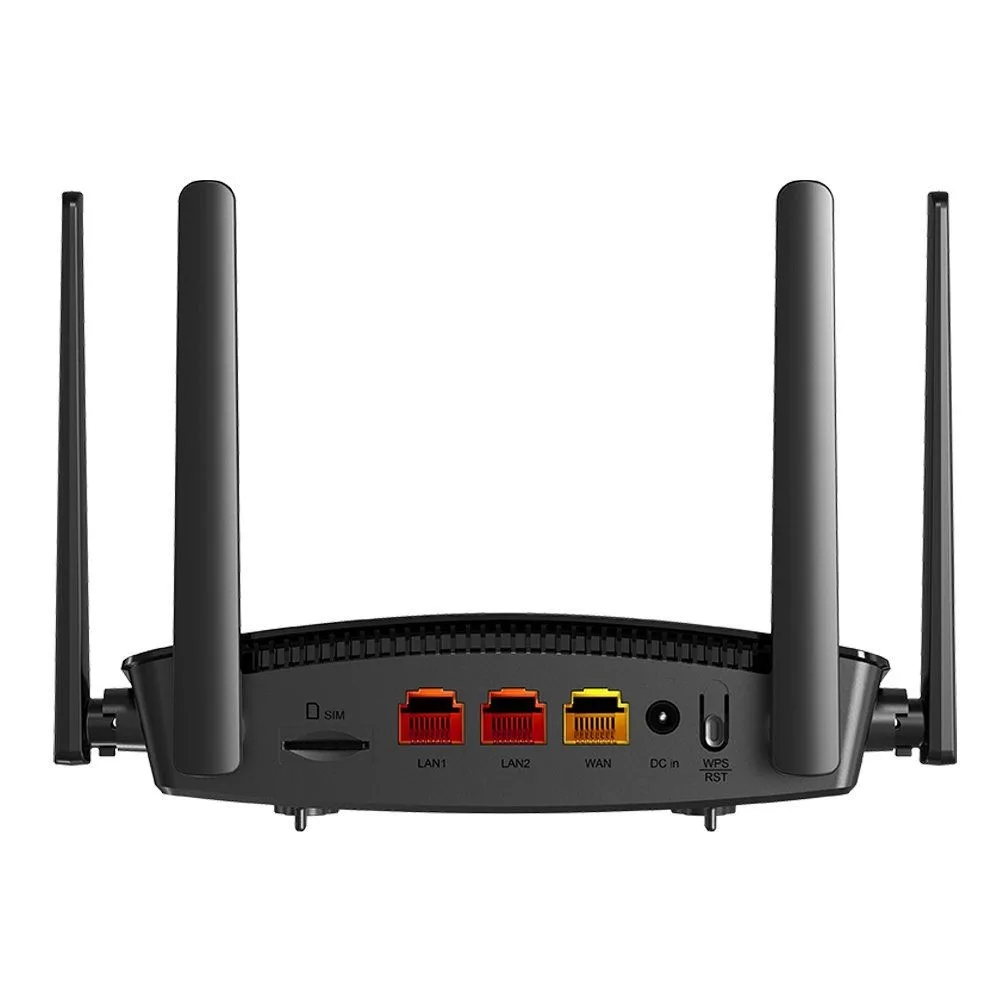

I/O ports: 1 x WAN (RJ-45)
I/O ports: 1 x SIM card slot
I/O ports: 2 x 10/100 Mbit/s
SIM card: Standard
SIM card: Micro
SIM card: Nano
Power supply:

9 V DC / 0.8 A

Software:
System Requirements:
Accessories included:

• LR350 wireless router
• Charger
• USB to DC power cable
• SIM adapter (Nano, Micro)
• Quick Installation Guide

Color: Black
Dimensions:

143 x 95 x 37,25 mm

Environment requirements:

• Operating temperature: 0°C ~ 40°C
• Storage temperature: -40°C ~ 70°C
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing

Other features:

• WPS/Reset button
• Data transfer speed: 2.4GHz to 300Mbps
