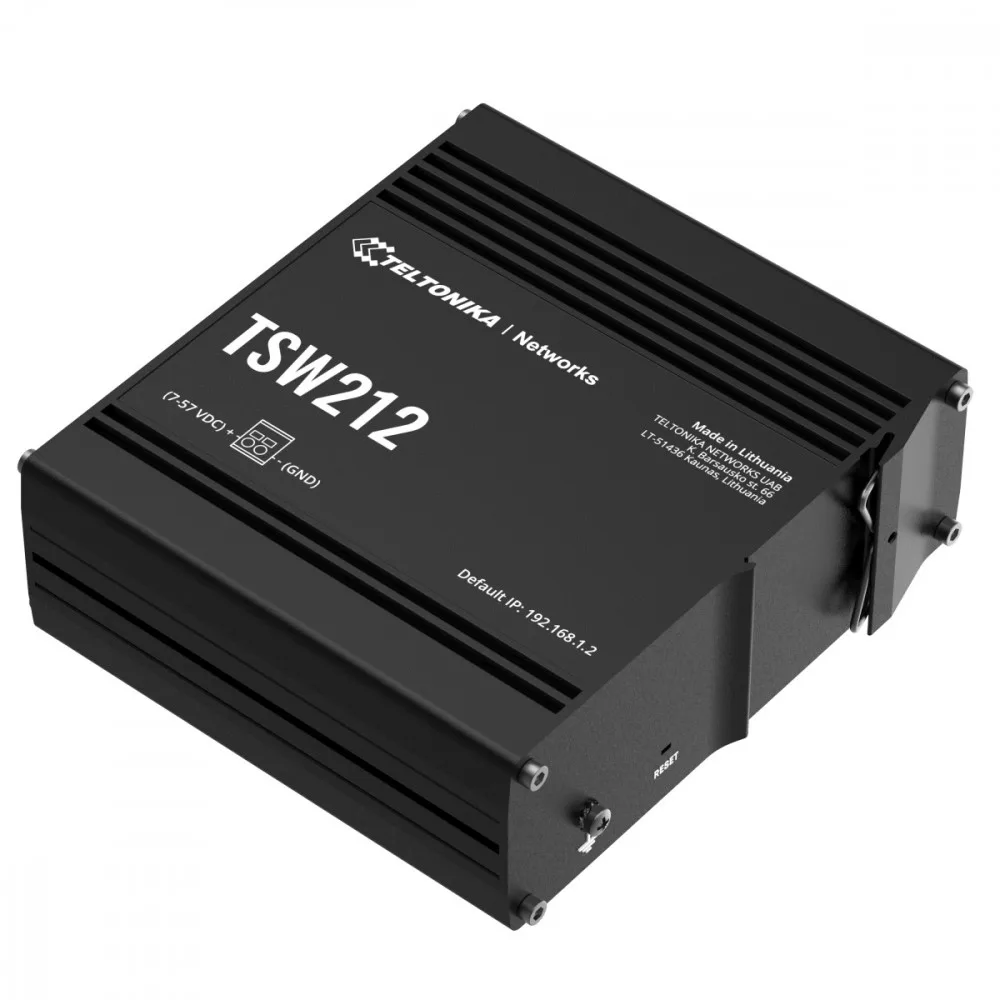

TELTONIKA Teltonika TSW212 Switch 2xSFP 8xGbE L2/L3 Feat.
Description:
TSW202 is the first managed industrial switch from Teltonika Networks that gives you greater control over the flow of data on your network and the role of ports in your solution.
The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic.
Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.
Switch class: Managed
Application: Home and small office
Switch layer: L2+
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: 2
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 20 Gigabity na sek.
Packet buffer: 512 Kilobajt
MAC address table size: 10000
Support for Jumbo frames: Yes
Jumbo frame size: 8 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:
IEEE 802.1p, IEEE 802.1Q, 802.3az
QoS:
Security:
IEC 62368-1:2018
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Chassis type: Rack
Fan : No
Power supply : External
Environment requirements:
- Operating temperature: -40°C to 75°C
- Degree of protection: IP30
- Operating humidity: 10% to 90%, non-condensing
Certificates:
CE, CB, RCM, FCC, IC,EAC, UCRF
Accessories included:
Power supply:
Input voltage range: 7 – 57 VDC
Dimensions:
132 x 44.2 x 122.2 mm
Weight: 615 gram
Other features:
