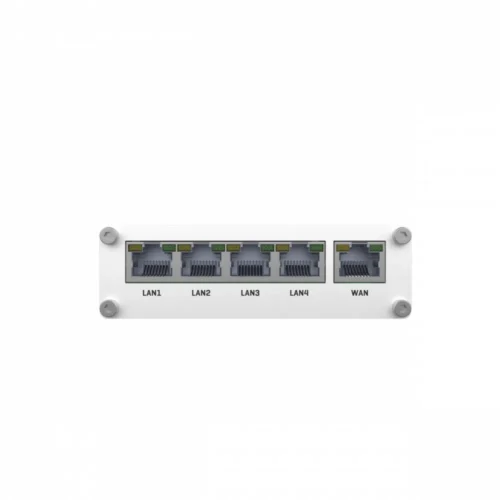

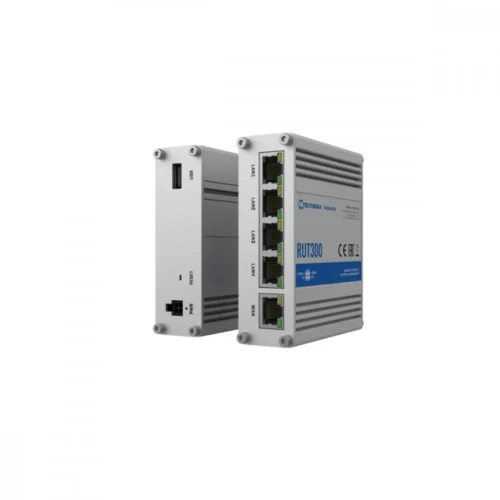

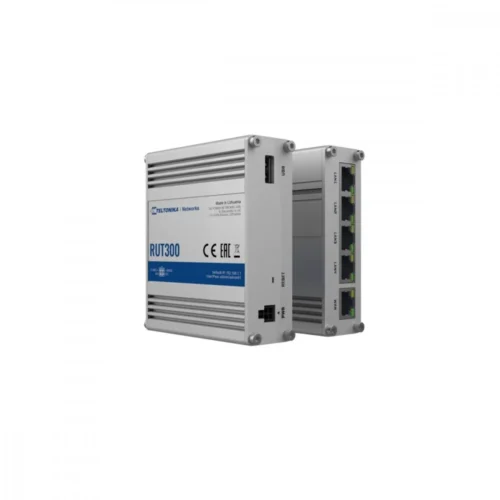

TELTONIKA Router RUT300 4xLAN, 1xWAN, USB

TELTONIKA Router RUT300 4xLAN, 1xWAN, USB

Model:

RUT300

Description:

RUTX08 router

RUTX08 is a rugged and efficient industrial Ethernet-to-Ethernet VPN router.

A VPN router that runs on RutOS – an advanced operating system based on OpenWRT.

It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. The durable aluminum housing and support for industrial networking protocols make the RUTX08 an excellent choice for professional applications. Multiple supported VPN services, an advanced firewall and a remote management system (RMS) make the RUTX08 a great device that does not require cellular or Wi-Fi connectivity.

Type: xDSL
Network architecture: FastEthernet
I/O ports: 1 x 10/100 Mbit/s WAN
I/O ports: 1 x USB 2.0
I/O ports: 4 x 10/100 Mbit/s
Standards: 802.11e
Standards: 802.3
Standards: 802.3u
Number of antennas: None
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

• Routing: Static routes, Routing rules, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
• Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Cloud: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Services: DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
• Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

Special functions:
Power supply:

4-pin socket, 7-30 VDC

Software:

RutOS (OpenWrt based Linux OS)

System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Certificates:
Accessories included:

• RUT300 router
• 9W power supply
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• RMS leaflet

Color: Aluminium
Weight: 229 gram
Dimensions:

100 x 30 x 85 mm

Other features:

• Processor: QCA9531, MIPS 24kc, 650 MHz
• RAM: 64 MB, DDR2
• Memory: 16 MB, SPI Flash

Designation:
