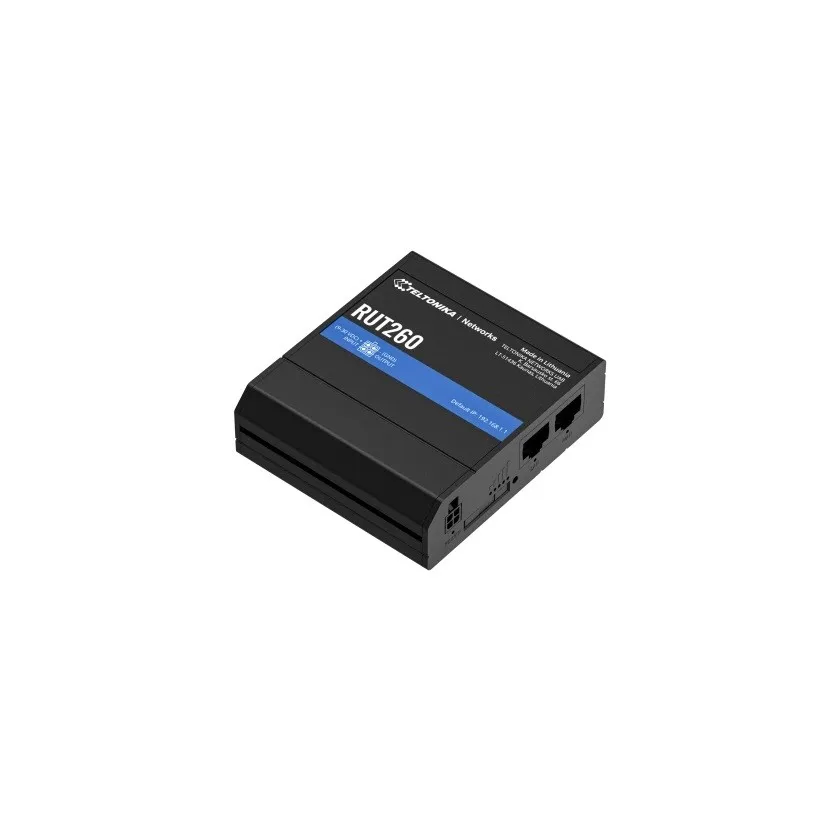

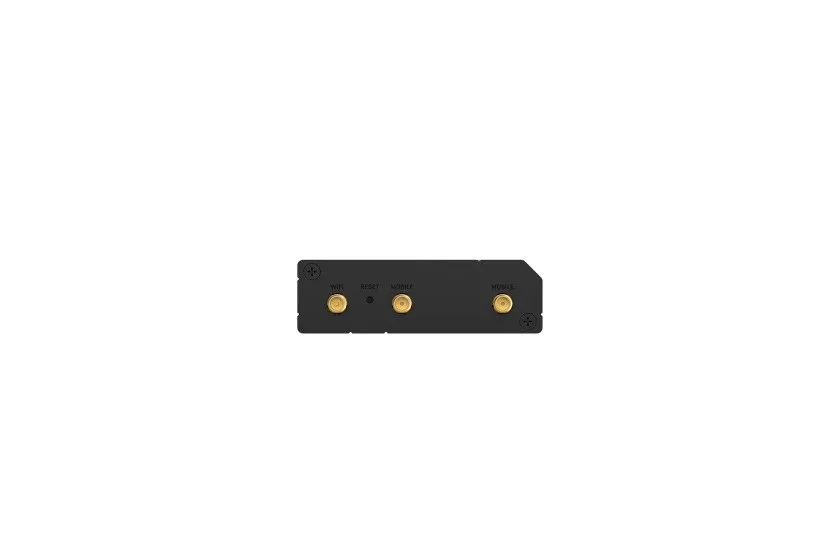

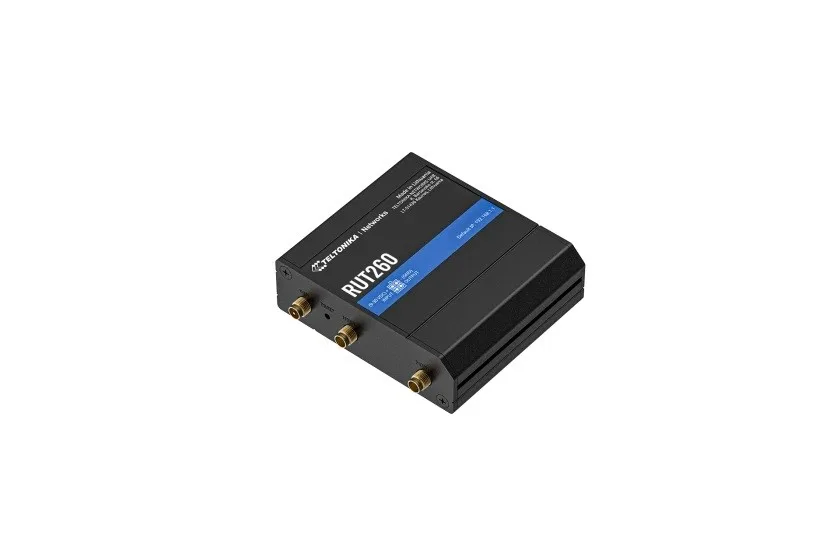

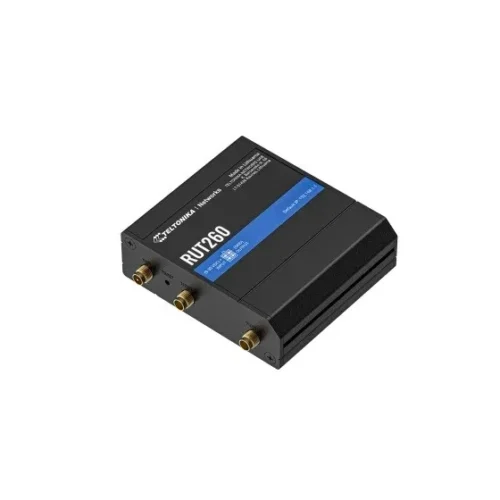

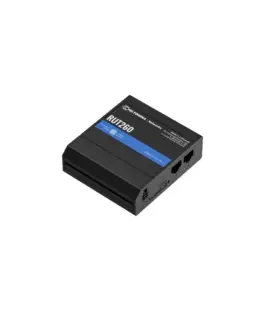

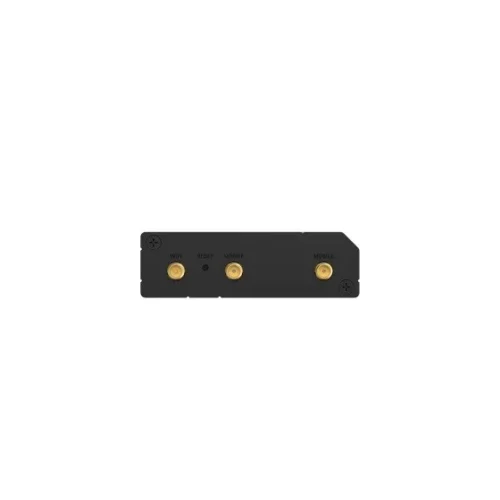

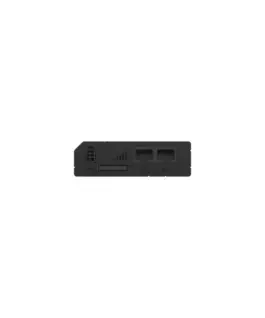

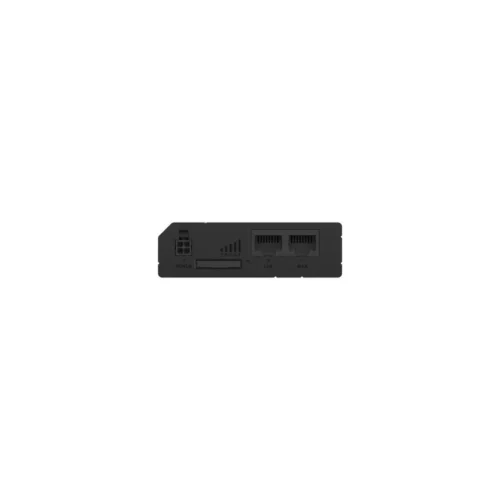

TELTONIKA Router RUT260 4G, 3G, 2G, WIFI, 2×10/100 Mbps Ethernet

TELTONIKA Router RUT260 4G, 3G, 2G, WIFI, 2×10/100 Mbps Ethernet

Model:

RUT260

Description:

RUT260 is a Category 6 LTE router from Teltonika Networks with WAN failover functionality. It combines the key features of the RUT240 and RUT360 router, is powerful, lightweight and supports a wide range of industrial protocols including MQTT, SNMP, Modbus and more.

Type: GSM 3G/4G
Data transmission: LTE
Aero2 support: No
Standards: IPv6
Standards: IPv4
Standards: 802.11n
Standards: 802.11b
Standards: 802.11g
Number of antennas: 3
Antenna: Detachable external
Security:

• Authorization: Shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, blocking login attempts from the IP address.
• Mobile package limit control: Mobile data limit, customizable period, start time, warning limit, phone number.
• VLAN: VLAN separation based on port and VLAN tag.
• Attack Prevention: DDoS attack prevention (SYN flood attack protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scanning prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
• Firewall: Pre-configured firewall rules can be enabled via web interface (WebUI), unlimited firewall configuration via command line interface (CLI), demilitarized zone (DMZ), network address translation (NAT), NAT-T.
• Web Filter: Blacklist to block unwanted websites, Whitelist to define only allowed websites.
• Access control: Flexible access control to TCP, UDP, ICMP packets, MAC address filter.

Management, monitoring, configuration:

• WEB UI: Web UI (HTTP/HTTPS), status, configuration, firewall software (FW) update, command line interface (CLI), troubleshooting, event log, system log.
• FOTA: Software update from the server, automatic notifications.
• SSH: SSH (v1, v2).
• SMS: SMS status, SMS configuration, sending/reading SMS via HTTP POST/GET.
• Connection: Reboot, status, enable/disable mobile data, enable/disable output, receive/disconnect clock from timer, enable/disable Wi-Fi.
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
• SNMP: SNMP (v1, v2, v3), SNMP trap.
• JSON-RPC: Management API over HTTP/HTTPS.
• MODBUS: MODBUS TCP status/control.
• RMS: Teltonika Remote Management System (RMS).

Special functions:
I/O ports: 1 x 10/100 Mbit/s
I/O ports: 1 x 10/100 Mbit/s WAN
SIM card: Standard
Power supply:

Input voltage range: 9 – 30 VDC, reverse polarity protection, overvoltage/surge protection.

Software:
Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40 to 75 degrees Celsius
• Operating humidity: 10% to 90% (non-condensing)
• Ingress protection class: IP30

Accessories included:

• RUT260 router
• 9W power supply
• 2 x LTE antennas (swivel, SMA male)
• 1 x Wi-Fi antenna (rotatable, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM adapter set
• QSG (Quick Start Guide)

Color: Black
Weight: 130 gram
Dimensions:

83 x 25 x 74 mm

Other features:

Housing material: aluminum housing, plastic panels

Designation:
