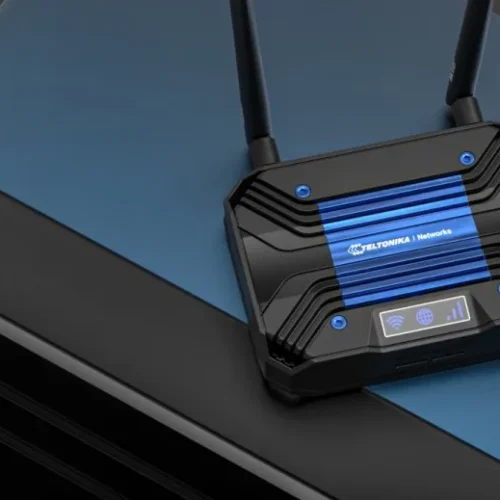

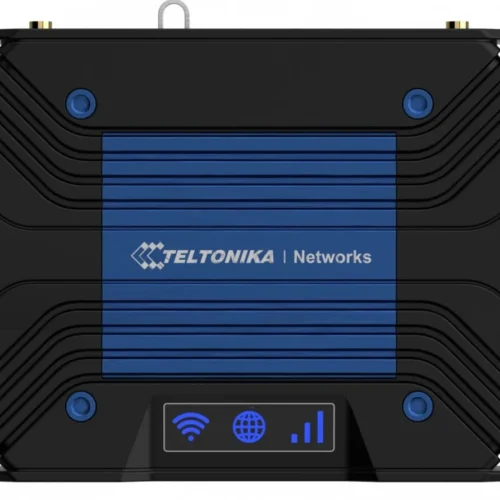

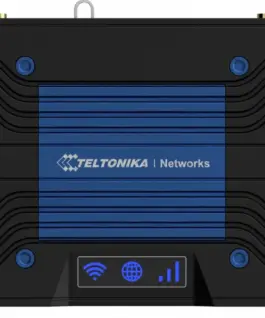

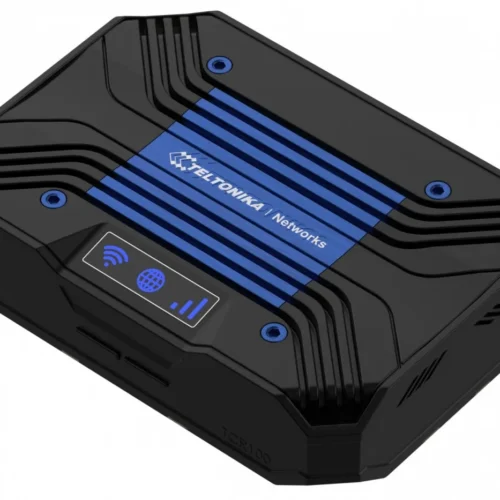

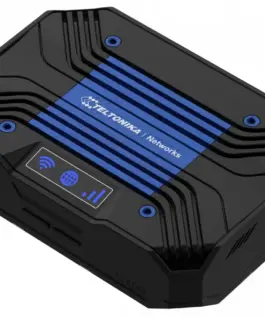

TELTONIKA Router LTE TCR100 (Cat 6), 3G, Wifi, 1xEthernet

Model:

TCR100

Description:

TCR100 router

This router was created based on experience gained in the field of industrial IoT to ensure reliable communication at home and in offices.

Thanks to 4G LTE-A technology, you can use the TCR100 as a primary or backup connection source.

Dual Ethernet and Dual-band Wi-Fi interfaces allow you to easily connect multiple devices. TCR100 features connectivity indicators, Wi-Fi and Wi-Fi Protected buttons for quick and simple setup

.Reliable, secure and easy to use – TCR100 is the perfect choice for any home network.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: LTE
UMTS network: 850 MHz
UMTS network: 800 MHz
UMTS network: 2100 MHz
UMTS network: 1800 MHz
LTE network: 2600 MHz
LTE network: 2300 MHz
LTE network: 2500 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1500 MHz
LTE network: 700 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
Aero2 support: No
Standards: 802.3u
Standards: 802.3
Standards: 802.11a
Standards: 802.11b
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11e
Standards: 802.11r
Standards: 802.11s
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Number of antennas: Two connectors
Antenna: Detachable external
Security:

• Authetication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Tag based VLAN separation
• Mobile quota control: Option to set custom data limit
• WEB filter: Blacklist for blocking unwanted out websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Network: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec
• Unique network features: VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover
• Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Settings: Update FW without losing current configuration
• Management and monitoring: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Special functions:
Card reader: None
I/O ports: 1 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s WAN
I/O ports: 1 x 10/100 Mbit/s
SIM card: Mini
Power supply:

9 – 30 VDC, 4-pin DC connector

Software:

RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Accessories included:

• TCR100 router
• 18W power supply
• 2 x LTE Antenna (rotatable, SMA male)
• Ethernet cable (1.5 m)
• SIM adapter kit
• QSG (Quick Start Guide)
• RMS leaflet

Color: Aluminium
Weight: 376 gram
Dimensions:

150 x 37 x 105 mm

Other features:

• 4G network (LTE) – Cat 6, DC-HSDPA, HSUPA, WCDMA
• Processor: Qualcom MIPS 24Kc CPU, 650MHz
• RAM: 128 MB, DDR2 RAM
• Internal memory: 16 MB, SPI Flash
• Buttons: Wi-Fi On/Off, Activate WPS, Reset
