TELTONIKA Router LTE RUTX12 (Cat 6), WiFi, BLE

TELTONIKA Router LTE RUTX12 (Cat 6), WiFi, BLE

Model:

RUTX12

Description:

RUTX12 router

RUTX12 is a very powerful tool for LTE Cat 6 communication. Equipped with two LTE Cat 6 modems working together, they can provide speeds of up to 600 Mb/s with load balancing function. 5 Gigabit Ethernet interfaces, 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces, and dual SIM slots make this product indispensable in important solutions where uninterrupted connectivity is a must.

Type: GSM 3G/4G
Data transmission: Bluetooth
Data transmission: LTE
Data transmission: UMTS
UMTS network: 2100 MHz
UMTS network: 850 MHz
UMTS network: 900 MHz
UMTS network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2500 MHz
LTE network: 2600 MHz
LTE network: 700 MHz
LTE network: 1800 MHz
LTE network: 1500 MHz
LTE network: 900 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 2300 MHz
Aero2 support: No
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11r
Standards: 802.3
Standards: 802.3az
Standards: 802.3u
Standards: 802.11e
Standards: 802.11b
Standards: 802.11a
Standards: 802.11g
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz

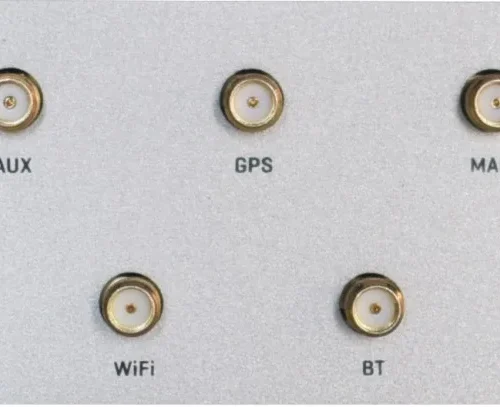

Number of antennas: 8-connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port based and tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list (planned), Data/SMS limits
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Network: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• HotspotL External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot Platforms: Iron WiFi, Hotspot System, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai

Special functions:
Card reader: None
I/O ports: 5 x 10/100/1000 Mbit/s
I/O ports: 2 x SIM card slot
I/O ports: 1 x USB 2.0
SIM card: Mini
Power supply:

2 x external SIM slot (2FF)

Software:

Operating system RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

Operating temperature range: -40 °C to 75 °C

Accessories included:

• RUTX12 router
• 4W power supply
• 4 x LTE antenna (rotatable, SMA male)
• 2 x WiFi antenna (magnetic mounting, RP-SMA male, 1.5 m cable)
• GNSS antenna (glued, SMA male, 3m cable)
• Bluetooth antenna (magnetic mounting, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• Quick Start Guide
• RMS leaflet

Color: Aluminium
Weight: 540 gram
Dimensions:

132 x 44 x 95 mm

Other features:

• Network support: 2 x 4G/LTE (Cat 6), 3G
• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MB Flash, 256 MB RAM
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Bluetooth: 4.0 (Low energy)
• Housing: Aluminum, can be mounted on a DIN rail and can be grounded
