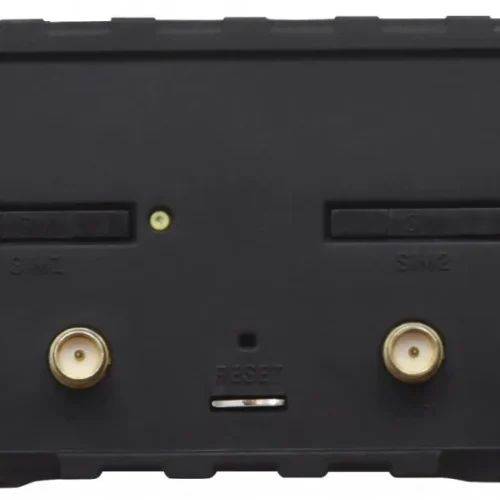

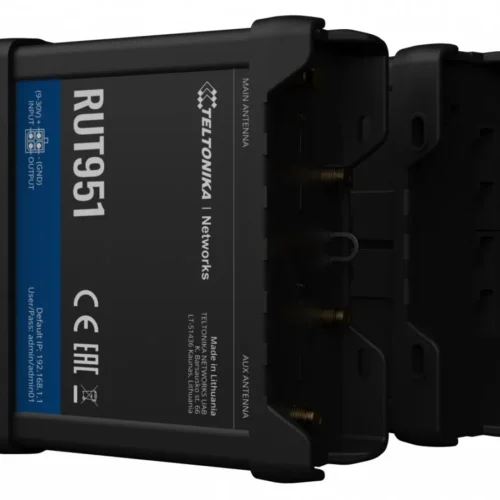

TELTONIKA Router LTE RUT951 (Cat4), 3G, 2G, WiFi, Ethernet

TELTONIKA Router LTE RUT951 (Cat4), 3G, 2G, WiFi, Ethernet

Model:

RUT951

Description:

RUT951 router

The RUT951 router inherited the best features of the 950 model, which was one of the most popular Teltonika Networks cellular routers.

The device has dual SIM 4G cellular connectivity combined with Wi-Fi and 4 Ethernet interfaces, thus meeting the needs of a variety of IoT solutions.

Automatic WAN failover to an available backup connection ensures network continuity and eliminates downtime.

Powered by RutOS that offers customization options for professional use, automation features and the highest level of security for your solution.

Compatibility with Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: LTE
Data transmission: GPRS
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 900 MHz
UMTS network: 850 MHz
LTE network: 800 MHz
LTE network: 2300 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 850 MHz
LTE network: 2500 MHz
Aero2 support: No
Standards: 802.11g
Standards: 802.3u
Standards: 802.3
Standards: 802.11e
Standards: 802.11b
Standards: 802.11n
Operating frequency: 2,4 GHz
Number of antennas: Four connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Mobile features: automatic APN, band lock, SIM switch, operator black/white list, data/SMS limits
• Network: failover (network backup), VLAN, QoS, load balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
• Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link control
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: Outdoor/Inner Radius, SMS OTP, MAC Authentication, Walled Garden
• Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
• SMS functions: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, automatic SMS reply, SMPP
• Services: DDNS, VRRP, Wake On Lan (WOL), network filter, UPNP, traffic logging

Special functions:
Card reader: None
I/O ports: 1 x 10/100 Mbit/s WAN
I/O ports: 3 x 10/100 Mbit/s
I/O ports: 2 x SIM card slot
SIM card: Mini
Power supply:

4pin connector, 9-30 VDC

Software:

RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% non-condensing

Accessories included:

• RUT951 router
• 9W power supply
• 2 x LTE antenna (swivel, SMA male)
• 2 x WiFi antenna (swivel, RP-SMA male)
• SIM Adapter kit
• Ethernet cable (1.5 m)
• RMS leaflet
• Quick start guide

Color: Black
Weight: 268 gram
Dimensions:

110 x 50 x 100 mm

Other features:

• Network support: 4G/LTE (Cat 4), 3G, 2G
• CPU: Mediatek MIPS 24Kc 580MHz
• Storage: 16 MB Flash, 128 MB RAM
• LED status: Connection type, 5 x signal strength, 4 x Ethernet, Power
• Housing: Aluminum, can be mounted on a DIN rail
