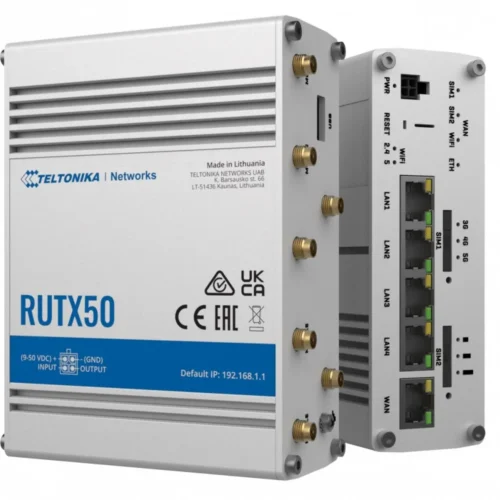

TELTONIKA Router 5G RUTX50 Wifi, 4xLAN, USB2.0

TELTONIKA Router 5G RUTX50 Wifi, 4xLAN, USB2.0

Model:

RUTX50

Description:

RUTX50 router

RUTX50 is a modern, multi-network industrial router offering 5G mobile communication for high-speed applications with large amounts of data.

5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable data transfer with ultra-low latency.

The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, provides the ability to adapt to future upgrades and expansions.

RUTX50 ships with RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is also Remote Management System (RMS) compatible, for optimized remote management and monitoring capabilities of large fleets of devices.

Type: v
Data transmission: LTE
Data transmission: UMTS
UMTS network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 850 MHz
LTE network: 700 MHz
LTE network: 3600 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 2500 MHz
LTE network: 2600 MHz
LTE network: 3400 MHz
Aero2 support: No
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11r
Standards: 802.11s
Standards: 802.3az
Standards: 802.3u
Standards: 802.11b
Operating frequency: 6 GHz

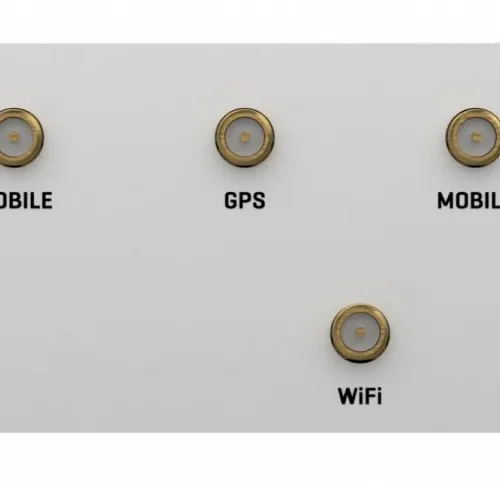

Number of antennas: Seven connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention
• (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network:: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Management and monitoring: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Cloud: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS: NMEA forwarding, AVL, Geofencing

Special functions:
Card reader: None
I/O ports: 1 x USB 2.0
I/O ports: 2 x SIM card slot
I/O ports: 5 x 10/100/1000 Mbit/s
SIM card: Mini
Power supply:

4-pin socket, 9-50 VDC

Software:
Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Accessories included:

• RUTX50 router
• 18W power supply
• 4 x mobile antenna (rotatable, SMA male)
• 2 x WiFi antenna (magnetic mounting, RP-SMA plug, 1.5 m cable)
• GNSS antenna (adhesive, SMA male, 3m cable)
• Ethernet cable (1.5 m)
• SIM adapter kit
• QSG (Quick Start Guide)

Color: Aluminium
Weight: 533 gram
Dimensions:

132 x 44.2 x 95.1 mm

Other features:

• Network support: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600Mbps UL (2×2), 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL, 3G – 42Mbps DL, 5.76Mbps UL
• CPU Quad-core ARM Cortex A7, 717 MHz
• Flash memory: 256 MB
• RAM: 256 MB
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
