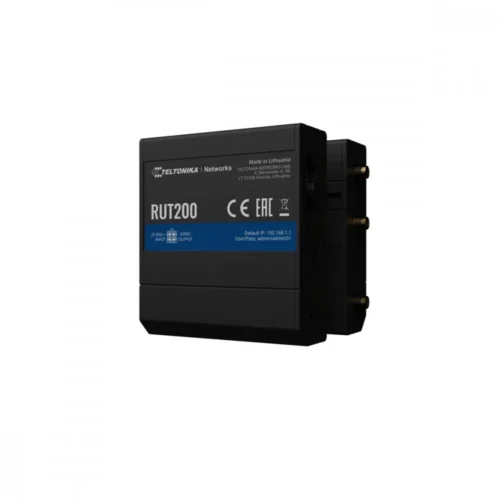

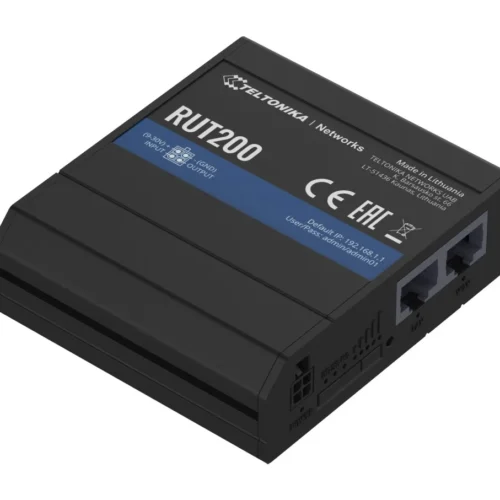

TELTONIKA Router 4G/LTE RUT200 (Cat 4), 3G, 2G, WIFI

TELTONIKA Router 4G/LTE RUT200 (Cat 4), 3G, 2G, WIFI

Model:

RUT200

Description:

RUT200 router

RUT200 is one of the most popular routers on the market. Equipped with 4G LTE connectivity, Wi-Fi and two Ethernet ports, the model is perfect for quickly setting up primary and backup connectivity with remote management capabilities. Due to its compact size, industrial design and I/O, this model is well suited for manufacturing, automation, transportation and other industrial applications that require critical connectivity in rigorous environments.

Type: GSM 3G/4G
Data transmission: GPRS
Data transmission: UMTS
Data transmission: LTE
GSM network: 900 MHz
GSM network: 1900 MHz
UMTS network: 850 MHz
UMTS network: 900 MHz
UMTS network: 2100 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 1800 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 2500 MHz
Aero2 support: No
Standards: 802.11g
Standards: 802.3u
Standards: 802.3
Standards: 802.11e
Standards: 802.11b
Standards: 802.11n
Operating frequency: 2,4 GHz
Number of antennas:
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• Mobile quota control: Set up custom data limits for the SIM card
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• SMS features
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

Special functions:
Card reader: None

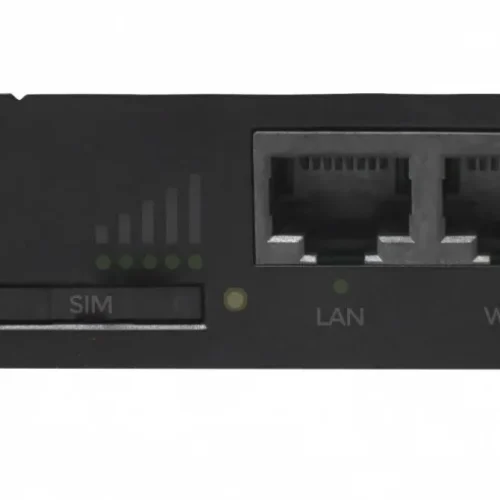

I/O ports: 1 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s WAN
I/O ports: 1 x 10/100 Mbit/s
SIM card: Not applicable
Power supply:

4-pin socket, 9-30 VDC

Software:

RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Accessories included:

• RUT200 router
• 9W power supply
• 2 x LTE antenna (screwable, SMA male connector)
• WiFi antenna (screwable, RP-SMA male angled connector)
• Quick start guide

Color: Black
Weight: 125 gram
Dimensions:

83 x 25 x 74 mm

Other features:

• Network support: 4G/LTE (cat. 4), 3G, 2G
• Processor: Mediatek MIPS 24Kc 580 MHz
• Memory: 16 MB Flash
• Memory: 128MB RAM
• Antenna connectors: 2 x SMA (cellular), 1 x RP-SMA for WiFi
• Housing: Aluminum housing with the possibility of mounting on a DIN rail, plastic panels
