TELTONIKA Modem LTE TRM240 (Cat 1), 3G, 2G, USB

TELTONIKA Modem LTE TRM240 (Cat 1), 3G, 2G, USB

Description:

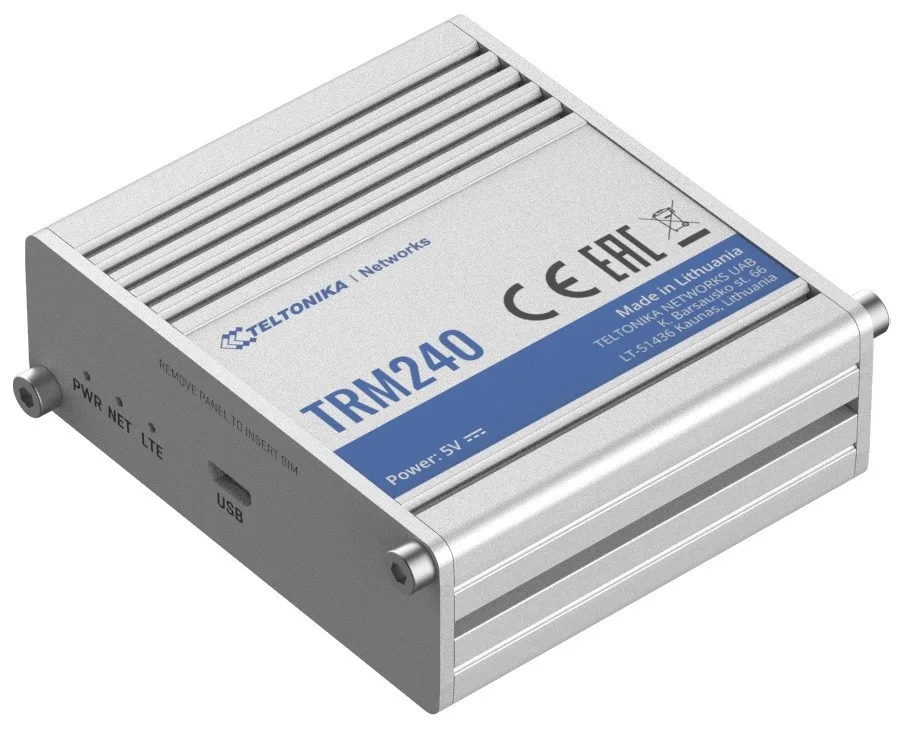

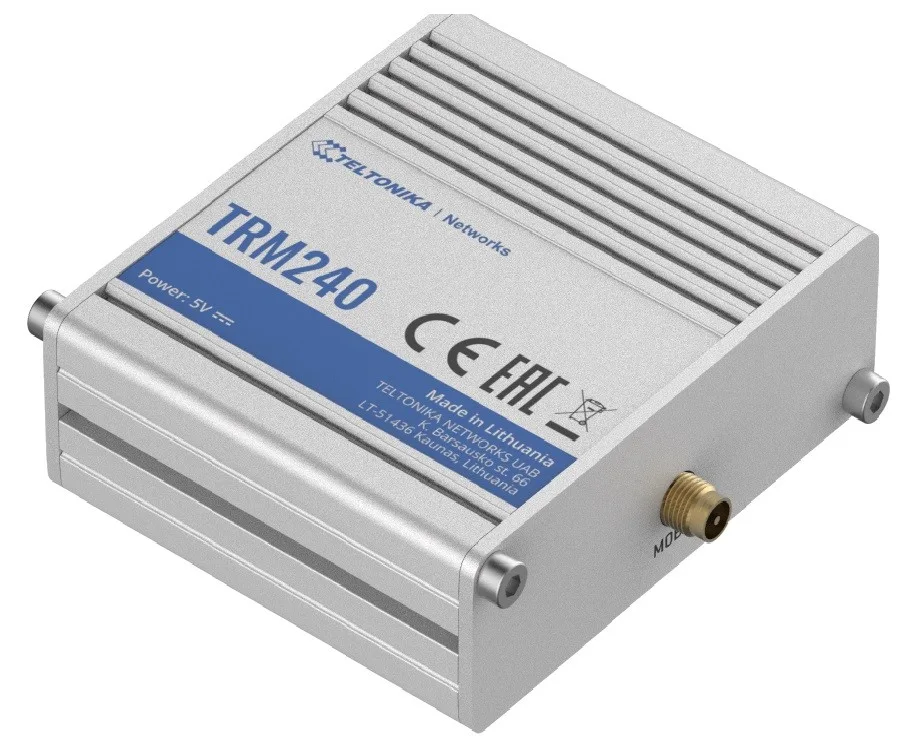

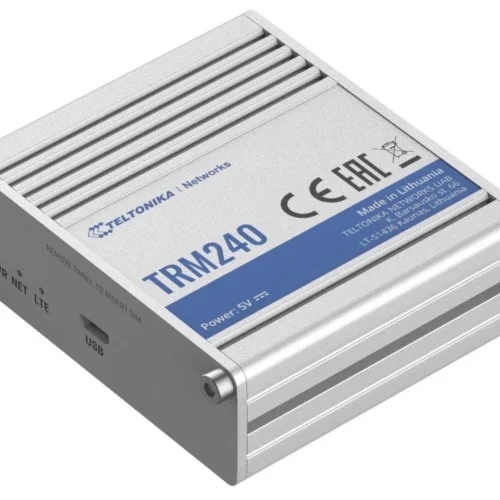

TRM240 LTE MODEM

The industrial LTE Cat 1 modem with a durable aluminum housing is a compact and easy-to-use device that can provide cellular functionality to equipment in all market segments.

It is backward compatible with 3G and 2G, making it the optimal choice when it comes to large-scale connectivity upgrades for industrial or public infrastructure. It offers a long and stable life cycle and low energy consumption, which is important for IoT projects.

TRM240 is equipped with a USB interface for power and communication.

Interface: USB
Data transmission: UMTS
Data transmission: LTE
Data transmission: GPRS
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 900 MHz
LTE network: 2100 MHz
LTE network: 2500 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
SIM card: Mini
Antenna: Detachable external
Card reader: None
Aero2 support: No
Supported operating systems: Windows 7
Supported operating systems: Linux
Supported operating systems: Windows 8
Supported operating systems: Windows 8.1
Supported operating systems: Windows 10
Supported operating systems: Android
Accessories included:

• TRM240
• 1 x LTE rotatable antenna (SMA male)
• Micro-USB cable (0.8 m)
• Assembly key
• Quick Start Guide

Color: Aluminium
Dimensions:

74.5 x 25 x 64.5 mm

Weight: 131 gram
Environment requirements:

• Operating temperature range: -40 °C to 75 °C
• Humidity range: 10% to 90% non-condensing

Other features:

• Network support: LTE (Cat1) / 3G / 2G
• Power supply: 5V via microUSB
• Power Consumption: 3.2W Max
• Communication interface: microUSB
• LED status: power, network, LTE status
• Housing material: Aluminum
• Degree of protection: IP30
• Control via AT commands: 3GPP TS27.007, AT commands
