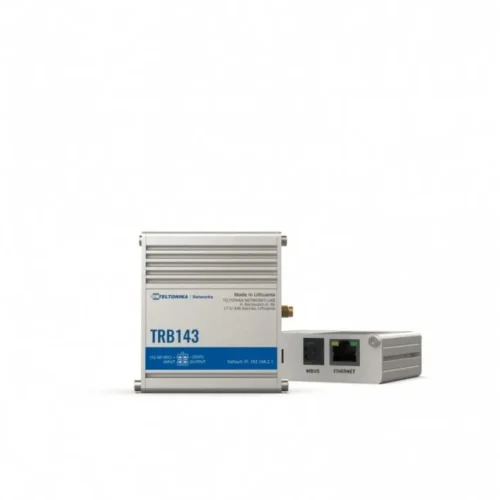

TELTONIKA Gateway LTE TRB143 (Cat 4), 3G, 2G, M-BUS

TELTONIKA Gateway LTE TRB143 (Cat 4), 3G, 2G, M-BUS

Model:

TRB143

Description:

Gate TRB143

The industrial gateway has been designed specifically for telemetry and media monitoring applications. It is equipped with an M-Bus interface, cellular connectivity, one Gigabit Ethernet port and a pair of digital I/O, making it easily applicable to countless environmental monitoring scenarios. Remote monitoring and configuration is easy and secure with software-based security features such as pre-configured Firewall and Open VPN, as well as compatibility with FOTA, SMS control and Teltoni-ka Networks’ own remote management system.

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: UMTS
Data transmission: GPRS
GSM network: 900 MHz
GSM network: 1900 MHz
UMTS network: 900 MHz
UMTS network: 2100 MHz
LTE network: 2500 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 2600 MHz
Aero2 support: No
Standards: 802.3u
Standards: 802.11e
Standards: 802.3
Standards: 802.3az
Number of antennas: One connector
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

• Network: Routing, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, SSHFS
• VPN: OpenVPN, GRE, IPsec, PPTP, L2TP, SSTP, Stunnel, DMVPN, WireGuard, ZeroTier
• Management and monitoring: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, Modbus, RMS
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud: RMS, Clouds of things, ThingWorx, Cumulocity, Azure IoT Hub

Special functions:
Card reader: None
I/O ports: 1 x 10/100/1000 Mbit/s
I/O ports: 1 x SIM card slot
I/O ports: 1 x M-BUS
SIM card: Mini
Power supply:

4pin connector, 12-30 VDC

Software:

RutOS (OpenWrt based Linux OS)

System Requirements:
Accessories included:

• TRB143
• 18W power supply
• HEX key
• 1.5M LAN Cable
• Quick start guide
• LTE antenna (magnetic, SMA male connector, 3m cable)
• QSG (Quick Start Guide)
• Quick start guide

Color: Aluminium
Weight: 145 gram
Dimensions:

74.5 x 25 x 64.4 mm

Environment requirements:

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing

Certificates:

• CB
• CE
• UKCA
• RoHS
• REACH
• WEEE

Other features:
Designation:
