TELTONIKA Gateway LTE TRB142 (Cat 1), 3G, 2G, USB

TELTONIKA Gateway LTE TRB142 (Cat 1), 3G, 2G, USB

Model:

TRB142

Description:

LTE TRB142 gateway

TRB142 is a very small, lightweight, energy-efficient industrial gateway equipped with a widely used RS232 interface for remote control of devices and an LTE Cat 1 module for reliable communication and OpenWRT-based software. It can be easily adapted to various needs.

Like other products in the TRB series, it offers a wide range of software features such as SMS management, VPN, IPsec, firewall and FOTA support.

This gateway is durable, has multiple power source choices, and works perfectly with the Teltonika Networks Remote Control System (RMS).

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: UMTS
Data transmission: GPRS
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 900 MHz
UMTS network: 2100 MHz
LTE network: 900 MHz
LTE network: 700 MHz
LTE network: 2500 MHz
LTE network: 2100 MHz
LTE network: 1800 MHz
LTE network: 800 MHz
Aero2 support: No
Number of antennas: One connector
Antenna: Detachable external
Antenna gain: 2 dBi
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI, NAT, NAT-T
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

LTE TRB142 gateway

TRB142 is a very small, lightweight, energy-efficient industrial gateway equipped with a widely used RS232 interface for remote control of devices and an LTE Cat 1 module for reliable communication and OpenWRT-based software. It can be easily adapted to various needs.

Like other products in the TRB series, it offers a wide range of software features such as SMS management, VPN, IPsec, firewall and FOTA support.

This gateway is durable, has multiple power source choices, and works perfectly with the Teltonika Networks Remote Control System (RMS).

Special functions:
Card reader: None
I/O ports: 1 x micro USB

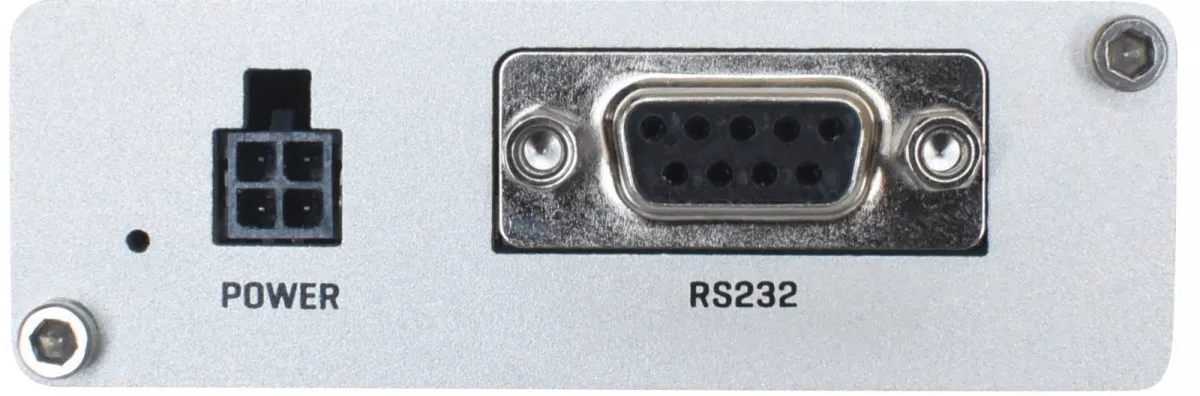

I/O ports: 1 x Console port (RS-232)
I/O ports: 1 x SIM card slot
SIM card: Mini
Power supply:

4 pin connector, 9-30 VDC

Software:

RutOS

System Requirements:
Accessories included:

• TRB142
• EU power supply
• LTE antenna (magnet mounting, SMA male, 3m cable)
• Micro-USB cable (0.8 m)
• Assembly key
• Quick start guide

Color: Aluminium
Weight: 135 gram
Dimensions:

75 x 25 x 65 mm

Environment requirements:

• Operating temperature range: -40° C to 75° C
• Humidity during operation: 10-90% non-condensing

Other features:

• Network support: 4G/LTE (Cat 1), 3G, 2G
• CPU: Qualcomm, ARM Cortex A7, 1.2 GHz
• Memory: 512 MB Flash (70 MB free), 128 MB RAM (50 MB free)
• Status LED: 3 x network type, 5 x signal strength, 1 x power supply
• Housing: Aluminum with the option of mounting on a DIN rail
• Degree of protection: IP30
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet

Designation:
