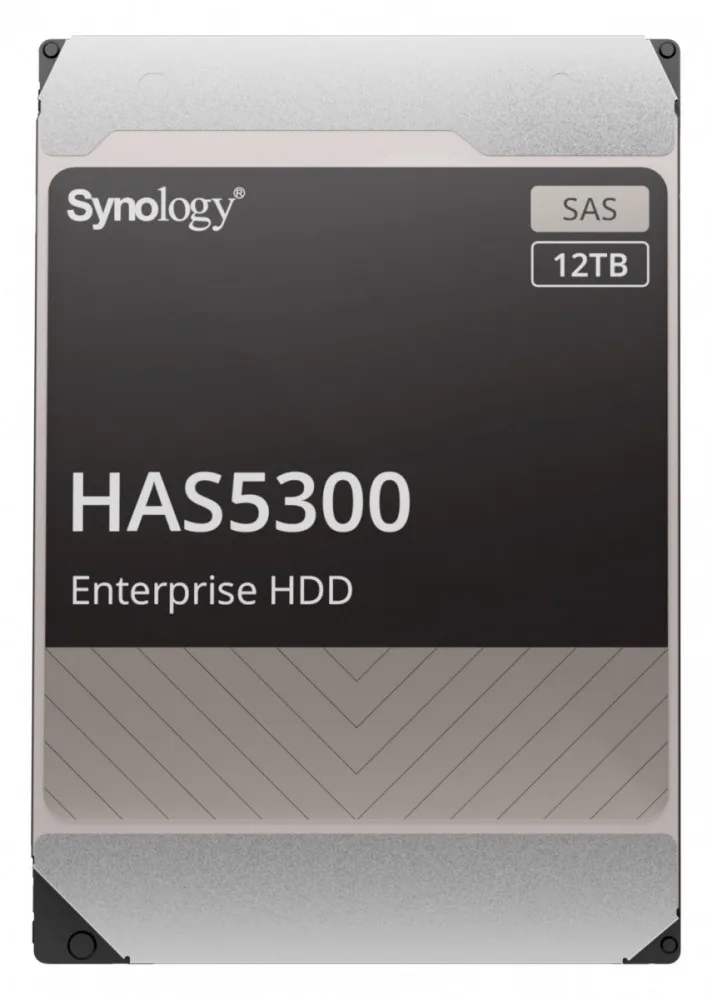

Synology HDD drive SAS 12TB HAS5300-12T 3,5 inches 12Gb/s 512e 7,2k

Model:

HAS5300-12T

Important:

Description:

3.5″ SAS Hard Disk Drive HAS5300

Enterprise SAS HDD for Synology systems

Designed to deliver the highest performance and reliability for Synology systems

Unparalleled integration with DSM and Synology hardware enables HAS5300 SAS HDDs to perform reliably in enterprise environments. HAS5300 drives have passed 200,000 hours of rigorous testing on Synology hardware, have an average time to failure of 2.5 million hours, and are backed by Synology’s 5-year limited warranty.

Server used by businesses

HAS5300 series drives use low latency SAS protocol. Combined with Synology’s high-performance and scalable SA and UC series solutions, they provide mission-critical tasks with access to reliable and fast storage.

Faster return to maximum performance

Built on two decades of storage expertise, Synology HAS5300 drives include firmware optimised for mission-critical tasks. They enable Synology systems to repair degraded RAID arrays up to 27% faster than drives of similar class and capacity.

Validation

Rigorous testing and compliance verification ensure maximum reliability of Synology systems even for the most demanding tasks.

Simplified maintenance

Drive firmware updates are provided with DSM updates, making it easy for IT teams and ensuring drives are up to date with the latest firmware.

Reliability

An estimated time to failure of 2.5 million hours, support for workloads of up to 550TB per year and persistent write cache technology protect data integrity.

Disk type: HDD
Form factor (width): 3,5“ (LFF)
Drive type: Internal
Additional part number:
HDD capacity: 12 TeraByte
HDD interface: SAS 12 Gb/s
Rotational Speed: 7200 RPM
Buffer: 256 MegaBajt
Sector size: 512e
Mean time between failures (MTBF): 2500000 Hour
Power consumption: 7.8 Watt
Power consumption (standby): 4.36 Watt
Height: 26.1 Millimetre
Width: 101.85 Millimetre
Depth: 147 Millimetre
Weight: 720 gram
Other features:

• Interface speeds: 12.0 Gbps, 6.0 Gbps, 3.0 Gbps, 1.5 Gbps
• Maximum sustained data transfer rate (typical): 242 MiB/s
• Load rating: 550 TB of transferred data per year
• Certifications: CE, EAC, BSMI, RCM, KC, ICES, UKCA, TUV, UL, RoHS

Compatible with:

• HD Series: HD6500
• SA series: SA3600, SA3400, SA3200D
• UC series: UC3200
• 17 series: RS18017xs+
• 16 series: RS18016xs+
