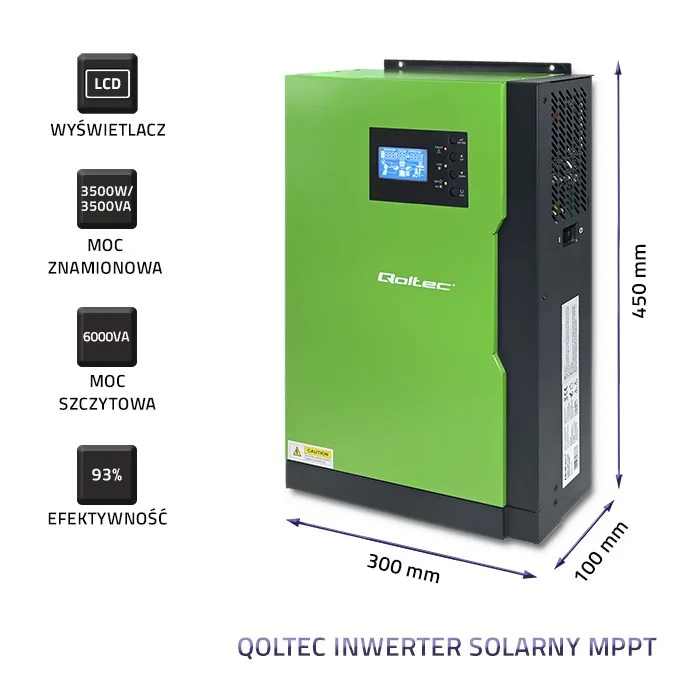

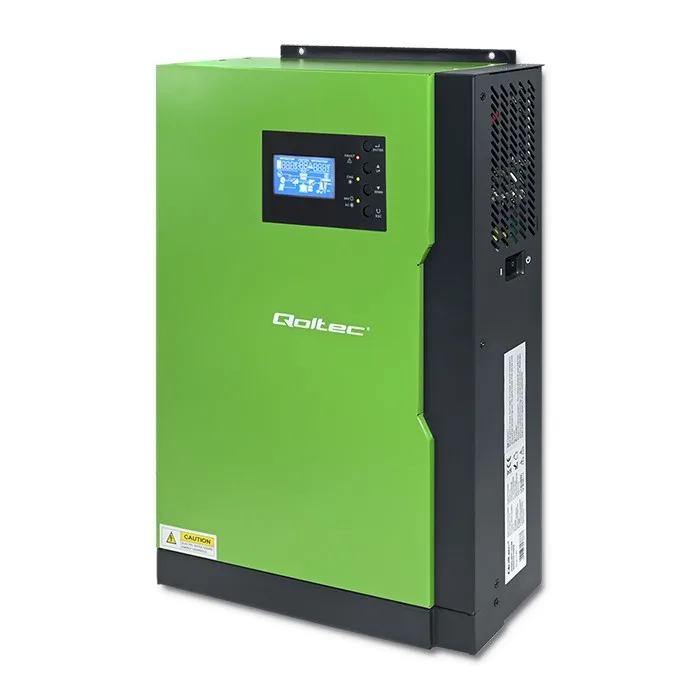

Qoltec Hybrid solar inventer Off Grid 3,5kW, 100A

Qoltec Hybrid solar inventer Off Grid 3,5kW, 100A

Description:

How does the off-grid hybrid inverter work?

The efficiency of a solar PV system depends on the selection of the right inverter, or solar inverter. The inverter performs a key function in this system, changing the DC current generated by the solar PV panels into AC current used by household appliances.

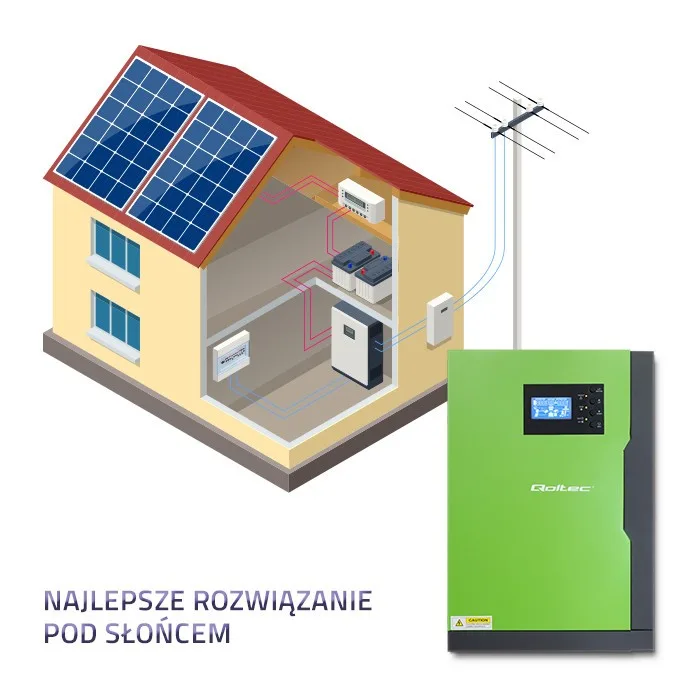

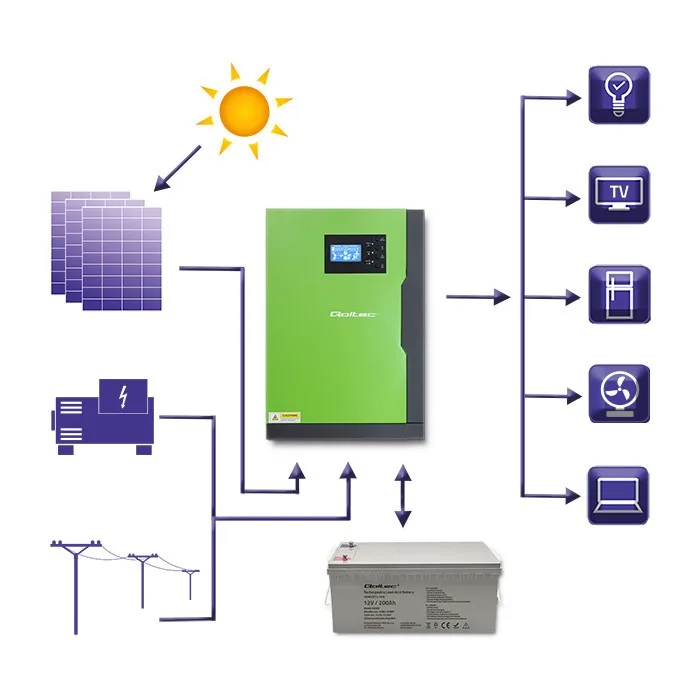

The off-grid hybrid inverter combines the solar PV system, energy storage and the power grid. During the day, it charges the energy storage from the photovoltaic panels. The energy storage unit powers household appliances from the stored energy during the day, and when the batteries are discharged, it draws energy from the grid.

The inverter works in off-grid mode, using excess solar energy to power consumers and charge the battery. In the event of an emergency, current is drawn from the solar PV system to the energy storage and can safely and uninterruptedly ensure the continuous operation of our appliances.

Why should you choose a hybrid inverter?

• Pure sine wave inverter,
• automatic restart during power restoration,
• easy-to-read multifunction LCD display,
• 100A MPPT charge controller,
• ability to be powered by mains or generator,
• ability to change AC/Solar charger priority settings via LCD display,
• intelligent charger design for optimal battery performance,
• configurable input voltage range for home appliances and personal computers using the settings on the LCD display panel,
• configurable battery charging current according to devices and personal computers via settings on the LCD display panel,
• protection against overload, overheating, overcharging and short circuit,
• cold start function,

Maximize the possibilities with MPPT technology

The battery charging inverter uses a state-of-the-art 100A MPPT charge controller to maximize the power drawn from the photovoltaic panels, using advanced maximum power point tracking technology.

Having this feature significantly affects the efficiency of the photovoltaic installation-they can maintain high power even in low sunlight conditions. In addition, the controller controls the battery operation and charging process and protects the battery from damage.

Multifunction LCD display

The product is equipped with a multifunctional, easy-to-use LCD display with control panel. Facilitates monitoring of the entire photovoltaic installation.

Allows you to configure the input voltage range for home appliances and personal computers or change the priority settings of the AC/Solar charger. In addition, the display records data and informs about failures, reacting accordingly if any of the parameters exceed the norm. If a fault occurs, the inverter shuts down.
