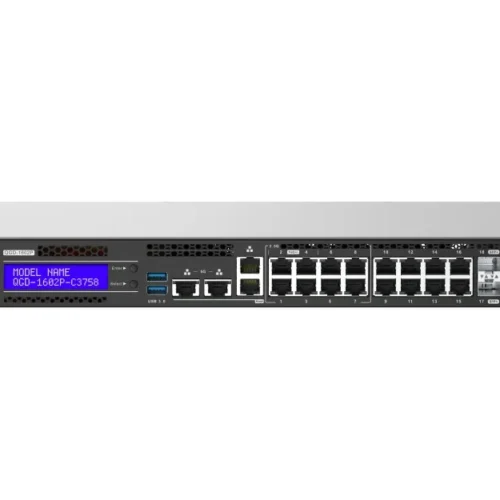

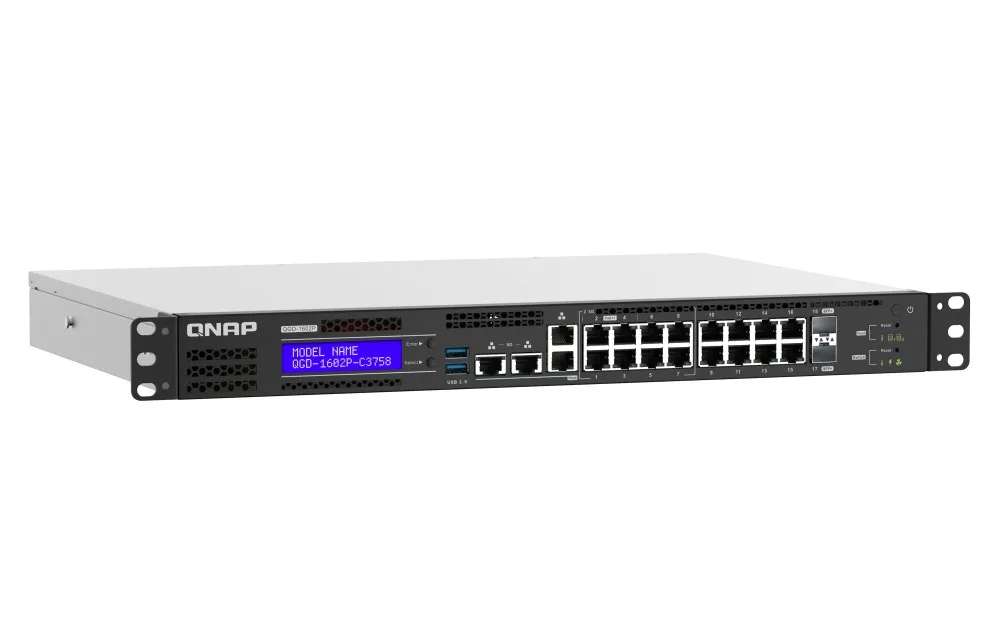

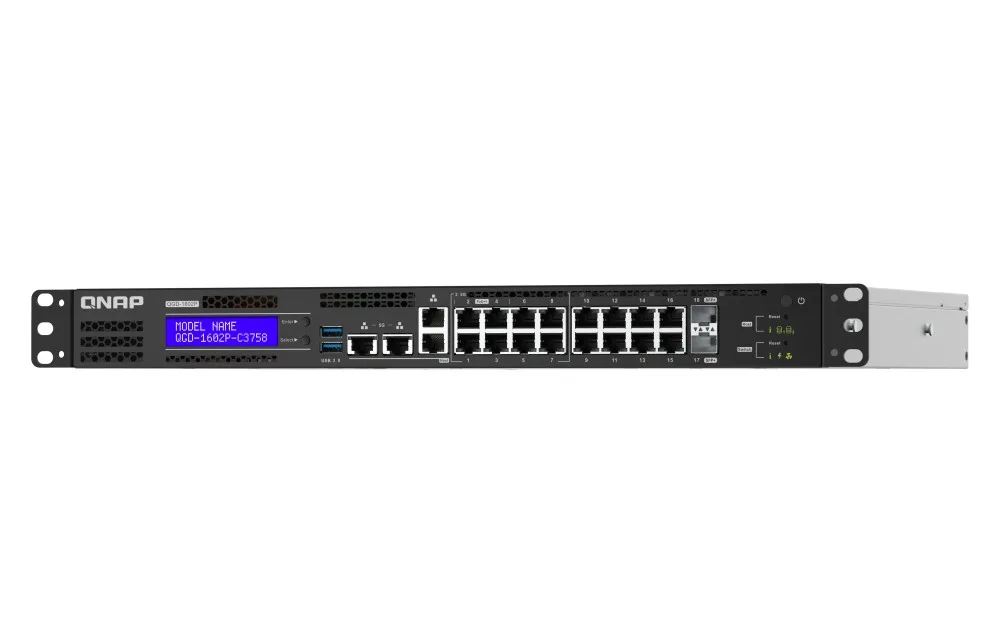

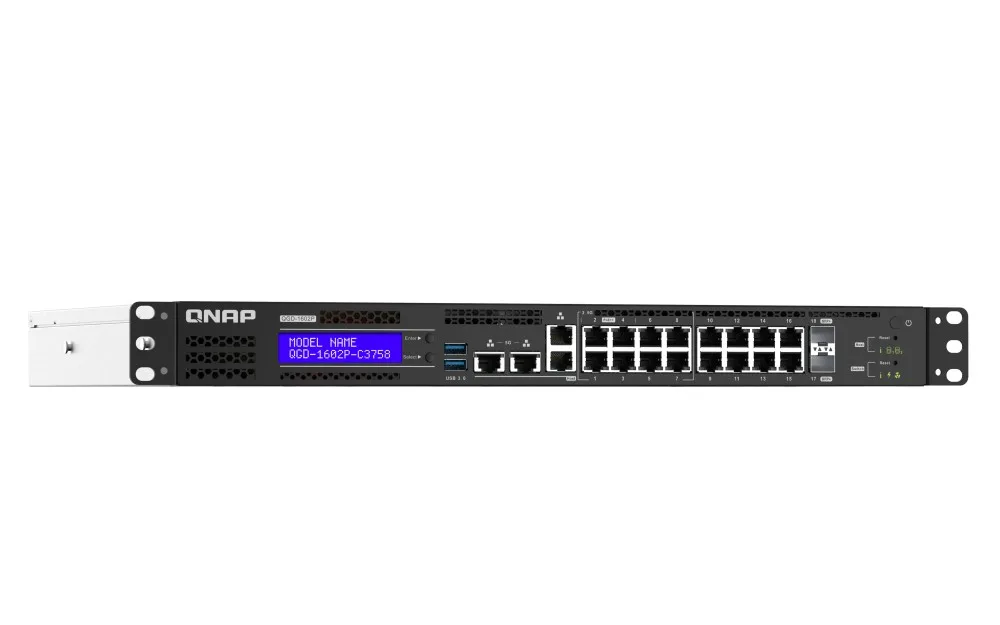

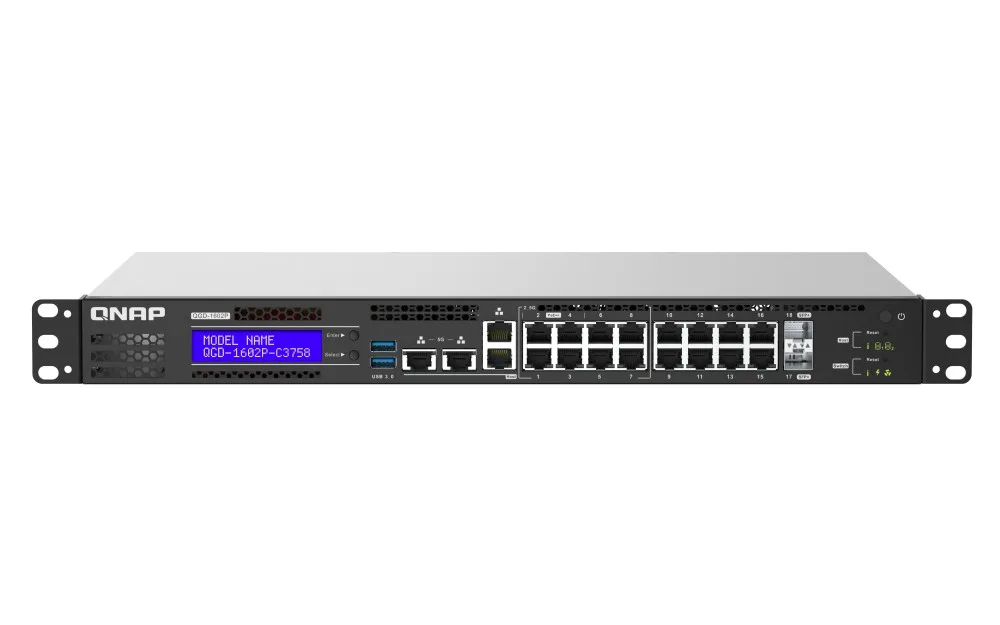

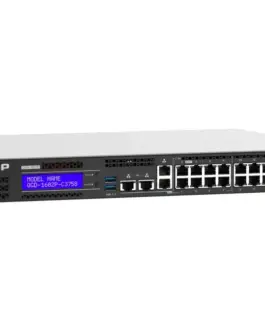

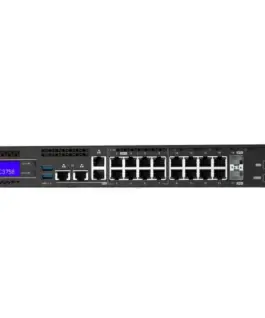

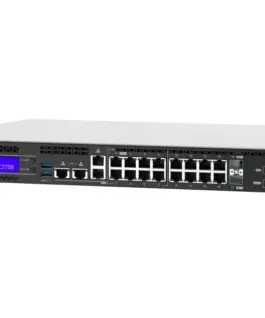

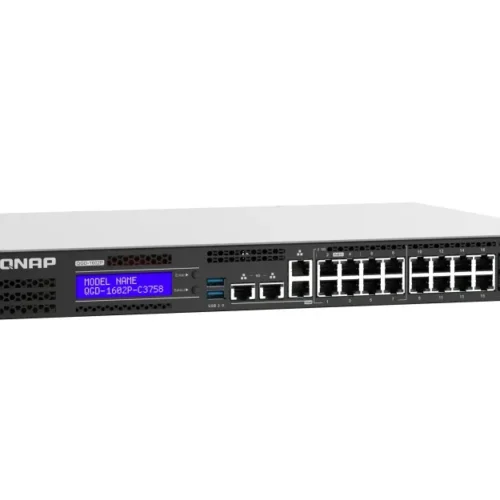

QNAP Managed switch QGD-1602P-C3758-16G-EU L2 PoE

QNAP Managed switch QGD-1602P-C3758-16G-EU L2 PoE

Description:

QGD-1602P

State-of-the-art PoE switch with 2.5GbE and 10GbE support for Wi-Fi 6 and SD-WAN solutions.

QNAP’s QGD-1602P is the world’s first managed PoE switch with virtual machine support. The QGD-1602P is equipped with 2.5GbE and 10GbE SFP+ ports and PoE output up to 90W, enabling the creation of a fast, high-power PoE network infrastructure for Wi-Fi 6 access points and routers. With a dual-processor design, the QGD-1602P uses 2.2 GHz multi-core Intel Atom processors with dual SATA drive bays to support virtual machines and QTS applications. The QGD-1602P not only supports IP surveillance, network security, wireless access point management, and storage expansion applications, but also combines QuWAN to build an SD-WAN infrastructure with other QNAP devices in multiple locations, enabling a durable and secure IT infrastructure. With 20GbE internal bandwidth and Intel QuickAssist Technology (Intel QAT), the QGD-1602P provides the high-performance transmission required for edge virtualization and IPsec VPN, and offers small and medium-sized enterprises a cost-optimized and centrally managed LAN deployment solution.

PoE++/PoE+

Compliance with IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. It offers 4 90W ports and 12 30W PoE Gigabit ports. Capable of providing a total power supply of 380W to meet high power device (PD) requirements and support intelligent PoE management features.

10GbE connectivity

Two 10GbE SFP+ ports provide computers, LAN switches and NAS servers with greater bandwidth, increasing performance for applications such as virtualization, 4K video editing and file sharing.

Layer 2 network

It provides comprehensive Layer 2 management features (e.g. VLAN, LACP, QoS IGMP Snooping and Wake-on-LAN) and user-friendly network management software. IT staff can effectively control network bandwidth and increase security using a web-based management interface.

2 M.2 PCIe slots

Use SSD drives as cache or in a storage pool to access files faster.

Flexible PCIe expansion

Two PCIe Gen3 x4 slots allow users to install 10GbE network cards, dual-port QM2 M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gb/s) cards, or wireless networking cards.

Mesh VPN

Hosting container applications and virtual machines with various operating systems. Flexible installation of QuWAN, virtual router, firewalls or wireless LAN management software for various network management applications.

Model QGD-1602P-C3758-16G



• 4 RJ45 2.5GbE 802.3bt 90W PoE ports
• 4 RJ45 2.5GbE 802.3at 30W PoE ports
• 8 RJ45 Gigabit 802.3at 30W PoE ports
• 2 10GbE SFP+ ports
• Intel Atom C3758 octa-core 2.2 GHz processor
• 16GB DDR4 RAM
• With support for hosting up to 6 virtual machines



Switch class: Managed
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: 8
Number of 10Gb ports: 2
Number of PoE ports (PoE & PoE+): 16
Number of PoE++ ports: 4
Number of SFP+ ports: 2
Throughput: 48 Gigabity na sek.
Forwarding rate: 96 Gigabity na sek.
MAC address table size: 32000
Support for Jumbo frames: Yes
Stackability: No
VLAN:

• VLAN configuration
• Port-based private VLAN
• IEEE 802.1Q-based VLAN

Supported protocols and standards:

• IEEE 802.3u 100Tx Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
• IEEE 802.3an 10GBASE-T 10G Ethernet
• IEEE 802.3ae 10GBASE-SR
• IEEE 802.3ae 10GBASE-LR
• IEEE 802.3z 1000Base-X
• IEEE 802.3x Full-duplex flow control
• IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
• IEEE 802.1q Virtual LANs (VLANs)
• IEEE 802.1p QoS protocol for traffic prioritization

QoS:

• Bandwidth control
• Traffic classification
• Rate limiting

Security:

• Access Control Lists (ACL): ACL by IP address, ACL by MAC
• Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
• Host access control for shared folders (CIFS/SMB)
• AES 256-bit folder-based and volume-based encryptions, which are validated by FIPS 140-2 Cryptographic Algorithm Validation Program (CAVP )
• 256-bit external drive encryption (AES)
• Import SSL certificates from Lets Encrypt
• Instant alerts through email, SMS, push service, audio, and LCD panel
• 2-step verification

Management, monitoring, configuration:
L2 features:

• Port trunking
• LACP groups
• IGMP snooping v2/v3
• Loop protection to avoid broadcast loops

L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 500 Watt
Environment requirements:

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 5% to 95% non-condensing, wet bulb temperature: 27°C (80.6F)

Certificates:

• CE
• FCC
• VCCI
• BSMI RCM
• Electromagnetic compatibility: CLASS A, UL62368

Accessories included:
Power supply:

100-240 VAC, 50/60 Hz

Dimensions:

44,2 x 435,2 x 327,7 mm

Weight: 4.37 kilogram
Other features:

• PoE power output: Ports 1-4 (90W), ports 5-16 (30W)
• Total available PoE power: 370W
• 2 x USB 3.2 Gen 1 Port
• Management slot: 2 x 5GbE, 2 x 1GbE
• Management interface: Web
• Built-in QTS
• Processor: Intel Atom C3758 8-core 2.2 GHz processor
• Processor architecture: 64-bit x86
• Intel QAT support
• System memory: 16 GB (1 x 16 GB)
• Maximum memory capacity: 64 GB
• Memory slot: 2 x SODIMM DDR4
• Flash memory: 4 GB (OS dual boot protection)
• Drive bays: 2x 2.5-inch SATA 6Gb/s, 3Gb/s
• M.2 SSD slots: 2 (NVMe, PCIe Gen3 x 2)
