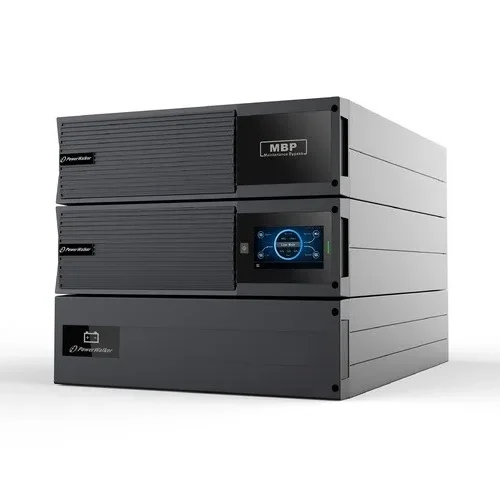

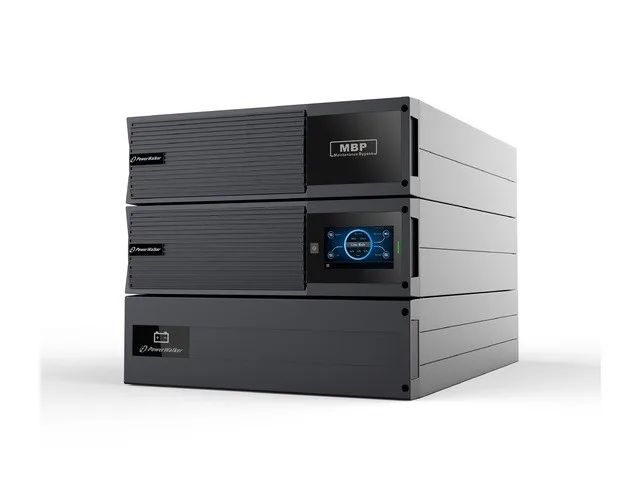

PowerWalker UPS VFI 10000 ICT IOT 3/1 BI On-line 10KVA terminal R1-45 USB-B RS-232 3/1 phase epo

PowerWalker UPS VFI 10000 ICT IOT 3/1 BI On-line 10KVA terminal R1-45 USB-B RS-232 3/1 phase epo

Description:

VFI 10000 ICT IOT 3/1 BI On-line UPS 10KVA terminal R1-45 USB-B RS-232 3/1 phase epo

The PowerWalker VFI 1-20K ICT/ICR IoT series is the next generation of IoT UPSs, offering an intuitive WinPower View application for remote monitoring via the cloud. The UPS can be quickly configured and is easy to maintain. It provides the ability to review operating status and immediately troubleshoot issues regardless of time or location.

Data is sent to the cloud via an Ethernet (RJ-45) port or wireless adapter, all ICT/ICR IoT models have an Ethernet (RJ-45) port on the rear panel. Cloud-based monitoring increases the availability and quality of traditional monitoring while enabling cost reduction, scalability and trend analysis.

This UPS series uses double-conversion technology and features the highest PF=1.0 power factor, ensuring stable operation of critical equipment and delivering uninterrupted output power to sensitive loads. Many additional accessories, such as external battery packs, communication cards and WLAN adapter, enhance the functionality of the UPSs. The series is available as: Online 1/1, Online 3/1 and Online 3/3.

Stay up to date with your UPS anytime and anywhere!

Note: This product bundle includes Battery Pack 10134061!

Apparent power: 10 kVA
Active power: 10000 Watt
UPS Architecture: on-line
The shape of the output voltage: Full sine wave
Number of phases input: 3 (400V)
No. of batteries: 20
Battery capacity: 9 Ah
Hold-up time (maks): 10 millisecond
Transfer time (max): 10 millisecond
Backup time (100% load): 3.7 Minute
Charging time: 3 Hour
Chassis type: Rack
Filters / protection: Surge
Special functions:
Software:

WinPower

Input power ports: Terminal
Output power ports: 1 x Terminal
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x RJ-45 LAN
Environment requirements:

• Recommended ambient temperature: 0 – 40 °C
• Recommended ambient humidity: 0 – 95 %

Accessories included:
Color: Black
Dimensions:

260 x 438 x 559 mm

Other features:

• Device efficiency: 96 %
• Hold time at 50% load: 8.68 min
• Input voltage range: 190 – 520 V
• Input frequency range: 40 – 70 Hz
• Input frequency adjustment: +/- 0.1 Hz
• Output voltage adjustment: +/- 1 %
• Operation indication: LCD
• Noise level: 55 dB
