PowerWalker UPS PW LINE-IN 1500VA 8x IEC OUT LCD RACK 19

PowerWalker UPS PW LINE-IN 1500VA 8x IEC OUT LCD RACK 19

Important:
Description:

Power Walker VI 1500 RT HID LCD is an advanced Line-Interactive UPS characterized by a pure sine wave and high output power factor 0.9.

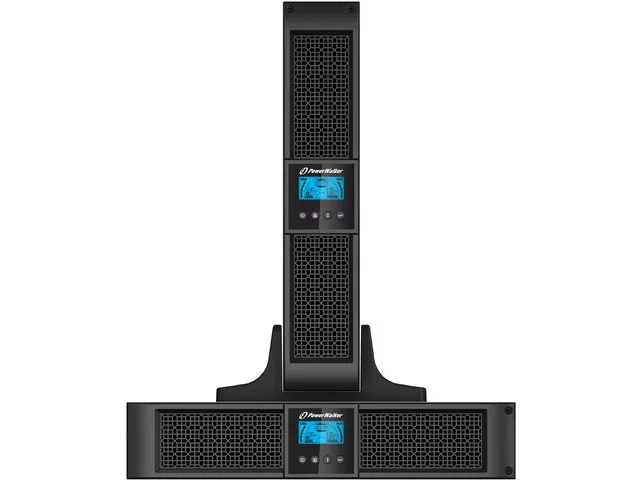

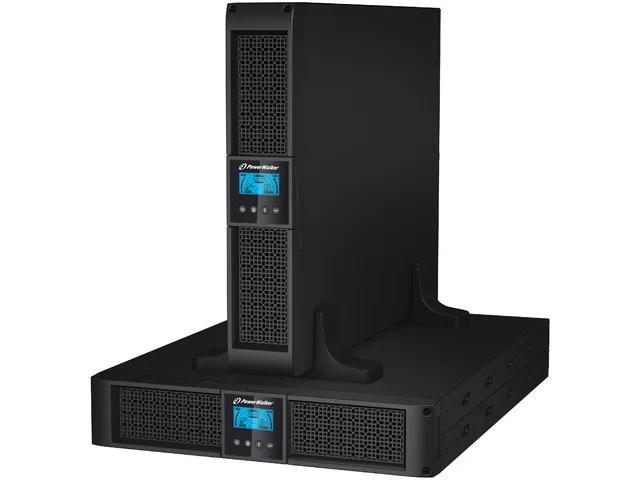

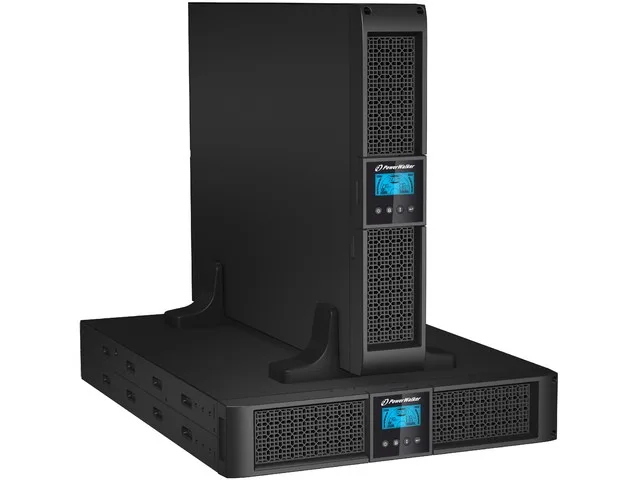

It offers full protection for servers, switches, telephone exchanges, IP cameras, also suitable for industrial applications. Its height is only 2U. UPS can be installed in a 19 „rack (mounting ears included), also has a base for installation in vertical position (Tower).
HID is the primary driver for monitoring the status of devices used for years on Windows, Mac OS, Linux. USB HID port enables communication with connected devices without installing additional software. Power management options are used emergency backup power in the operating system menu, thanks to desktop behaves like a laptop connected to the battery. This series is the best choice for devices that do not have the option of installing additional software, eg. US, some digital recorders, photo kiosks and ATMs.

Features:
– 1500VA Line-Interactive UPS Tower / 19 „rack
– Pure sine wave output power factor of 0.9
– 8x IEC C13 RJ-11 / RJ-45 (in / out)

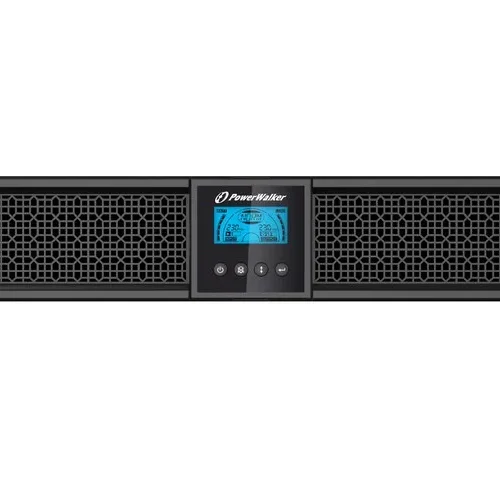

– Built-in LCD display, the ability to change the display orientation (vertical / horizontal)
– Error messages on the display – blue, red, red blinking – depending on the status of UPS
– Programmable ICE socket C13 – 4 sockets
– The EPO (Emergency Power Off)
– Automatic diagnostic system UPS
– Short charging time
– Integrated voltage stabilization AVR
– Automatic restart after power is restored
– Charging mode off
– The „cold start“
– Communication port USB / RS-232
– Software to monitor UPS operation – WinPower Software – in Polish
– Surge Protection RJ-11 / RJ-45
– Energy saving function (the ability to disable the software)

Apparent power: 1500 VA
Active power: 1350 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 3
Voltage: 12 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 10 millisecond
Transfer time (max): 6 millisecond
Backup time (100% load): 3 Minute
Charging time: 4 Hour
Chassis type: Rack
Filters / protection: Surge
Special functions:
Software:

Software: WinPower
– Ability to control and monitor multiple UPS units to the local network and the Internet
– Charts power analysis, event statistics, export data history
– Chart UPS unit data in real time (voltage, frequency, load level, battery level)
– Safe shutdown of the system and data protection against power failure
– Notifications using the system sounds, e-mail, SMS, to all computers on the LAN
– Schedule on / off, battery test, programmable control socket, control audible alarms.
– Access protection with password, remote access and management
– Multi-language support: English, Chinese, French, German, Spanish, Russian, Portuguese, Ukrainian, Italian, Polish, Czech, Turkish
– Operating system: Windows / MAC / Linux / Unix / Solaris / AJX / HP–UX / FreeBSD details at: – http://www.powerwalker.com/winpower.html

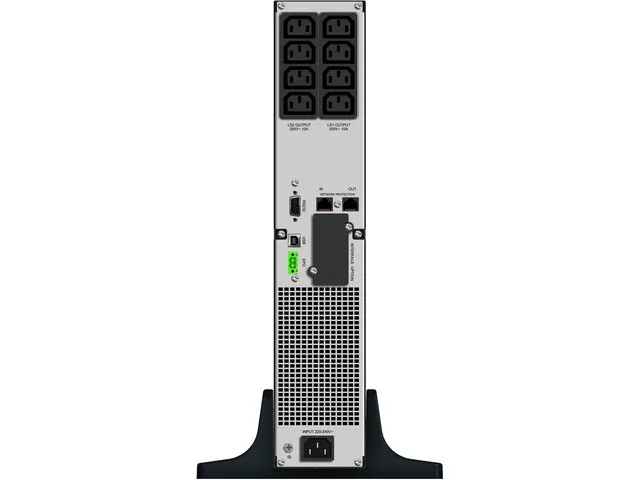

Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
I/O connectors: 1 x RJ-45 LAN
I/O connectors: 1 x RJ-11
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

– Operating temperature: 0 – 40 &#176, C
– Recommended humidity: 20 – 80%

Accessories included:
Color: Black
Dimensions:

438 x 436 x 86.5 mm

Other features:

Optional accessories:
– Mounting Rails 19 „: 10120529
– Card (NMC module SNMP): 10120517
– Data AS / 400: 10120527
– Battery Pack (Battery Pack): 10134010
