PowerWalker UPS On-Line 3000VA TGB 4x IEC, LCD, EPO USB/RS-232 Tower

PowerWalker UPS On-Line 3000VA TGB 4x IEC, LCD, EPO USB/RS-232 Tower

Important:
Description:

UPS Powerwalker ON-LINE 3000VA TGB 4X IEC OUT, USB/RS-232, LCD, TOWER, EPO



The PowerWalker VFI TGB Emergency Power Supply Series offers a professional solution for home and office. We can choose from 3 power units 1kVA, 2kVA, 3kVA, which were made in ON-LINE technology. The TGB series has been extended with a connector for external battery modules.



The VFI TGB series has been equipped with a USB-HID connector, this connector has built-in drivers, which facilitates power management without the installation of additional monitoring software. This power supply will be used wherever we do not have the ability to install external software such as photographic kiosks, ATMs, advanced security/monitoring systems.



– High power factor 0.9

– Made in ON-LINE technology

– Equipped with a USB-HID (Human Interface Device) connector

– Support wide input voltage range (100-300VAC)

– Battery module: 10134033

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: on-line
Number of phases input: 1 (230V)
No. of batteries: 6
Voltage: 12 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 0 millisecond
Transfer time (max): 0 millisecond
Backup time (100% load): 3.9 Minute
Charging time: 4 Hour
Chassis type: Tower
Filters / protection: Surge
Special functions:

– Expansion slot

– Emergency shutdown (EPO)

Software:

WinPower

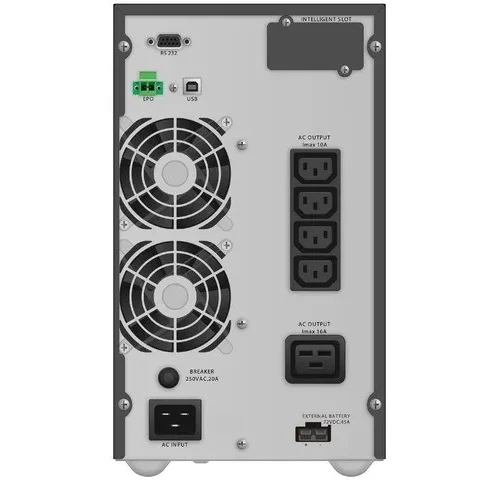

Output power ports: 4 x IEC-C13
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RS-232 (Service)
Environment requirements:

– Recommended ambient temperature: 0 – 40°C

– Recommended ambient humidity: 20 – 90%

Accessories included:
Color: Black
Dimensions:

328 x 399 x 190 mm

Other features:

– Input frequency range: 40 – 70 Hz

– Power: 2,700 W

– Output frequency: 50 Hz

– Input frequency adjustment +/- 0.05 Hz

– Noise level: 45 dB

– Battery weight: 6.18 kg

– Waveform: Sinusoid

– Supported operating systems: Windows 98, Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Linux, MAC, FreeBSD, Solaris
