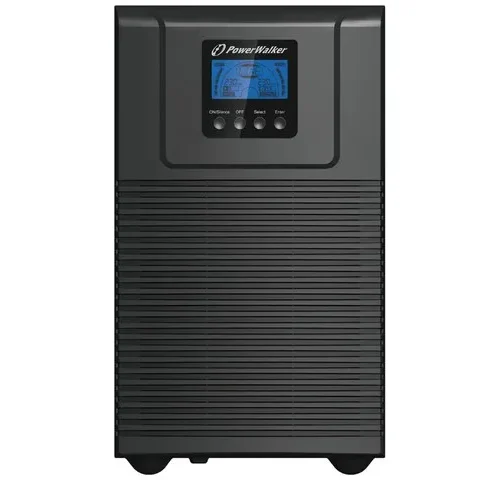

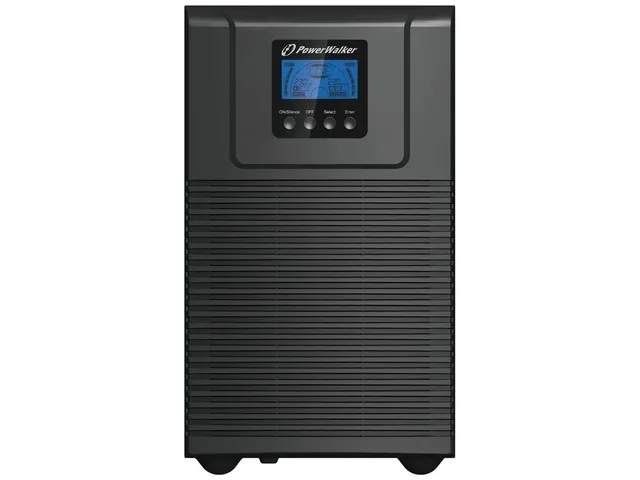

PowerWalker UPS ON-LINE 3000VA TG 4x IEC OUT, USB/RS-232, LCD, TOWER, EPO

PowerWalker UPS ON-LINE 3000VA TG 4x IEC OUT, USB/RS-232, LCD, TOWER, EPO

Description:

ON-LINE UPS 3000VA
Emergency Power Supply Series PowerWalker VFI TG offers a professional solution for home and office. We can choose 3 power unit 1kVA, 2kVA, 3kVA that have been made in the technology ON-LINE. Power Supplies TG series are designed to work with external battery modules and high-capacity batteries, thanks to built-in powerful charger (6A instead of 1A as in the case of standard models).

VFI TG Series is equipped with a connector UPB-HID, this connector has a built-in drivers for easy power management without installing additional software monitoring. This power supply can be applied everywhere where we can not install third-party software such as photo kiosks, ATMs, advanced system security / monitoring.

– High power factor 0.9
– Made in the technology ON-LINE
– Equipped with USB-HID (Human Interface Device)
– They support a wide range of input voltage (100-300VAC)
– Cooperate with external battery modules

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: on-line
Number of phases input: 1 (230V)
No. of batteries: 6
Voltage: 12 Volt
Battery capacity: 9 Ah
Transfer time (max): 0 millisecond
Backup time (100% load): 3.9 second
Charging time: 4 Hour
Chassis type: Tower
Filters / protection: Surge
Special functions:

Emergency Off (EPO)

Software:

WinPower

Input power ports: IEC-C20
Output power ports: 4 x IEC-C13
Output power ports: 1 x IEC-C19
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

– Operating temperature: 0 – 40 &#176,C
– Recommended humidity: 0 – 95%

Accessories included:
Color: Black
Dimensions:

328 x 190 x 399 mm

Weight: 22.2 kilogram
Other features:
Designation:
