PowerWalker Energy bank Life Battery System 48-100 for ON/OFF-GRID inverters 16x100AH LIFEPO4

PowerWalker Energy bank Life Battery System 48-100 for ON/OFF-GRID inverters 16x100AH LIFEPO4

Description:

Life Battery System 48-100 power bank for ON/OFF-GRID inverters 16x100AH LIFEPO4.

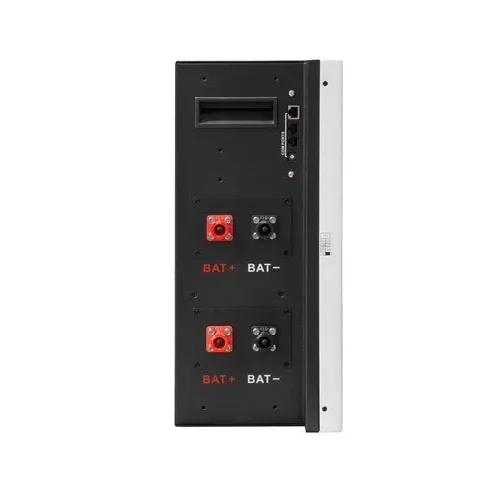

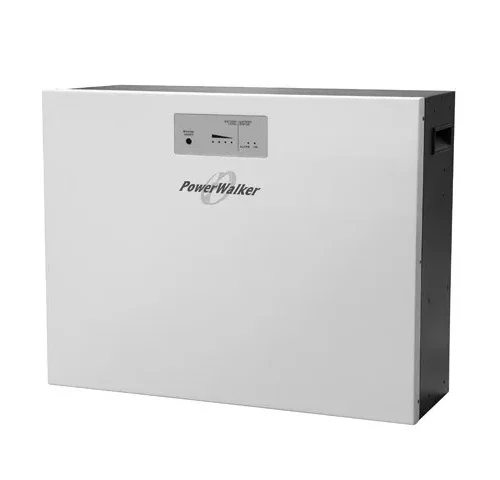

The PowerWalker LiFe Battery System 48-100 Battery Module is a modular and scalable lithium-ion battery pack suitable for all our solar inverters. This power bank is compact for its capabilities (ESS) and can be charged at high speed. It is designed for 6000-8000 charging cycles making it ideal for long-term projects. Lithium-ion technology guarantees safety and reliability. The back-up time works linearly, so you get what you get!

ESS together with our solar inverters will act as a centralized power solution that helps:

• Store solar energy in batteries,
• Save money by using the stored energy for your own needs (at night), and
• Use it as a backup power source in case of grid failure.
• Extend the functionality of all PowerWalker solar solutions – one energy bank for all inverters!

Product features:

• Compact size and light weight! Module with a nominal power of 5.12 kWh!
• Modular design allows easy future expansion up to 10 units!
• Fast charging (lithium-ion technology)
• 6000-8000 charging cycles, that’s about 12-15 years of product lifetime
• Works with all our solar inverters, one ESS for all!
• Long holding time (lithium-ion technology)
• 50% higher discharge capacity, up to 150A
• Peak discharge capacity of 192A (1 min.).
• Compatibility with selected 48V inverters / UPS with powerful chargers, heat pumps thanks to additional BMS card 10131017

Battery system can be discharged with a maximum current of 150A. Above 150A, it is required to use PDU model 10133017 for LiFe Battery System.

Charging current: 100A maximum (20-30A recommended).

Discharge efficiency (DC to AC): 90%

Battery life:

• 8,000 cycles for 60% depth of discharge (DOD) at 1C discharge current and 0.2C charge current with >50% capacity compared to original capacity.
• 2000 cycles for 90% DOD depth of discharge at 1C discharge current and 0.2C charging current with >80% capacity compared to original capacity.

Type: Battery module
No. of batteries: 16
Voltage: 3.2 Volt
Battery capacity: 100 Ah
Environment requirements:

• Recommended ambient temperature: 0 – 40 °C
• Recommended ambient humidity: 5 – 95%

Accessories included:

• Battery connector
• Set of mounting elements
• RJ-11 connector for communication with the inverter
• Set of screws
• RJ-45 cable
• RJ-11 cable
• User manual

Color: White
Dimensions:

420 x 540 x 185 mm

Weight: 59.5 kilogram
Other features:

• Battery string voltage: 51.2V
• Nominal capacity of the power bank: 5.12 kWh
