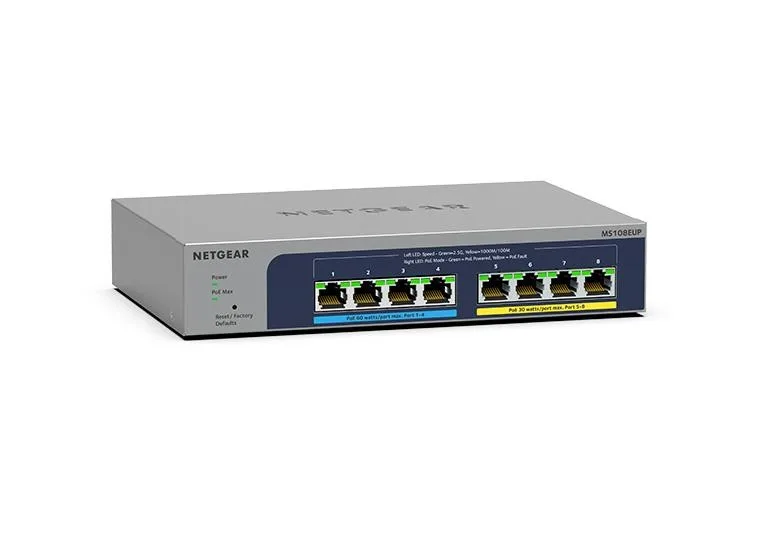

Netgear Switch MS108EUP 8×2.5GE PoE++

Netgear Switch MS108EUP 8×2.5GE PoE++

Description:

8-Port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus switch

Provides 8 1G/2.5G ports with 4 PoE+ ports and 4 Ultra60 PoE++ ports, making it the ideal switch for WiFi 6 AP connections, IP surveillance and more.

Multi-Gigabit Ethernet devices

Each of the 8 ports provides up to 2.5Gbps of dedicated, non-blocking bandwidth.

PoE support

The 4 Ultra60 PoE++ ports and 4 PoE+ ports provide a total of 230 watts, allowing you to power and connect devices using a single cable.

Advanced PoE control

Manage PoE priorities, PoE power limit per port and other features for simple control over all PoE-powered devices.

Non-blocking switching

A 10 Gbps (10/100/1000 Mbps) backbone network provides connectivity to devices without restriction.

Fanless design

Quiet operation makes this switch ideal for noise-sensitive environments.

Versatile mounting options

Install the switch on a desktop or mount it on a wall or rack with the included mounting hardware.

Switch class: SMART
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 8
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 8
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 40 Gigabity na sek.
Packet buffer: 1.5 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 12 Kilobajt
Stackability: No
Number of VLAN groups: 64
VLAN:

EEE 802.1Q VLAN tagging

Port-based VLANs

Supported protocols and standards:

• IEEE 802.3 Ethernet
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.1p Class of Service
• IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
• IEEE 802.3ad Dynamic Link Aggregation (LACP)
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3x Full-duplex Flow Control
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3bt PoE++

QoS:

• Rate limiting
• DSCP
• IEEE 802.1p COS
• Port-based QoS
• TOS
• WRR (Weighted Round Robin)

Security:
Management, monitoring, configuration:

• System password
• Web browser based management GUI
• Port mirroring
• Max number of source ports allowed (one-to-one port mirroring):  1
• Cable test utility
• Config upload (to server)

L2 features:

• Link aggregation/ port trunking
• Number of static manual LAGs and # of members: 4 LAG with max 4 members in each LAG
• IGMP snooping (v1, v2 and v3)
• Block unknown multicast
• Supported multicast groups: 128
• DHCP client

L3 features:
Other functions:
Chassis type: Rack
Chassis type: Desktop
Fan : No
Power supply : External
Mean time between failures (MTBF): 373644 Hour
Accessories included:

• NETGEAR Switch Plus
• Power Supply
• Wall Mounting Kit
• Rubber feet
• Installation guide

Power supply:

• External power supply
• Total PoE/PoE++ budget: 230W

Dimensions:

210 x 140 x 40 mm

Weight: 0.9 kilogram
Environment requirements:

• Operating temperature: 0° to 40°C
• Operating humidity: 90% non-condensing
• Operating altitude: maximum 3000 m
• Storage temperature: -20° to 70°C
• Storage humidity: max. 95% non-condensing
• Storage altitude: max. 3000 m

Certificates:

• FCC Part 15 class B
• CE/EN55032/24
• CSA
• VCCI
• ACMA
• KC
• CCC
• BSMI

Other features:
Designation:
