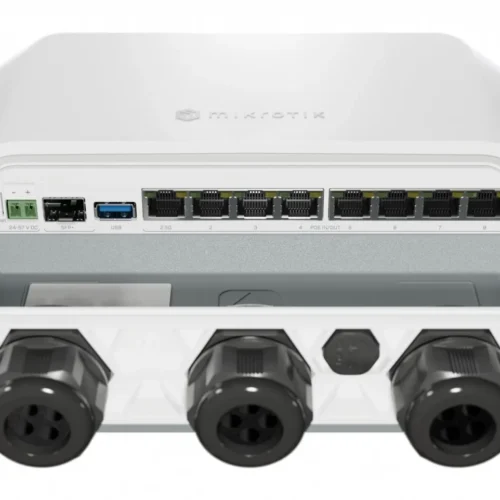

MikroTik Router Outdoor RB5009UPr+S+OUT

MikroTik Router Outdoor RB5009UPr+S+OUT

Description:

As a network administrator, you never know when the next storm, lightning, flood, heatwave, or power outage will strike. But with the right tools, you can protect your network from most problems! Here’s our wish list for the perfect tool:

• Easy to deploy
• Works well in ALL weather
• Provides extensive power redundancy
• Can be connected via most popular network interfaces
• Has a processor powerful enough to fully utilize the world’s most powerful network software – RouterOS v7

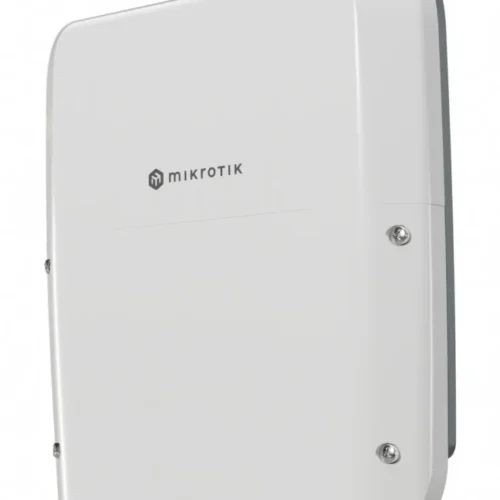

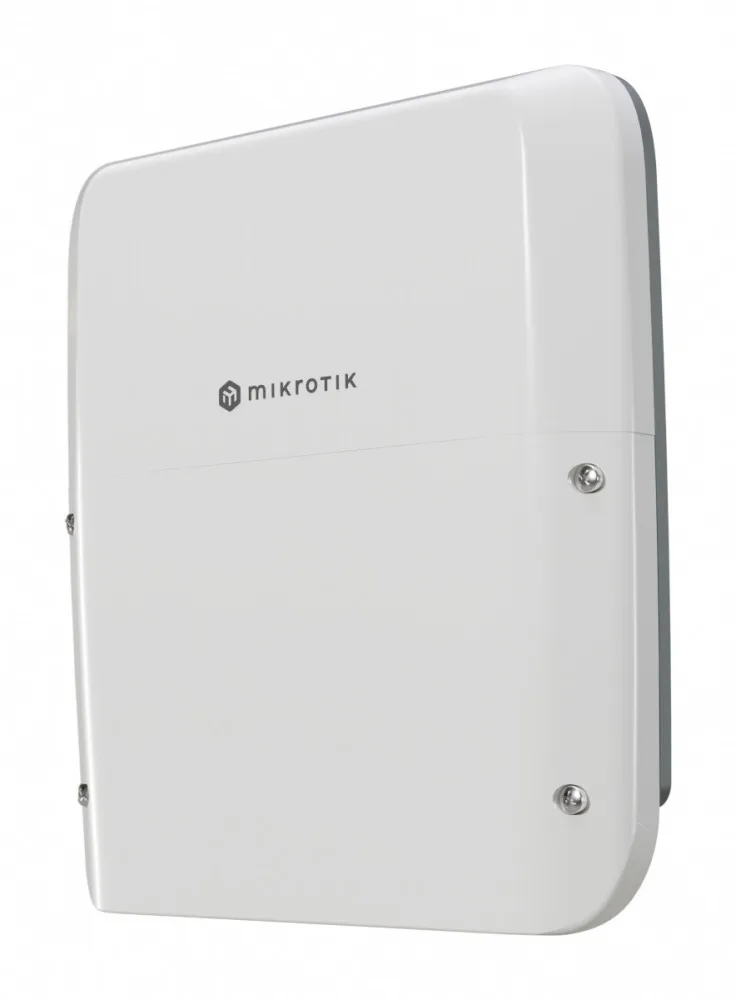

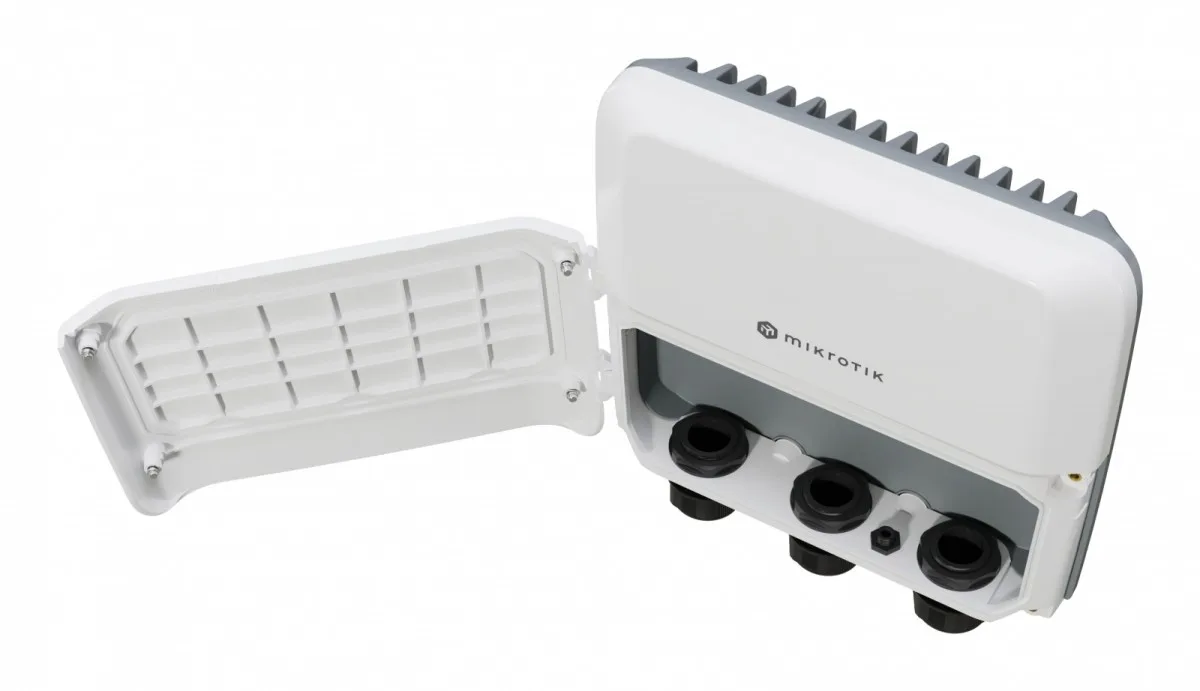

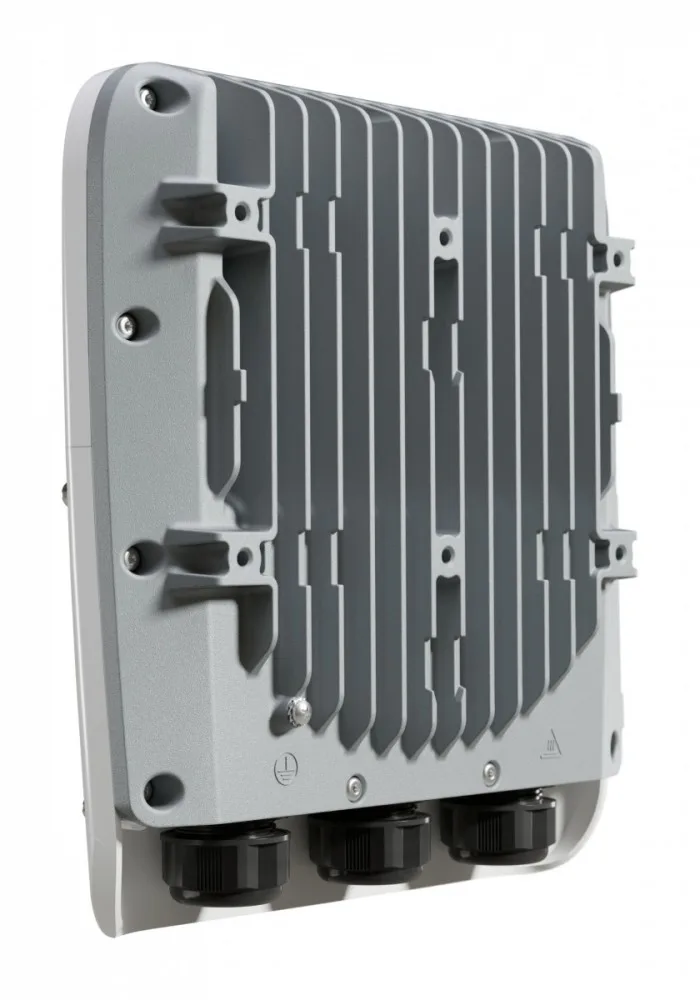

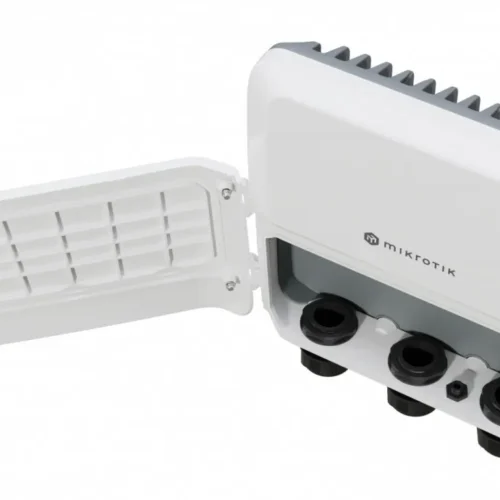

By adding an IP66-rated waterproof housing to the RB5009 series, we’ve met all your requirements! The all-new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setup. You get one of the most powerful outdoor network devices at the best price on the market!

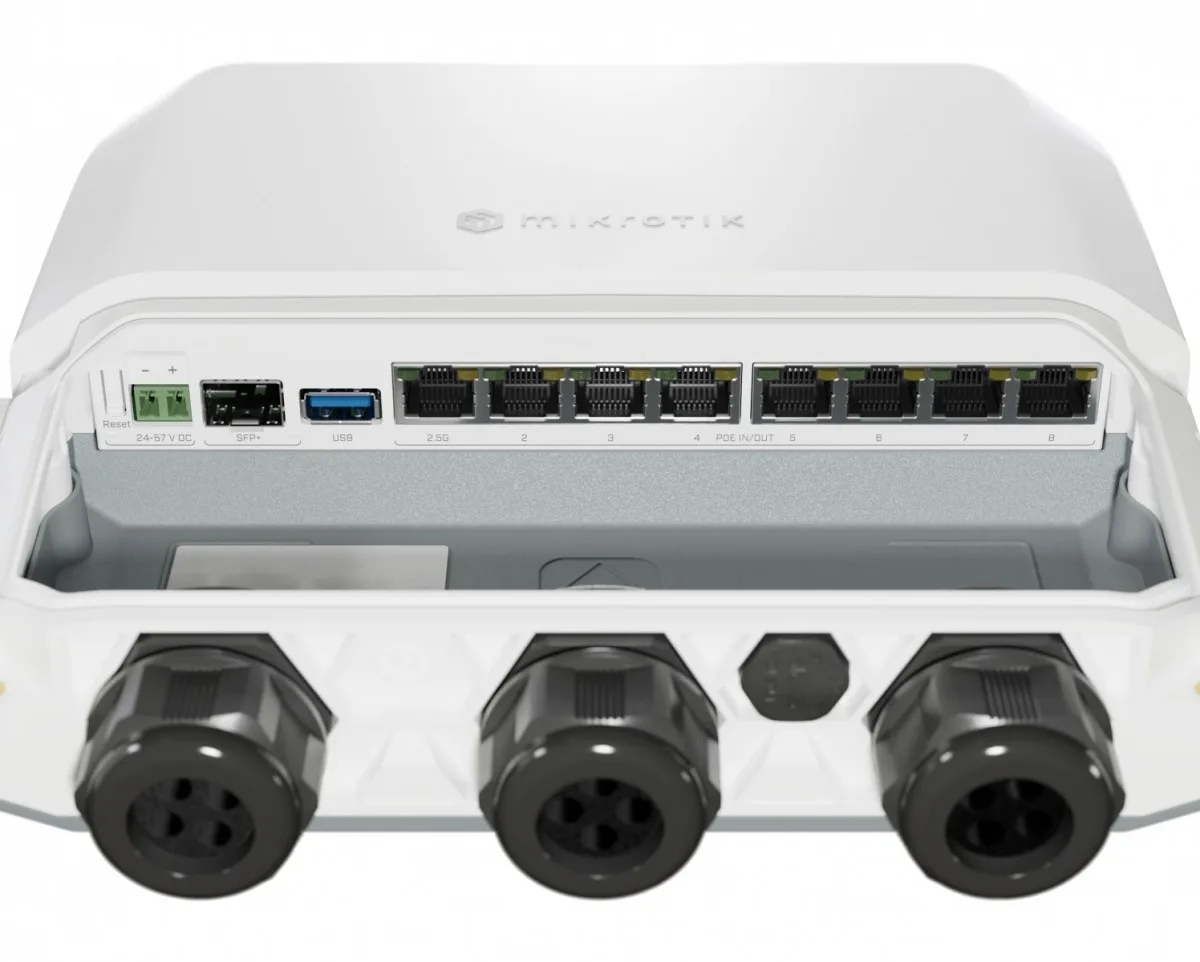

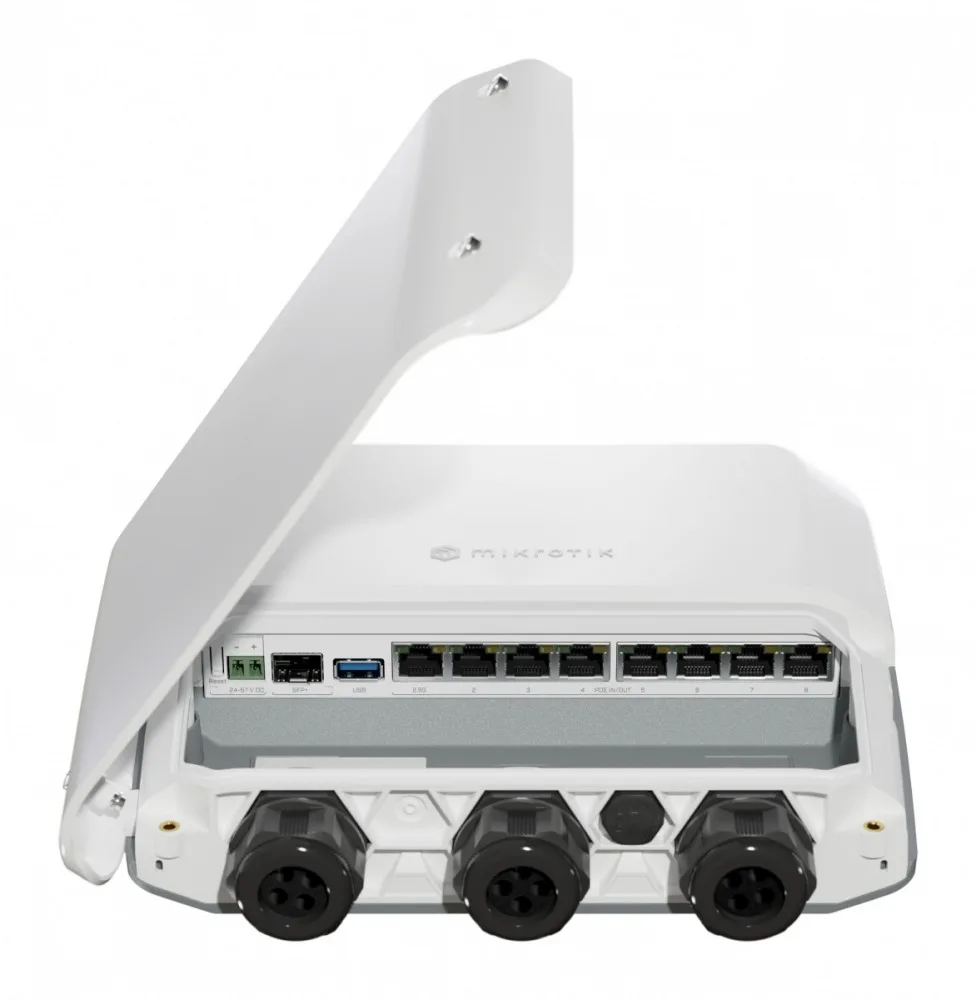

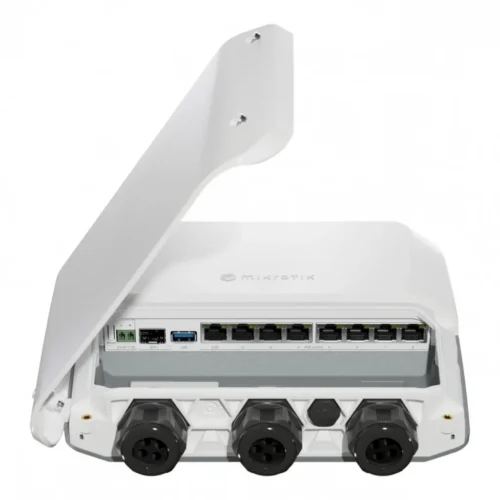

Like the internal version, this RB5009 has 7 Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full-size USB3 port!

When we say extensive power redundancy, we really mean it: the unit offers 9 possible power options. There’s a 2-pin power connector on the front panel, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the highest voltage when multiple sources are available. The RB5009 draws up to 21W to power itself. If you use PoE-in, the board will remain powered even if 8 of the 9 power sources suddenly fail. Unprecedented redundancy!

All power options support a wide voltage range of 2457V. However, you cannot mix voltages.

Each PoE-out port can supply up to 25W of power. All ports are limited to 130W combined, which should be sufficient for most configurations. (Note that the included power supply has a total power of 96W, so a separate power supply will be required for maximum output.) You can manually specify the maximum available power from your power sources if necessary. If you are using PoE-out to power other devices, you must provide power via the 2-pin connector to power them.

This product also features single-voltage PoE-outeither 802.3at/af-compliant OR low-voltage PoE-out. This is determined by the voltage on the 2-pin connector, as no voltage conversion is performed on this board.

In terms of processing power and available use cases, this router can do it all: PPPoE termination, DHCP for clients, local queuing, MPLS Push/Pop/Swap and MPLS forwarding, VPLS/VXLAN termination, hardware bridging, and much more!
