Maclean TV bracket for 21-75 50kg, MC-788

Maclean TV bracket for 21-75 50kg, MC-788

Description:

TV bracket for 32-75“ 50kg adjustable TV set

Maclean TV Mount, max VESA 400×400, 32-75″, 50kg, horizontal and vertical angle adjustment, profile 80-380mm, black, MC-788

Universal wall mount is used to mount LCD, LED, OLED, QLED TVs of various brands with a weight of up to 50 kg and a screen diagonal of 32″ to 75″. The tilt and swivel adjustment allow you to optimally position the screen for the best viewing angle. The mount is compatible with LED, LCD, OLED, QLED TVs: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi. The given screen size is only a suggestion. You can mount a larger TV on the mount when it does not exceed the maximum weight and fits in the specified VESA standard.

The long double arm of the bracket, allows a wide range of rotation of the TV. Additionally, it is possible to level the TV after mounting +3/-3°. To the bracket we can easily attach the screen in the VESA standard: 75×75, 100×100, 200×100, 200×200, 300×300, 400×200, 400×400 mm. The solid construction of the mount ensures the safety of the mounted TV, and its universal design fits most interiors.

In addition to a set of mounting screws, the set includes additional accessories: – a compact leveler will facilitate perfect leveling of the mount on the wall. With it, you can be sure that the screen will be mounted evenly, without tilting, which will ensure the comfort of viewing and the professional appearance of the installation. – practical drill dust collector is an easy-to-use accessory that effectively collects dust and debris generated when drilling holes, protecting the floor and furniture from dirt. The dust collector fits drill bits with a diameter of 4-10 mm. – Screen cloths (dry and wet) are perfect for removing dirt created during installation, leaving the screen clean and streak-free. – 3 cable clamps will help neatly organize cables, eliminating tangles and enhancing the aesthetics of the space around the TV. Made of durable material, the cable ties are easy to use and provide a secure hold, while they can be quickly removed or adjusted as needed.

Usage: TV
Type: Wall
Screen size (min): 32 Cal
Screen size (max): 75 Cal
VESA: 400 x 200
VESA: 300 x 300
VESA: 75 x 75
VESA: 100 x 100
VESA: 200 x 100
VESA: 200 x 200
VESA: 400 x 400
Load (max): 50 kilogram
Vertical adjustment: 15 Degrees
Horizontal adjustment: 3 Degrees
Range adjustment: Yes
Range (min): 80 Millimetre
Range (max): 380 Millimetre
rotation: 60 Degrees
Corner mount: No
Stuff: Steel

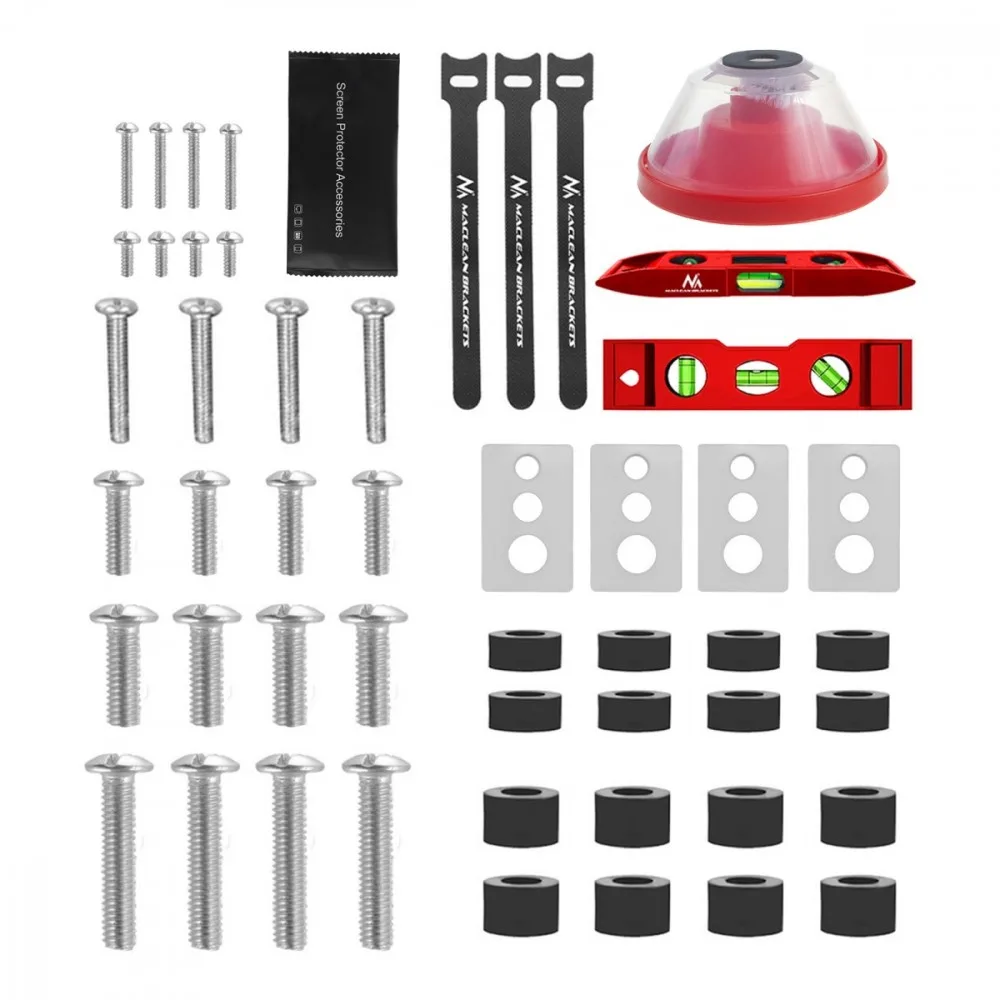

Accessories included:

Maclean MC-788 TV mount – Set of mounting screws – Dust collector for drill – Level – 3 cable clamps – Screen cloths (dry and wet) – Installation manual in Polish – Manufacturer’s packaging

Color: Black
Dimensions:

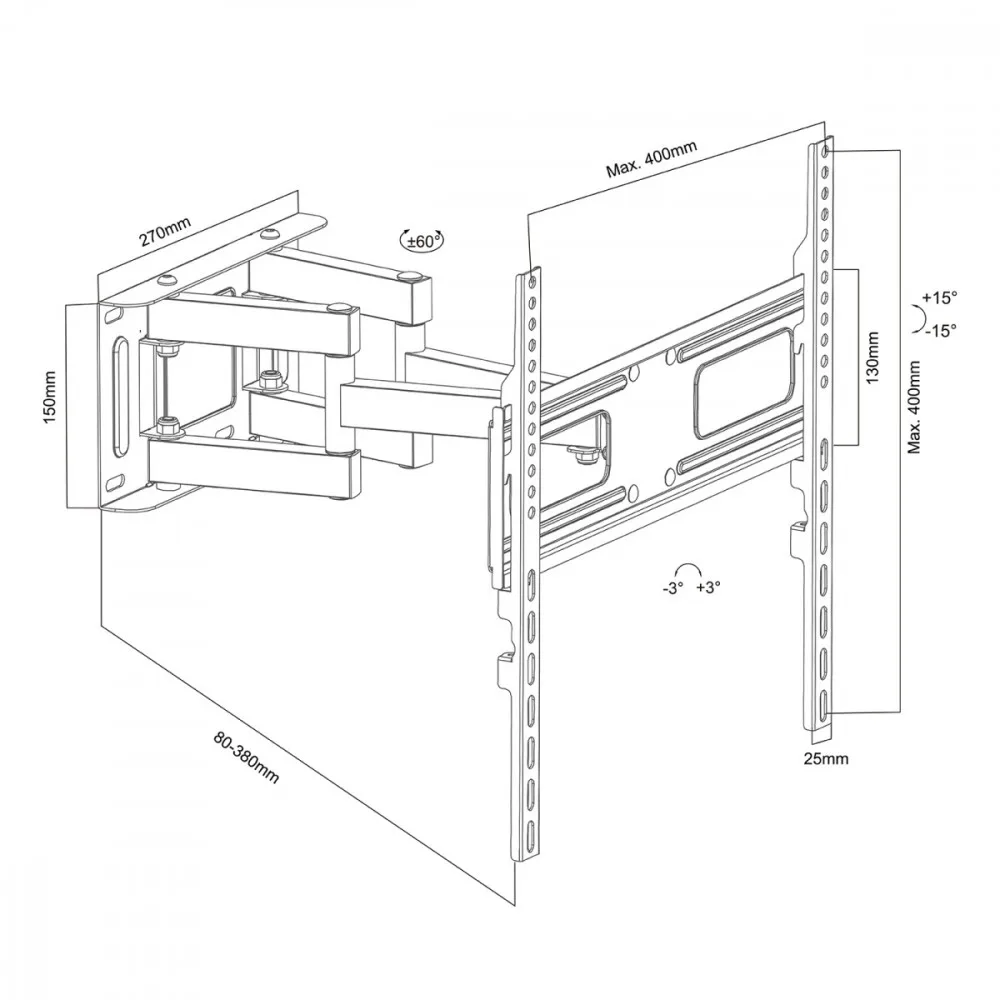

– Manufacturer: Maclean – Model: MC-788 – Maximum load: 50 kg – Minimum/Maximum horizontal spacing: 50/400 mm – Minimum/Maximum vertical spacing: 50/400 mm – Adjustable tilt: from +15° to -15° – Adjustable swivel: from +60° to -60° – Adjustable TV leveling after mounting: +3/-3° – Powder coating – Color: black – Adjustable distance from wall: 80 mm to 380 mm – Designed for 32″ to 75″ TVs (or larger if their weight does not exceed 50 kg and the VESA standard is compatible with the mount) – Comes with a set of mounting screws for the wall, as well as for screwing the TV and installation instructions – VESA: 75×75, 100×100, 200×100, 200×200, 300×300, 400×200, 400×400 mm.

Other features:

– Designed for TVs with screen diagonal from 32″ to 75″ – Maximum load: 50 kg – Adjustable degree of tilt: from +15° to -15° – Powder coating – Color: black – Adjustable distance from the wall: from 80 mm to 380 mm – Comes with a set of mounting screws for the wall, as well as for screwing the TV, and installation instructions – The included spirit level will facilitate perfect leveling of the mount on the wall – The drill dust collector effectively collects dust and debris from drilling holes – VESA: 75×75, 100×100, 200×100, 200×200, 300×300, 400×200, 400×400 mm
