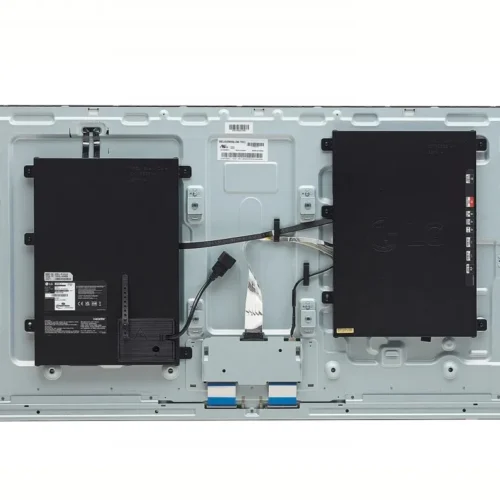

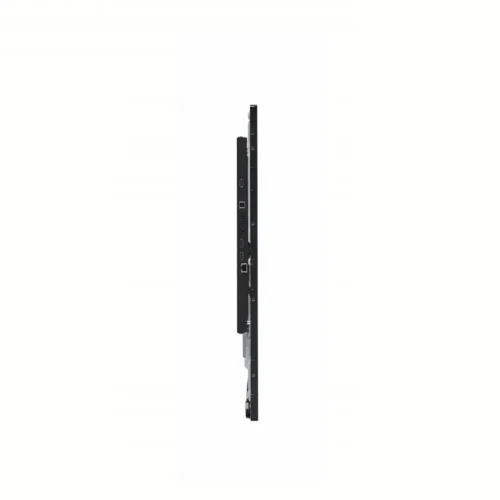

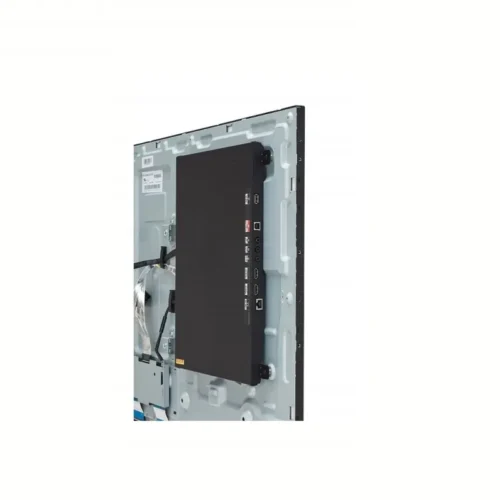

LG Electronics Interactive display Touch Open Frame 32TNF5J IPS 32 inch FHD 500cd/m2 24/7

LG Electronics Interactive display Touch Open Frame 32TNF5J IPS 32 inch FHD 500cd/m2 24/7

Model:

32TNF5J

Description:

Slim and lightweight

In-Cell Touch Open Frame has the touch function built into the display, which allows the implementation of a slim design and a narrow bezel compared to generic products that require additional touch parts.

Crisp image quality

Compared to general touch products, the TNF5J provides clear image quality without the milky effects caused by the extra parts of the touch sensor film.

Design flexibility

By providing integrated parts such as touch screen, display and webOS, users are free to design as they wish.

24h / 7 days

The excellent durability of the TNF5J allows it to be used in kiosks requiring 24/7 operation.

Wide viewing angle

IPS panel technology gives you better control of the liquid crystals, which in turn allows you to view the screen from virtually any angle.



Inclination 45 degrees

When the display is installed in low places, it is usually tilted for user comfort. Considering this, installation with a maximum slope of 45 degrees is supported.

10 multi-touch points

The TNF5J provides a more realistic touch experience as it can recognize up to 10 multi-touch points simultaneously, and different touch user services can be provided through the screen.

Powerful performance with webOS 6.0

webOS 6.0, enhanced with SoC* and web engine, is available on the TNF5J to run several tasks smoothly. LG’s webOS intelligent platform enhances the user experience with an intuitive GUI** and provides AI and/or developers with simple application development tools such as SDK (Software Development Kit), SCAP, sample applications.

* SoC : System On Chip

** GUI : Graphical User Interface

Screen size (diag.): 32″
Matrix type: TFT IPS
Display surface: Glare
Touch screen: Yes
Transreflective technology: LED
Resolution: 1920 x 1080 (FHD 1080)
Response time : 9 millisecond
Brightness: 500 nits
Static contrast: 1 000:1
Viewing angle, horizontal: 178 Degrees
Viewing angle, vertical: 178 Degrees
Number of colors: 16,7 mln
I/O connectors: 1 x Audio in/out
I/O connectors: 1 x RJ-45 LAN
I/O connectors: 1 x USB 2.0
I/O connectors: 2 x RS-232C (IR)
I/O connectors: 2 x HDMI
I/O connectors: 1 x USB (Type B)
Bluetooth: No
WiFi: No
Speakers built-in : No
TV tuner built-in: No
Web camera: None
Auto Pivot: No
Certificates: FCC Class A
Certificates: CB
Certificates: CE
Certificates: ErP
Certificates: KC
VESA: 200 x 200
Power consumption: 65 Watt
Energy class: not applicable
Accessories included:

• Power cord 1.55m
• USB cable (Type A-Type B) 1.8m
• User manual
• QSG
• Remote control (includes 2 batteries)
• RS232C connector
• Infrared receiver

Optional accessory:
Color: Black
Height: 419.4 Millimetre
Width: 723 Millimetre
Depth: 39.1 Millimetre
Weight: 5.6 kilogram
Other features:

• Low haze (3%)
• Operating System: Windows 10
• HW – 8 GB internal memory (5 GB system + 2.48 GB available)
• HW – Temperature sensor
• SW – webOS ver. webOS 6.0
• SW – Embedded CMS – Local content scheduling
• SW – Embedded CMS – Group Manager
• SW – USB Plug & Play
• SW – failover
• SW – boot logo image
• SW – No signal image
• SW – video tag
• SW – Play via URL
• SW – Screen rotation
• SW – Gapless playback
• SW – Data cloning setting
• SW – SNMP
• SW – ISM method
• SW – Sending status
• SW – Control manager
• SW – Third Party Compatibility – Crestron Inside
• SW – Smart energy saving
• SW – PM mode
• SW – Wake on LAN
• SW – network ready
• SW – HDMI-CEC
• SW – SI server setting
• SW – webRTC
• SW – Pro:Idiom

Supported languages:

• English
• French
• German
• Spanish
• Italian
• Korean
• Chinese (simplified)
• Chinese (original)
• Portuguese (Brazil)
• Swedish
• Finnish
• Norwegian
• Danish
• Russian
• Japanese
• Portuguese (Europe)
• Dutch
• Czech
• Greek
• Arabic
• Turkish
• Polish

Warranty:
Designation:
