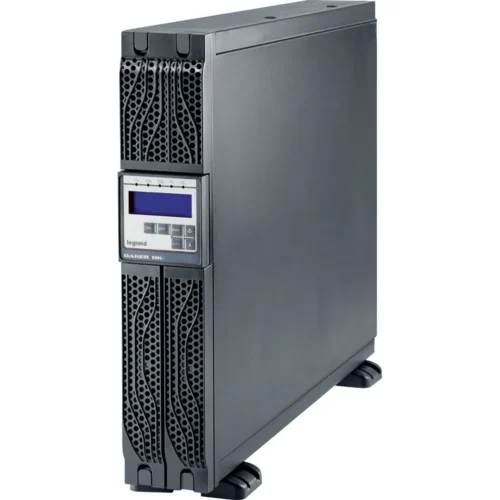

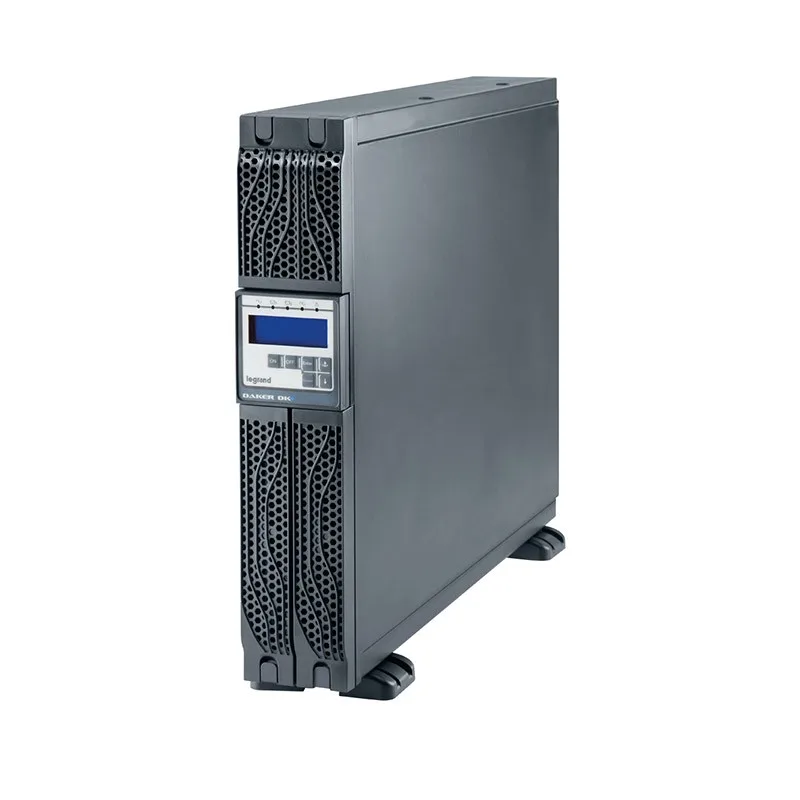

Legrand UPS DAKER DK+ 1KVA 310170

Legrand UPS DAKER DK+ 1KVA 310170

Description:

Online with double conversion VFI-SS-111
Sinusoidal voltage waveform
Power factor PF = 0.9
Conventional UPS in RACK/TOWER 2U version
LCD panel
Graphic interface for the user
EPO
USB-RS232
6x IEC C13 output sockets
IEC C14 input socket
Automatic and manual bypass (variant)
High efficiency (up to 90%)

optional:
WEB SNMP
RACK KIT
EXTERNAL BATTERY PANELS

Apparent power: 1000 VA
Active power: 900 Watt
Number of phases input: 1 (230V)
No. of batteries: 0
Voltage: 12 Volt
Battery capacity: 7.2 Ah
Hold-up time (maks): 0 second
Transfer time (max): 0 second
Backup time (100% load): 5 Minute
Charging time: 0 second
Chassis type: Rack
Chassis type: Tower
Filters / protection: Overload
Filters / protection: Circuit
Filters / protection: Suppression
Filters / protection: Surge
Special functions:

EPO

Software:

YES – for downloading from the site: http://ups.legrand.pl/software/

Input power ports: IEC-C14
Output power ports: 6 x IEC-C13
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

Working temperature 0-40°C

Degree of protection IP 21

Working humidity 20-80%

Sound intensity at a distance of 1m
Accessories included:
Color: Gray
Color: Black
Dimensions:

440 x 88 x 405 mm

Weight: 16 kilogram
Other features:

Certifications: EN 62040-1, EN 62040-2, EN 62040-3

DAKER DK+ is managed by a microprocessor and is able to manage alarms and other functions described below via the control panel and LCD display:
Normal work
The output frequency is not synchronized with the input
Work on the battery
Work in Bypass mode
Damaged power module
Overload
General anomaly
Neutral connection with the ground
End of autonomy

Designation:
UPS Architecture: on-line double conversion
