Lanberg Switch DSP1-1005 5-PORT 1GB/S DESKTOP DSP1-1005

Lanberg Switch DSP1-1005 5-PORT 1GB/S DESKTOP DSP1-1005

Description:

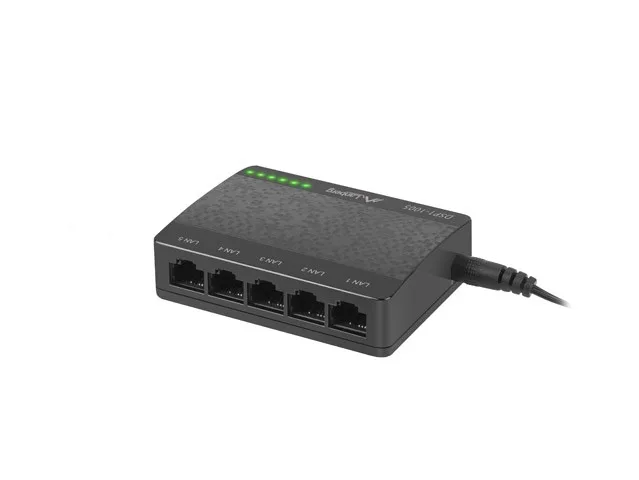

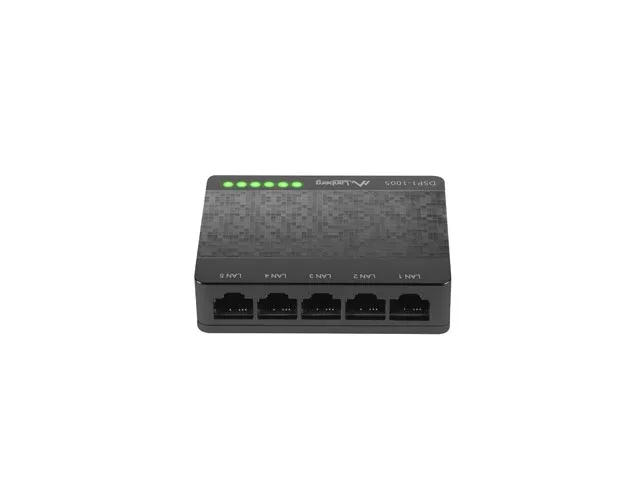

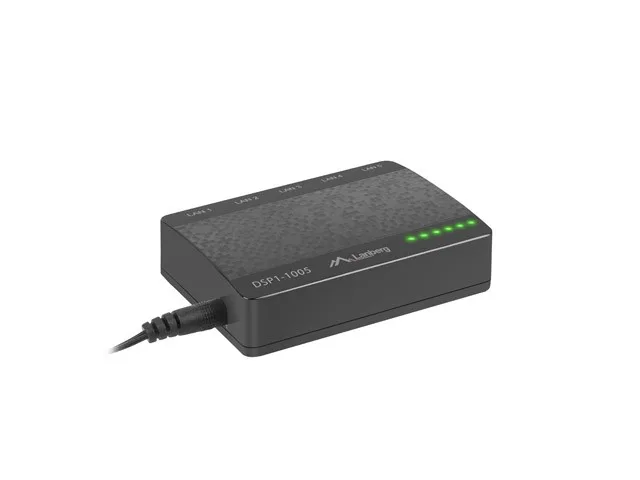

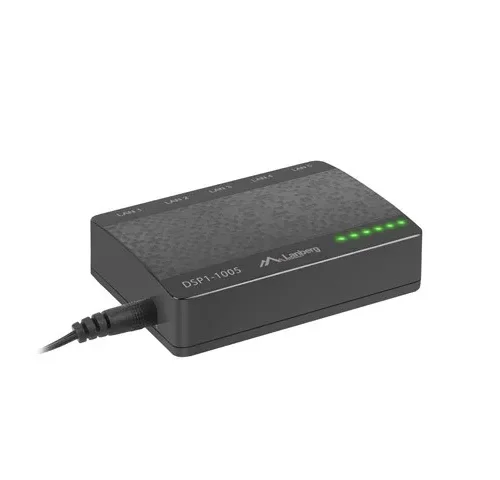

Lanberg DSP1-1005 is a small unmanaged desktop switch, equipped with 5 Gigabit Ethernet ports. The device is small and handy and operates on the principle of Plug & Play. The switch provides support for switching functions for 5 RJ-45 10/100/1000 Mbps ports with automatic connection negotiation and MDI-MDIX support.

The Lanberg switch is ideal for use in home environments due to its very small size and the use of quiet cooling. Black colors and elegant slim casing make the device suitable for almost any interior. The device is suitable for office applications, including SOHO and SMB. The switch also provides adequate performance, meeting the requirements set by users in the switch segment.

The function of automatic recognition and adaptation to the type of connected network cable (straight or crossover), eliminates the need to use only one type of cabling, as well as uplinks, allowing simultaneous reduction of unnecessary costs. The switch supports half-duplex and full duplex mode for connections between devices. The Flow control function allows for data flow control, thus avoiding a blockage on the port when one of the receiving devices is unable to receive enough data.

The Lanberg switch guarantees a combination of high quality, automation and a range of functionalities that ensure the device’s operation without any excessive user interference.

Features and functionalities:

• 5 RJ-45 ports 10/100/1000 Mbps with automatic connection negotiation
• Plug-and-play – a device that does not require any additional configuration
• Support for MDI / MDIX functionality, MAC-learning, MAC-aging
• IEEE 802.3az support (economical Ethernet)
• Flow control function: back pressure @ half-duplex and IEEE 802.3x @ full duplex
• Topology: Star
• Protocol: CSMA / CD
• MAC address table support: 2K
• Switching bandwidth: 10.0 Gbps
• Passive cooling for silent operation of the switch
• Holes for wall mounting
