Description:

Intellinet 561082 – Gigabit Switch, 5 RJ45 PoE Passthrough ports, powered by PoE or from an AC socket, total PoE power up to 68W

• The switch can be powered by a PoE power supply or PoE switch, or by the included AC power supply
• Provides power to up to 4 PoE network devices
• Doubles the connection distance between PoE devices from 100 meters to 200 meters
• It saves time and money by using existing network cables for power and data transmission
• 10/100/1000 ports with automatic detection of optimal network speed
• RJ45 PoE/PoE+ output ports compliant with IEEE 802.3at/af
• Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length
• The total PoE power is 68W when the switch is powered by an AC power supply
• The total PoE power is 26W when the switch is powered via a PoE power supply/switch
• Maximum output power up to 30W per port
• Works with PoE devices compliant with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, network cameras)
• Supports IEEE 802.3 at/af detection and protection against short circuit, overload and overvoltage
• MDIX autocrossing on all RJ-45 ports (auto uplink)
• Store and forward switching architecture
• Supports IEEE 802.3x full duplex flow control
• MAC address table up to 2048 entries
• 256 KB memory buffer

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 5
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 10 Gigabajty na sek.
Memory buffer: 256 Kilobajt
MAC address table size: 2048
VLAN:
Supported protocols and standards:

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Skrętka Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Typu 1)
• IEEE 802.3at (Power over Ethernet 802.3at Typu 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (kontrola przepływu, dla trybu full duplex)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Fan : No
Power consumption: 75 Watt
Environment requirements:

• Operating temperature: 0 – 40°C
• Storage temperature: 0 – 70°C
• Operating humidity: 10 – 90% RH, non-condensing

Certificates:
Accessories included:

• PoE Powered Gigabit Switch, 5 Port with PoE Passthrough
• Charger
• Power cable
• User manual

Power supply:

AC adapter included:

• Input voltage: 100 – 240V AC, 50 – 60 Hz, 2.5A
• Output voltage: DC, 51V, 1.5A
• Total PoE power: 68W (maximum)
• Power consumption: 75 W (maximum)

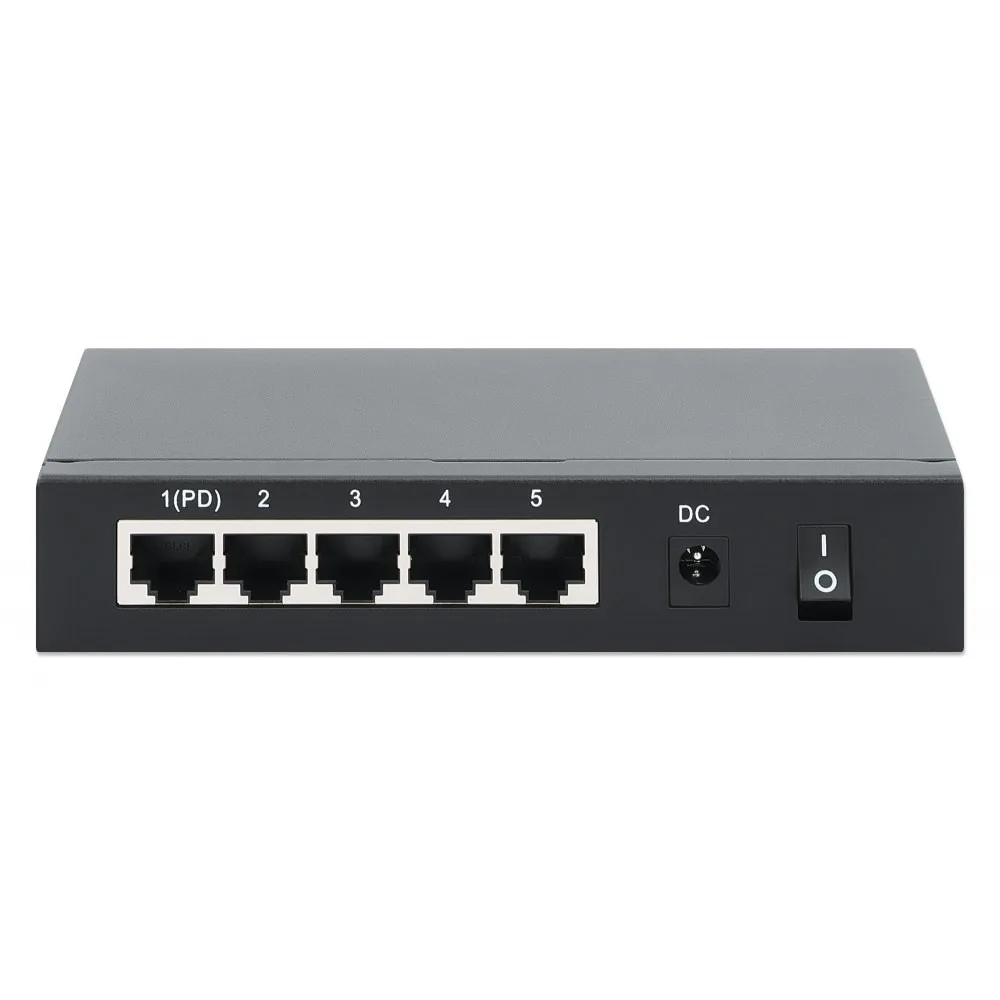

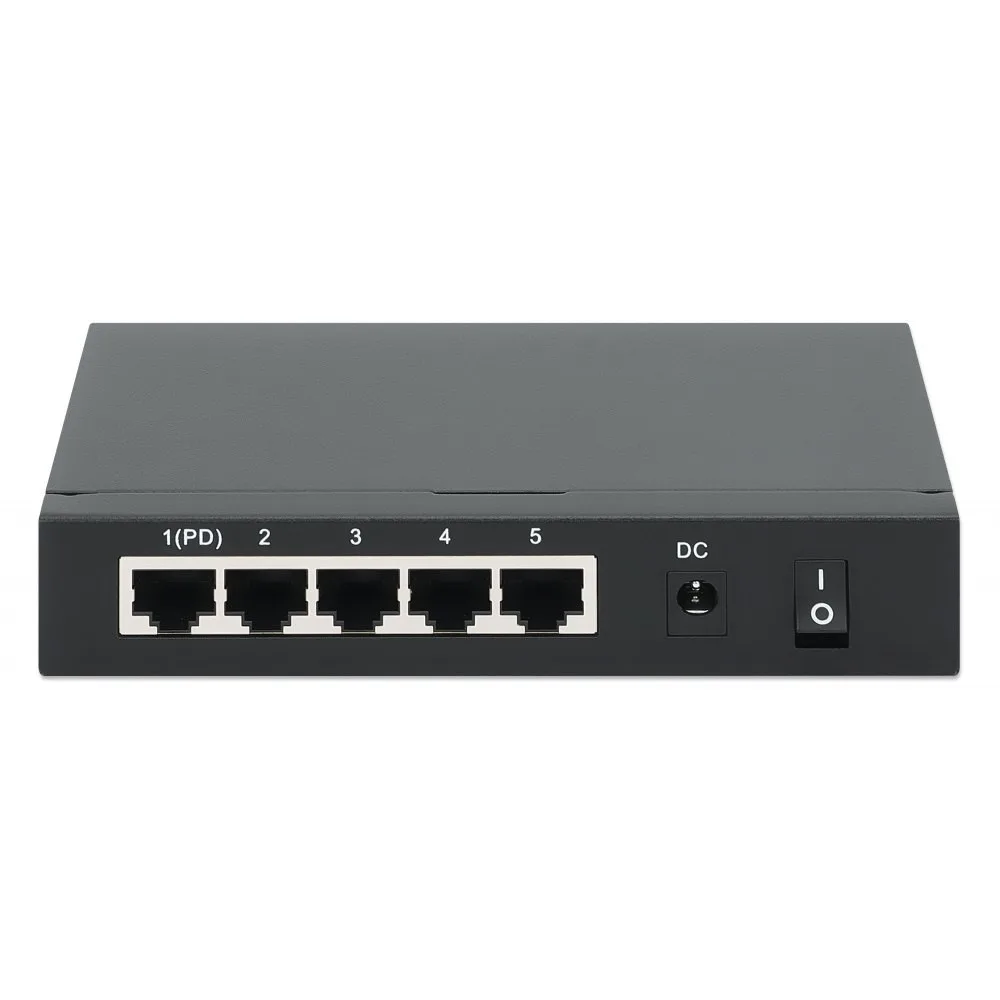

PoE PD port (RJ45 port no. 1):

• Input voltage: IEEE 802.3af/at compliant
• Total PoE power: 26W (maximum)
• Power consumption: 30W (maximum)

Dimensions:

78 x 140 x 28 mm

Weight: 600 gram
Other features:

Broadcast media:

• 10Base-T Cat3, 4, 5 UTP/STP RJ-45
• 100Base-TX Cat5 UTP/STP RJ-45
• 1000Base-T Cat5e UTP/STP RJ-45

Packet transfer/filtering speed:

• 1,488,000 p/s (1000 Mb/s)
• 148,800 p/s (100 Mbps)
• 148,800 p/s (100 Mbps)

MAC address table with up to 2048 entries

Memory buffer: 256 kB

• Bus bandwidth: 10 Gb/s
• Switching architecture: store and forward
• Certifications: FCC Class B, CE, RoHS
