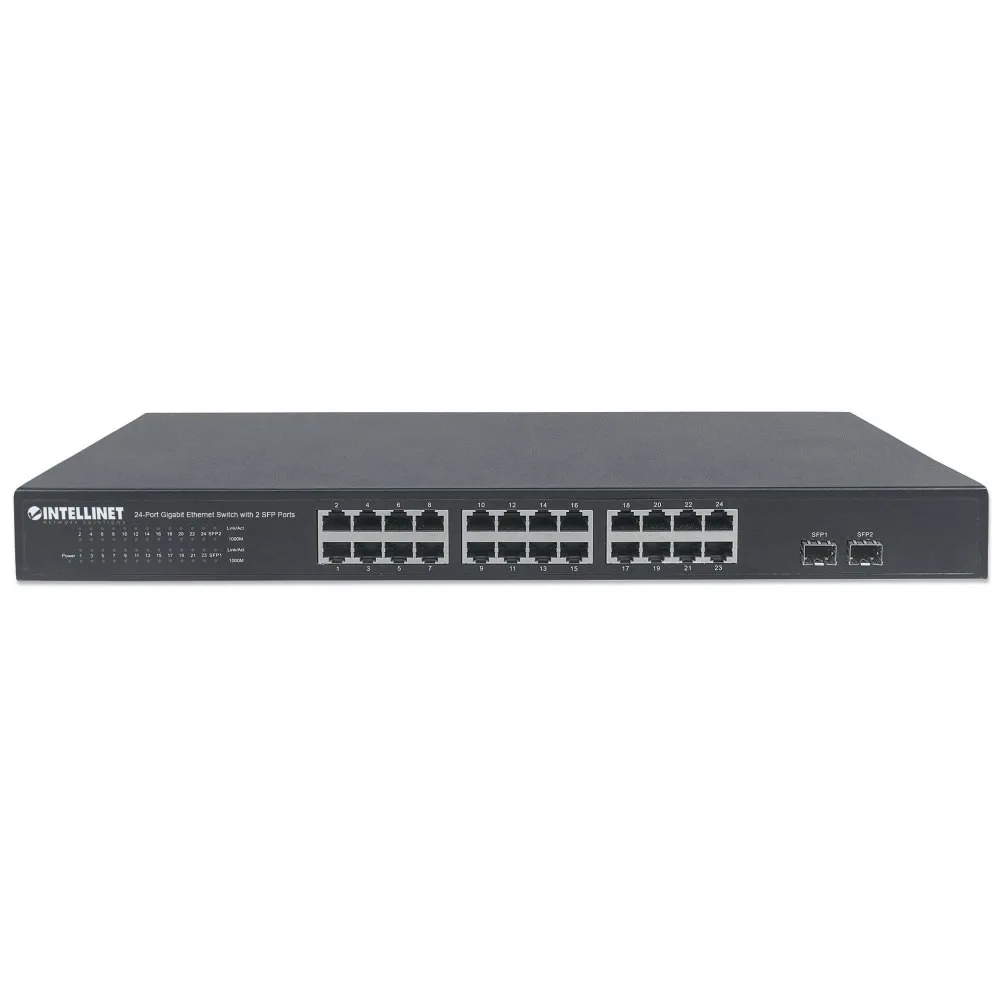

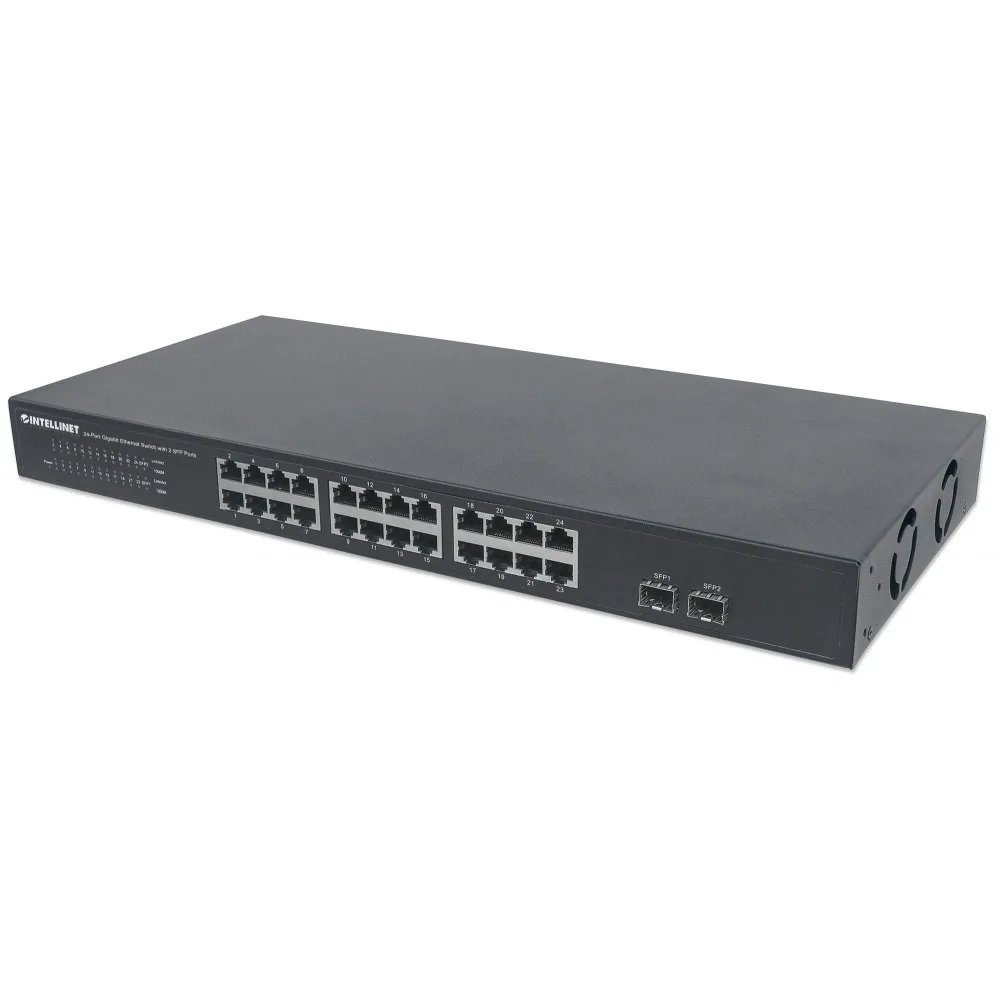

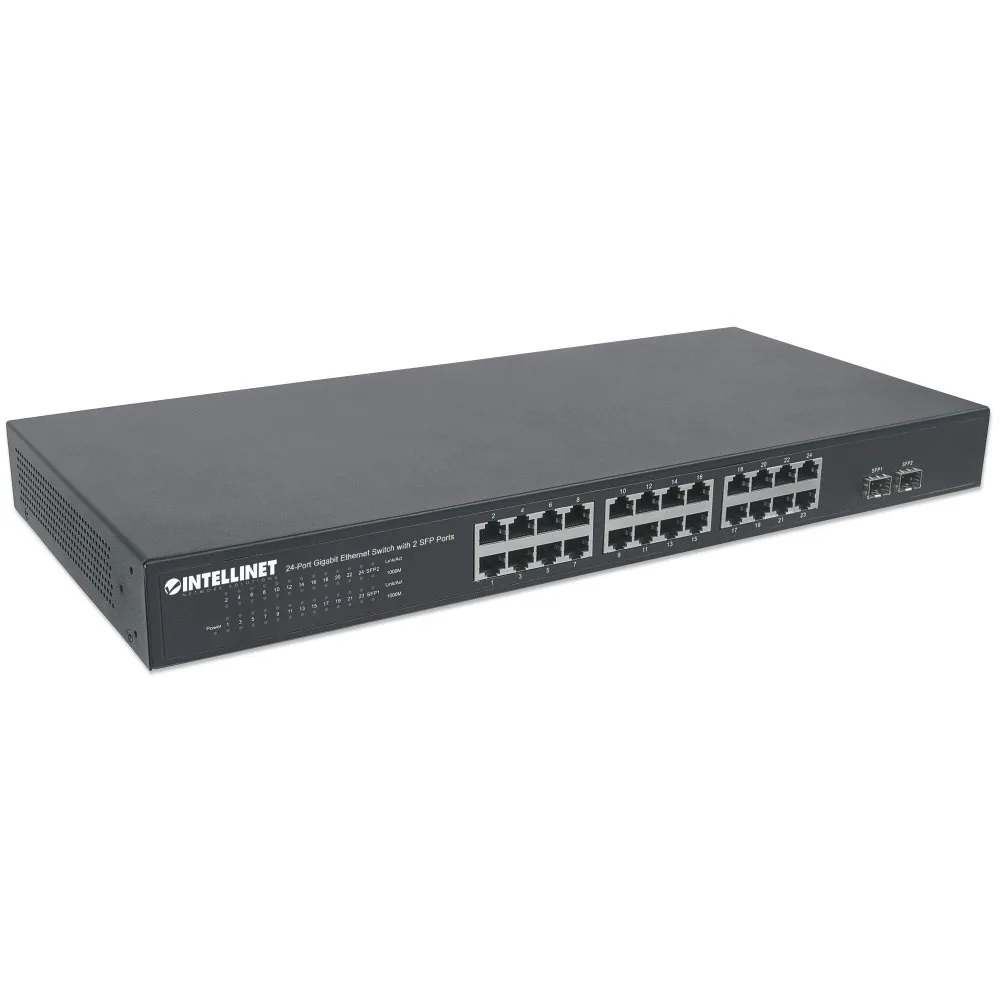

Intellinet Switch Intellinet Gigab it 10/100/1000 24 SFP

Intellinet Switch Intellinet Gigab it 10/100/1000 24 SFP

Description:

Switch 10/100/1000 GIGA 24 SFP

Increase network performance

The Intellinet 561044 Gigabit Switch offers a range of features to ensure excellent network throughput.

Extreme flexibility

Twenty-four gigabit RJ45 ports automatically detect optimal network speeds.

Maximum throughput

With 26 gigabit ports: 24 RJ45 ports and 2 ports for GBIC modules, the switch offers high performance for computers, servers and other network devices. Two GBIC (SFP) module slots provide fiber optic connectivity over longer distances. These are not common combo ports, but true Gigabit ports with a total bandwidth of up to 52 Gbps.

• 24 Gigabit RJ45 Ethernet ports (10/100/1000) with automatic detection of optimal network speed
• 2 GBIC (SFP) module slots
• Auto-crossing MDIX connections (auto uplink) on each port
• NWay automatic negotiation support
• Store and forward switching architecture
• Full/half duplex modes
• Compliant with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power saving technology deactivates unused ports and adjusts power levels based on Ethernet cable length
• Supports 802.3x flow control for full duplex and „collision-based backpressure“ for half duplex
• Support for Jumbo frames up to 9 kB
• Memory buffer 512kB
• MAC address table up to 8,192 entries
• Quiet operation – fanless design
• Supports auto-learning and auto-aging MAC addresses

Switch class: Managed
Application: Medium and large companies
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 24
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 52 Gigabajty na sek.
Memory buffer: 512 Kilobajt
MAC address table size: 8192
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (full duplex flow control)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 20 Watt
Environment requirements:

• Operating temperature: 0-40°C
• Operating humidity: 1090%, non-condensing
• Storage temperature: -10-70°C

Certificates:
Accessories included:

• Gigabit Ethernet switch
• Power cord

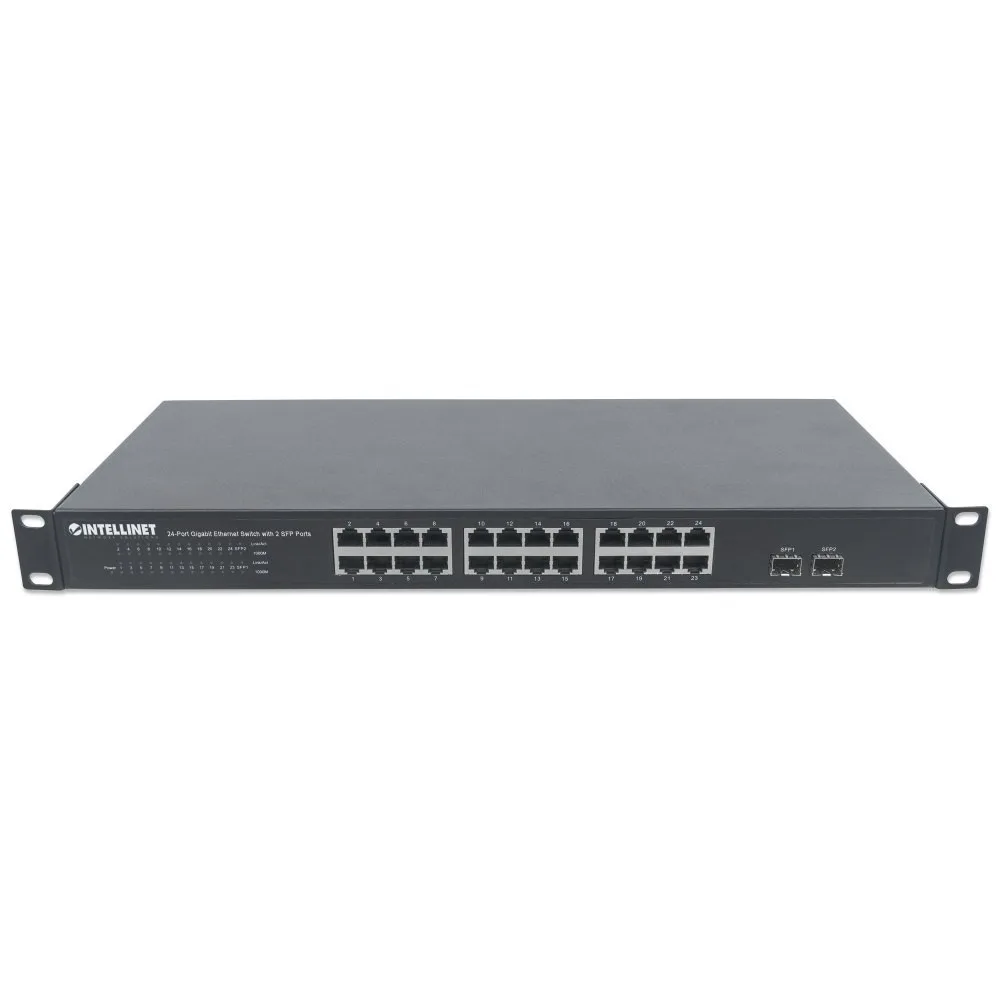

• Rack 19″ standard mounting brackets
• User manual

Power supply:

Internal power supply 100-240V AC, 50/60 Hz

Dimensions:

440 x 208  x 44 mm

Weight: 3 kilogram
Other features:

Broadcast media:

• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45

Packet transfer/filtering speed:

• 1,488,000 pps (1000 Mbps)
• 148,800 pps (100 Mbps)
• 14,880 pps (10 Mbps)

Buffer memory: 512 kB

MAC address table: 8,192 entries

Bus speed: 52 Gbps

• 24 RJ45 Gigabit Ethernet ports
• 2 SFP slots (Small Formfactor Pluggable)
• Certificates: FCC class A, CE
