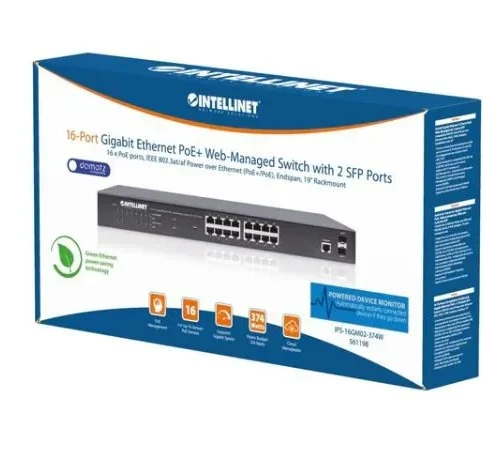

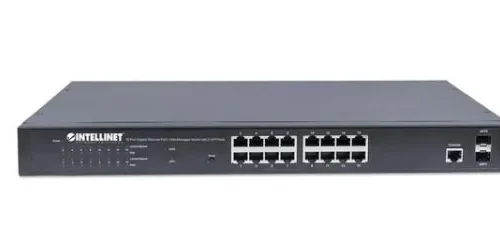

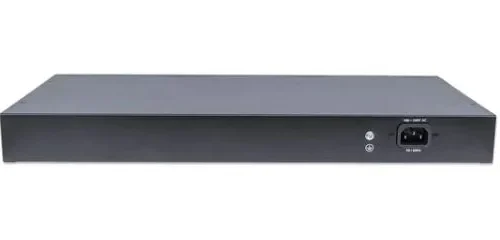

Intellinet Switch Gigabit managed 16x RJ45 PoE+/2 slots SFP

Intellinet Switch Gigabit managed 16x RJ45 PoE+/2 slots SFP

Description:

16-Port Managed Gigabit Ethernet PoE+ Switch with 2 SFP Slots

Compliant with IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 374W, Endspan, 19″ rack

The most important thing

• It enables power supply and data transmission of up to 16 PoE network devices
• It saves time and money by using existing network cables for power and data transmission
• Powered Device Monitor (PDM) restarts any connected PoE device that is not responding or sending network traffic information.

Switch class: Managed
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 16
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 16
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: 2
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 36 Gigabity na sek.
Memory buffer: 512 Kilobajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.1d (Spanning Tree Protocol)
• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.1w (Rapid Spanning Tree Protocol)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation Control Protocol LACP)
• IEEE 802.3az (Energy Efficient Ethernet EEE) (can be deactivated)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : External
Power consumption: 410 Watt
Environment requirements:

• Operating temperature: 0 – 40°C
• Humidity: 10-90% RH, non-condensing
• Storage temperature: -20 – 90°C

Certificates:

• FCC Class A,
• CE

Accessories included:

• 16-Port Managed Gigabit Ethernet PoE+ Switch with 2 SFP Slots
• Quick installation guide
• Power cable
• User manual
• 19″ mounting brackets

Power supply:

Input voltage: 100 – 240V AC, 50/60 Hz

Dimensions:

440 x 208 x 44 mm

Weight: 2.5 kilogram
Other features:

• It enables power supply and data transmission of up to 16 PoE network devices
• It saves time and money by using existing network cables for power and data transmission
• Powered Device Monitor (PDM) restarts any connected PoE device that is not responding or sending network traffic information.
• Compatible with Domotz software (may require updating)
• 10/100/1000 ports with automatic detection of optimal network speed
• Equipped with two slots (SFP) for GBIC modules
• RJ45 PoE/PoE+ output ports compliant with IEEE 802.3at/af
• Cooperation with PoE devices compliant with IEEE 802.3at and 802.3af (wireless access points, VoIP phones, network cameras)
• Supports IEEE 802.3 at/af detection and protection against short circuit, overload and overvoltage
• All RJ45 ports have MDIX auto-crossing and NWay auto-negotiation
• Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Possibility to disable IEEE 802.3az (Energy Efficient Ethernet EEE)
• Configuration of PoE functions, including PoE management on the port, priority, delayed activation, PoE schedule, restart, PoE monitoring
• SNMP management and remote RMON monitoring
• SNMP V1, V2C, V3 protocol, support for 4 RMON groups 1, 2, 3 & 9
• Support for IPv4/v6 protocols
• VLAN support based on tags or ports (tag-based, port-based)
• IEEE 802.1x port-based authentication
• Port aggregation (trunking)
• Bandwidth management for all ports
• Port mirroring mode support
• Support for two types of QoS: port-based and DSCP
• „Broadcast storm control“ function with the ability to set the „multicast“ packet flow
• Support for Rapid Spanning Tree/Spanning Tree protocols
• Switch in Store and Forward architecture
• Full/half duplex modes
• Supports IEEE 802.3x full duplex flow control
• Configuration via web browser, Telnet or SSH
• Remote Restart
• Signaling diodes: power, link/activity and PoE
• Two high-performance fans ensure perfect ventilation
• Fully NDAA compliant
