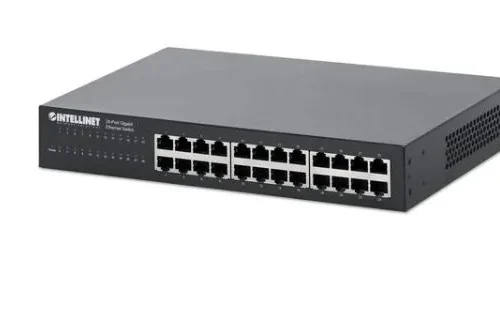

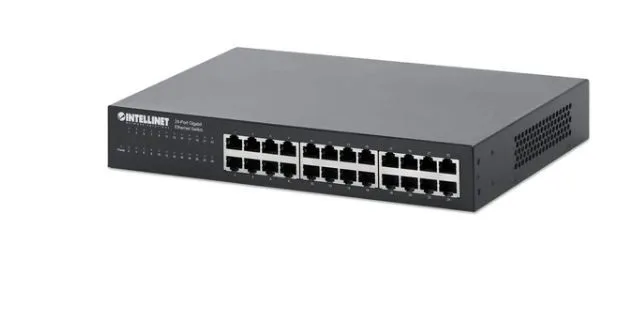

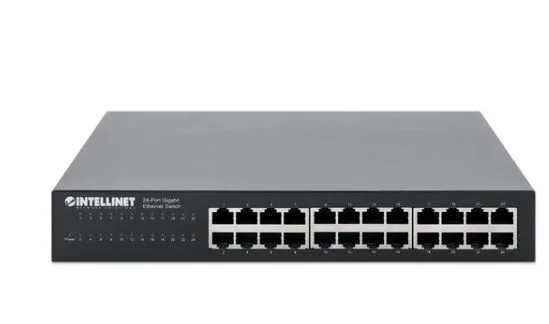

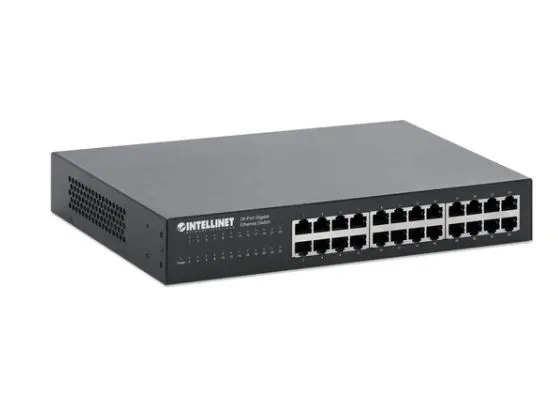

Intellinet Switch Gigabit 24x 10/100/1000 RJ45 Desktop/Rack

Intellinet Switch Gigabit 24x 10/100/1000 RJ45 Desktop/Rack

Description:

• 10/100/1000 ports with automatic detection of optimal network speed
• Auto-MDIX (auto uplink) support on all RJ45 ports
• For use as a desktop switch or for mounting in a 19″ rack
• NWay autonegotiation support
• Store and Forward switch architecture
• Full/half duplex mode
• Support for 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length
• Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Bus bandwidth 48 Gbps
• Support for jumbo frames up to 9 KB
• MAC address table with up to 16k entries
• Memory buffer 512kB
• MAC address support with auto-learning and auto-aging functions
• Fanless design ensures quiet operation
• 19″ rack mounts included
• Fully NDAA compliant

Switch class: Unmanaged
Application: Medium and large companies
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 24
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 48 Gigabity na sek.
Memory buffer: 512 Kilobajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet twisted pair)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (full duplex flow control)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 16 Watt
Environment requirements:

• Operating temperature: 0 – 40°C
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20 – 70°C

Certificates:

• FCC Class A,
• CE

Accessories included:

• 24-Port Gigabit Ethernet Switch
• Rack mounts
• Power cable
• User manual

Power supply:

Internal power supply: 100 – 240V AC, 50/60 Hz

Dimensions:

180 x 280 x 44 mm

Weight: 2.6 kilogram
Other features:
Designation:
