Description:

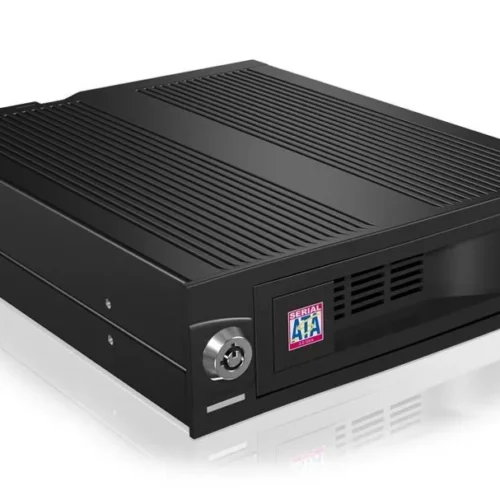

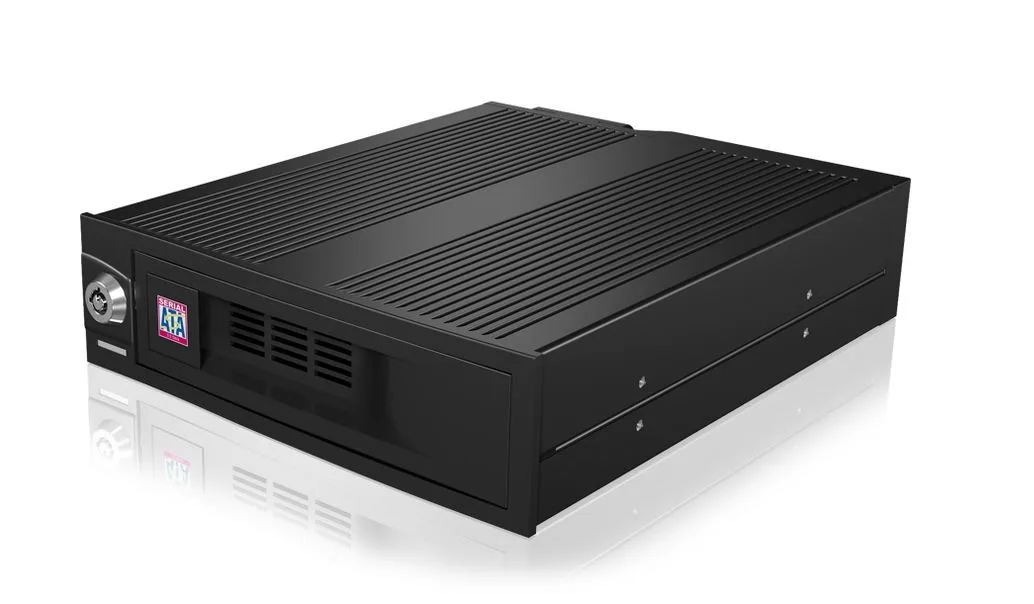

IB-170SK-B Pocket for 3.5″ SATA hard drives
Functions:
– Fast assembly and installation of hard disk, without installing drivers
– Supports all 3.5″ SATA 1.5/3.0/6.0 Gb/s formats (height up to 1″)
– Installation in the bay 5.25″
– Special aluminum housing for better heat dissipation
– Supports Hot Swap and Plug & Play
– Rubber pads reduce vibration and hard disk noise
– NSS allows disk replacement up to 50,000 times
– The lock protects against unauthorized access

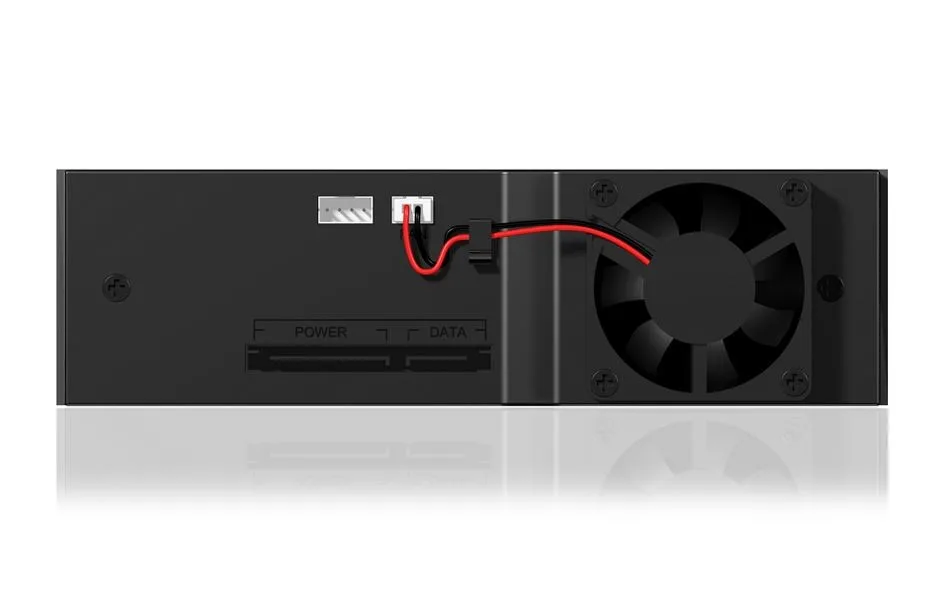

– Fan 40x40x10 mm, works during disk operation
A breath of freshness
This pocket has an improved, more efficient cooling system. First of all, the new aluminum housing dissipates heat and is also very durable. In comparison to the previous model, the fan was enlarged from 3 cm to 4 cm. The higher efficiency of the fan, by as much as 70%, ensures lower revs and therefore quieter operation as well as longer life.
Hard drives and speeds
The pocket is mounted to a standard 5.25″ jack and can accommodate a 3.5″ SATA hard drive. However, the maximum disk height should not exceed one inch (1 „). Data can be transmitted at up to 6 Gb/s using the NSS (Non Scratch SATA) connection (SATA I, II, III).
High quality and improvements
The housing is made entirely of aluminum, which ensures a better flow of cooling air. The built-in fan is bigger than its predecessor – from 3 cm to 4 cm, that’s why ventilation is 70% more effective and the fan allows for quieter operation. In addition, the use of rubber inside the pocket, reduces vibration and ensures sound attenuation.
Data safety
The hard disk can be comfortably replaced with the help of Hot Swap and Plug & Play. The key lock ensures that unauthorized persons do not have access to the drive. The LED simultaneously informs about power supply and access to the disk (read/write).
Type: Internal enclosure
Form factor (width): 3,5“ (LFF)
HDD interface: SATA II – 3 Gb/s
HDD interface: SATA III – 6 Gb/s
HDD interface: SATA I – 1,5 Gb/s
Connectors: SATA
Stuff: Aluminum
Color: Black
Dimensions:
145 x 41 x 191 mm
Weight: 516 gram
Accessories included:
– IB-170SK-B pocket
– Power cable
– SATA cable
– 2 keys
– A set of screws
– User manual
Other features:
