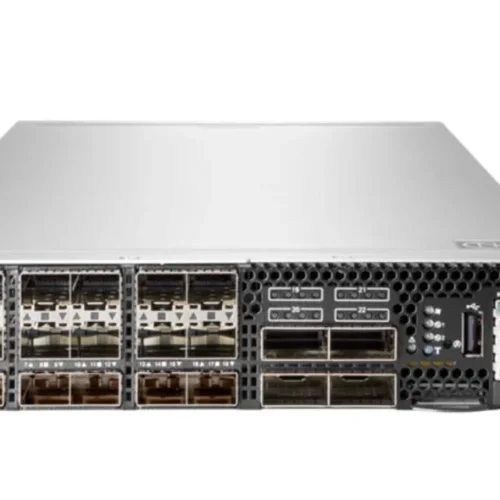

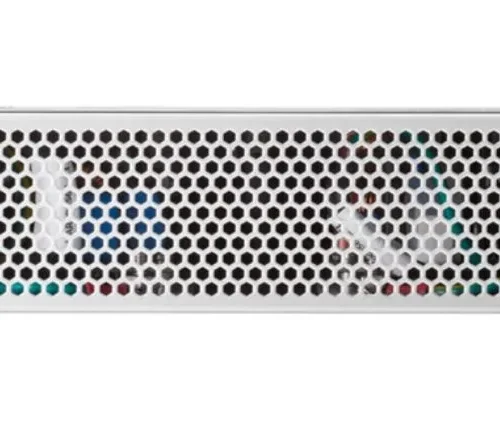

Hewlett Packard Enterprise Storage Switch M-series 18SFP28 4QSFP28 P2C SN2010M w/NVD S2T75A
Description:
Switch class: Unmanaged
Application: Medium and large companies
Switch layer: L2
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 4
10/100/1000/2500 Mbps ports: 18
Number of SFP+ ports: None
SFP28 ports: 18
Throughput: 1.7 Terabajty na sek.
Packet buffer: 16 MegaBajt
Support for Jumbo frames: Yes
VLAN:
Supported protocols and standards:
QoS:
- Link PAUSE
- Classification based on Class of Service (CoS) (IEEE 802.1p) or DSCP (queuing, scheduling-DWRR and Strict Priority – and buffer allocation)
- Ingress ACL-based classification/policing
- Priority flow control and explicit congestion notification (ECN)
- Dynamic buffer configuration as default
Security:
- Access control lists (ACLs) L2-L4 classification through IP/EP tables and CPU protection through hardware enforced ACL-based rate limiting DoS control
- Authenticate and authorize attached devices with 802.1x
- Kernel Address Space Randomization
Management, monitoring, configuration:
- The switch hardware abstraction layer accelerates Linux kernel networking constructs in hardware, including the routing table, ARP table, bridge FOB, IP/EB tables, bonds, VLANs, and VXLAN bridges
- Hardware management also includes jumbo frames support and environmental management
- Forwarding table profiles on the ASIC provide flexible partitioning of resources
L2 features:
- Bridge management with STP (IEEE 802.1d). RSTP (IEEE 802.1w), PVRST, PVST, bridge assurance, BPDU guard, and BPDU filter
- VLANs. VLAN trunks (IEEE 802.1q). LACP (IEEE 802.3adl. LACP bypass, unicast/broadcast storm control, LLDP, CDP, IPv6 neighbor discovery, and IPv6 route advertisement
- MLAG (cladg daemon)
- IGMPv2/v3 snooping, MLDv1/v2 snooping, Optimized Multicast Flooding (OMF)
- Virtual router redundancy (VRR – active-active first hop redundancy protocol)
- LLDP DCB IEEE TLVs
L3 features:
- IPv4/v6 routing suite including OSPFv2, OSPFv3, and BGPv4/v6
- RDMA over Converged Ethernet (RoCEv2) support for Layer 2 and Layer 3
- Virtual routing and forwarding (VRF) and VRF route leaking
- Equal-cost multi-path (ECMP) and ECMP resilient hashing for IPv4 and IPv6 traffic
- Bidirectional forwarding detection (BFD) across all platform and interface types, IPv4 and IPv6, BGP and OSPF, VXLAN, BGP conditional route advertisement
- Protocol-independent multicast (PIM, PIM-SM, PIM-SSM)
- Policy-based routing
- Generic routing encapsulation (GRE) tunneling
- Precision time protocol (PTP) Boundary Clock
- VNI scaling: supports 6 bridges with up to 1,000 VNls
- GTP Hashing
- Adaptive Routing with RoCEv2
Other functions:
Chassis type: Rack
Fan : No
Power consumption: 66 Watt
Environment requirements:
Certificates:
Accessories included:
захранващ блок:
Dimensions:
Weight: 4.5 kilogram
Other features:
Designation:
