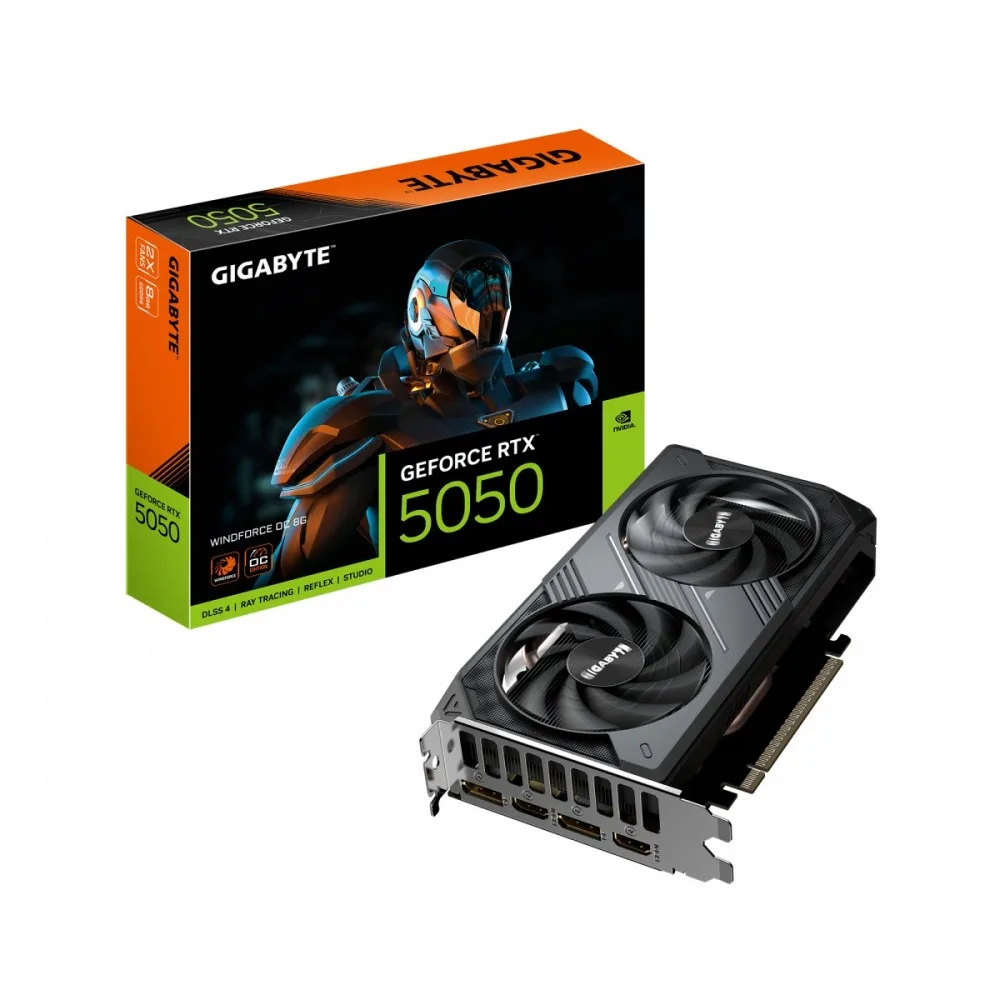

Gigabyte видео карта GeForce RTX 5050 WINDFORCE OC 8G DDR6 2HDMI/2DP

Gigabyte видео карта GeForce RTX 5050 WINDFORCE OC 8G DDR6 2HDMI/2DP

Description:

GeForce RTX 5050 WINDFORCE OC 8G

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX 5050
• Integrated with 8GB GDDR6 128bit memory interface
• WINDFORCE cooling system: Hawk fan, Server-grade Thermal conductive gel
• Reinforced structure

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE

• ULTRA COOLING – Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
• LOW POWER LOSS – Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
• LONGER LIFE – Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Model:

GeForce RTX 5050



Graphics card connector: PCI-E 16x ver. 5.0
Chipset manufacturer : NVIDIA
Chipset: GeForce RTX 5050
Memory type : DDR6
Memory bus: 128-bit
VRAM memory size: 8 GigaBajt
Core frequency: 2587 MHz
Memory frequency: 20 Gbps
CUDA Core: 2560

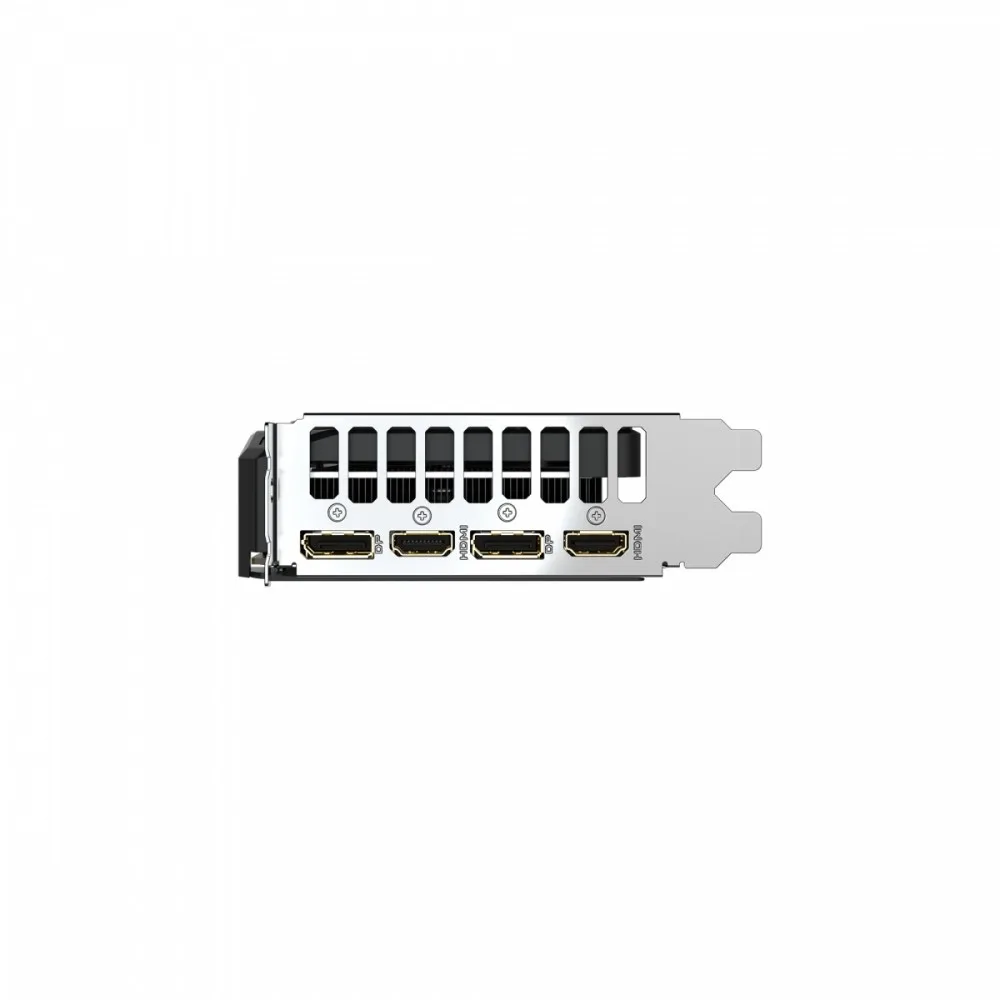

Video ports: 2 x HDMI
Video ports: 2 x DisplayPort
Cooling : Active
Number of fans: 2
Supported standards: DirectX 12 API
Supported standards: OpenGL 4.6
Other features:
Accessories included:
Dimensions:

40 x 116 x 199 mm

Version: Box
Designation:
