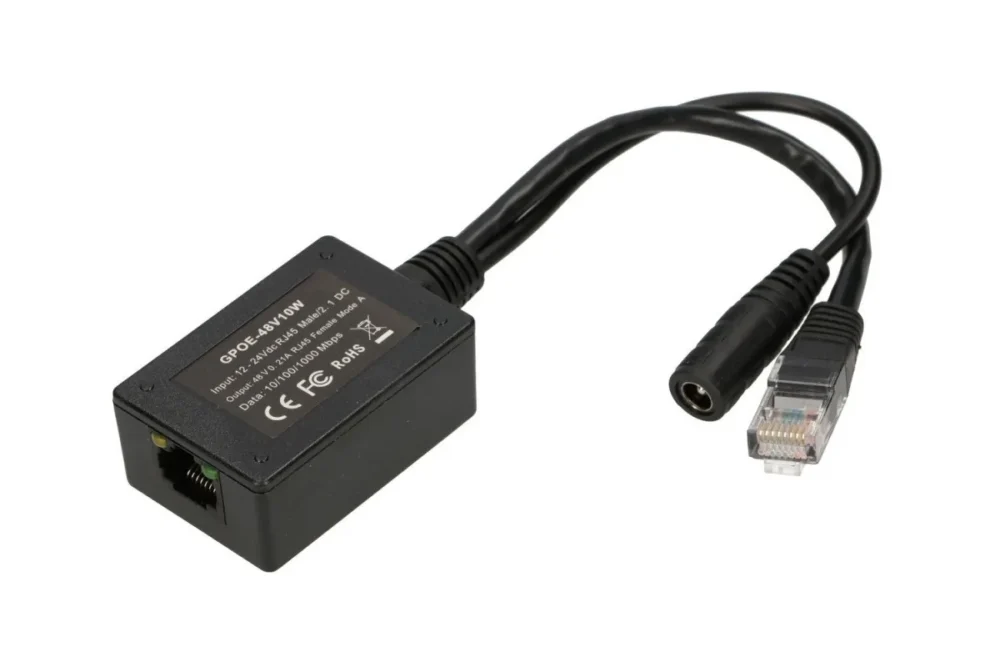

Extralink PoE inverter 1-port 48V EX.14671

Extralink PoE inverter 1-port 48V EX.14671

Description:

Extralink 1 Port PoE Inverter Input 1x 1000Mbps RJ45/Jack 10-30V, Output 48V

Poe injector allows you to supply power to a 10/100/1000mbps network on an Ethernet CAT5e, CAT6 or CAT6A network cable. The power source can be any power supply from 10 V to 30 V, and the output voltage of the injector is 48 V. The PoE adapter can be powered from the DC jack 5.5/2.1 mm – or from the pins of the RJ45 plug – 4.5 + (plus) and 7.8 – (minus). Thanks to the poe injector, a battery (12V or 24V) or passive PoE (10V-30V) can be used to power a 48V device.

If power is connected to the 2.1mm DC jack input – the power will be isolated from the male RJ-45 connector – so it can be connected to a switch or router. 48V output voltage is supplied to pins 3.6 + (plus) and 1.2 – (minus) of the RJ-45 female jack to power any 802.3af device. Both the voltage with which the receiving device is powered and the pins on which power over ethernet works are changed.

Connectors: 2,1 mm jack
Connectors: 2 x RJ-45
Compatible with:
Power supply:
Color: Black
Dimensions:
Accessories included:
Other features:

• Automatic MDI/MDI-X
• LEDs
• Easy installation
• Plug & Play support
• Supported cable types: Cat5e, Cat6, Cat6a
• Power over Ethernet: 48V
• Data transfer speed via Ethernet LAN: 10, 100, 1000 Mbps
• Communication standards: IEEE 802.1af, IEEE 802.3at
• Complies with industry standards: CE, RoHs

Designation:
