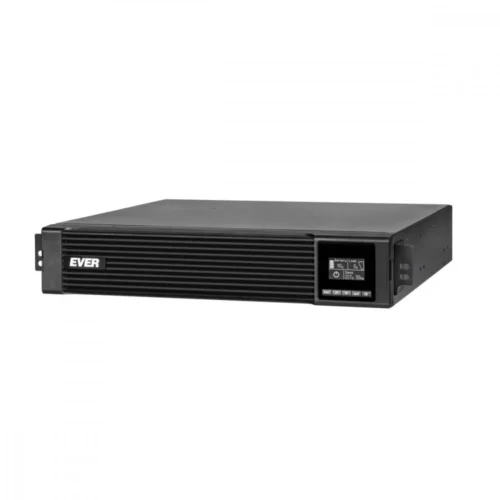

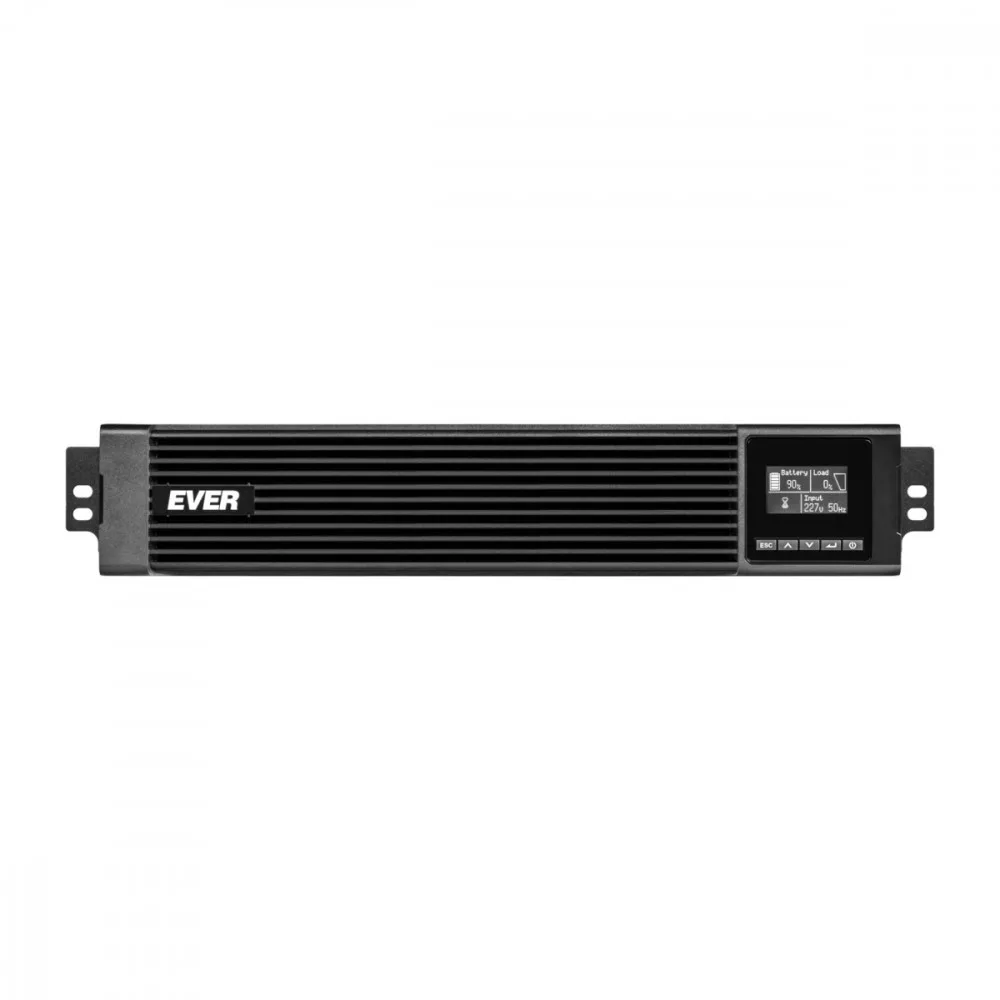

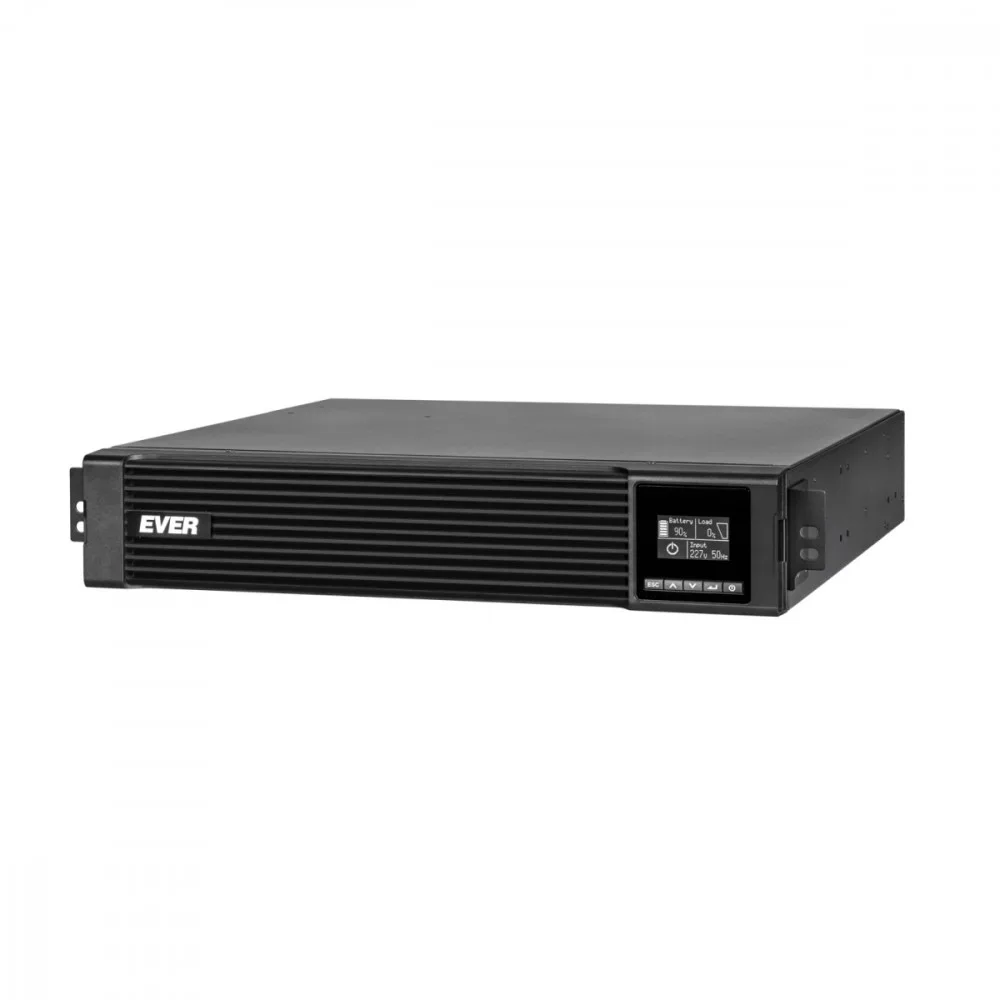

EVER UPS POWERLINE RT PRO 1kVA/1kW R2T

EVER UPS POWERLINE RT PRO 1kVA/1kW R2T

Description:

A series of technologically advanced on-line uninterruptible power system (UPS) systems (VFI), constructed in a double conversion topology, in which the output active power reaches the apparent power value. POWERLINE RT PRO series power supplies protect sensitive devices and systems against basic problems occurring in the power supply network, such as interruptions in electricity supply, voltage increases and dips, overvoltages and harmonic distortions. The main purpose of EVER POWERLINE RT PRO series power supplies is: network devices, servers, workstations, as well as other electrical, electronic and IT devices.

• Online operation with true double conversion, with sinusoidal output voltage (with the highest quality parameters VFI SS-111)
• Output active power equal to apparent power (PF=1)
• ECO mode reducing losses
• Rack/Tower case
• Backup time prediction – determination of the UPS autonomy time in real time – via PowerSoft software and on the display
• Wide window (range) of input voltage
• Ability to manage output sockets (1 section)
• Cold start
• Remote Emergency Power Off (EPO)
• ROO (Remote ON/OFF) function – ability to remotely turn on/off the power supply
• Possibility to extend the backup time by connecting external battery modules (up to 4 pieces)
• Automatic detection of the number of connected battery modules
• Free PowerSoft monitoring and management software (download)

Apparent power: 1000 VA
Active power: 1000 Watt
UPS Architecture: on-line
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 3
Voltage: 230 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 0 millisecond
Backup time (100% load): 6 Minute
Charging time: 3 Hour
Chassis type: Rack
Chassis type: Tower
Filters / protection: Overload
Filters / protection: Circuit
Filters / protection: Surge
Special functions:
Software:

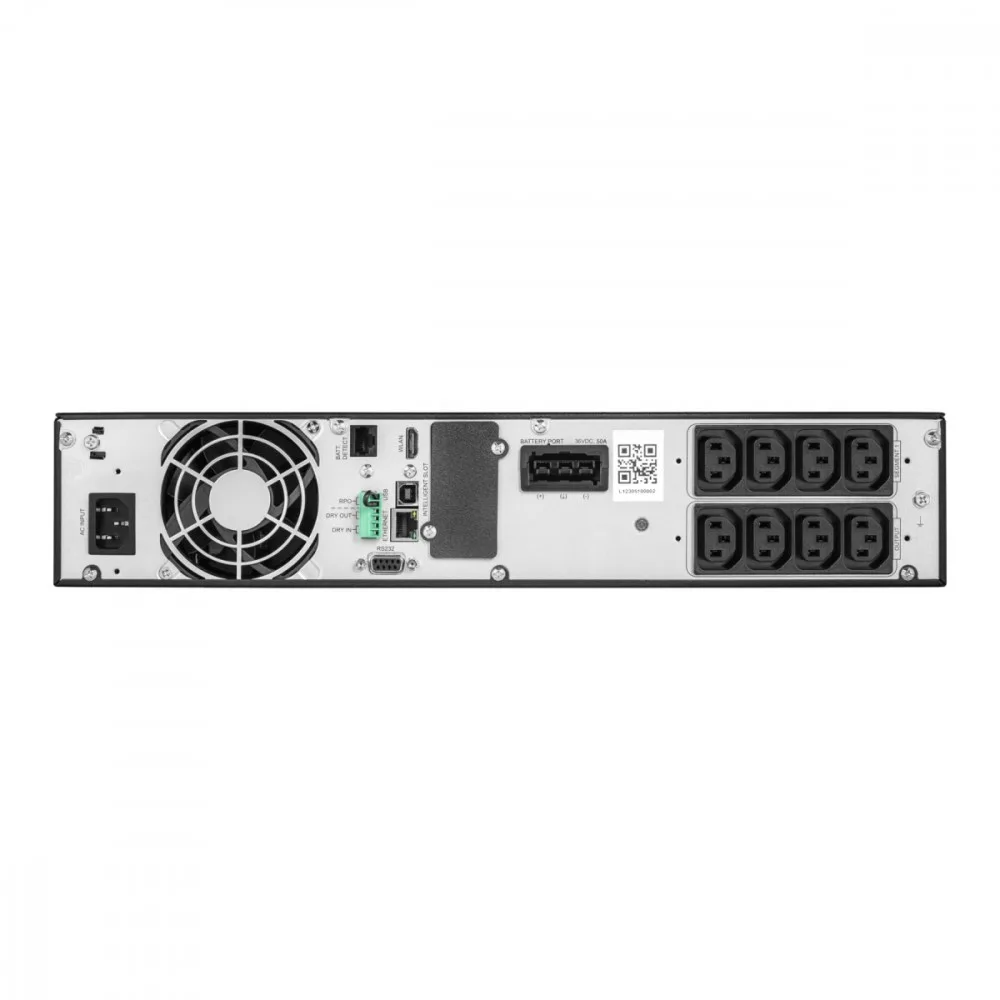

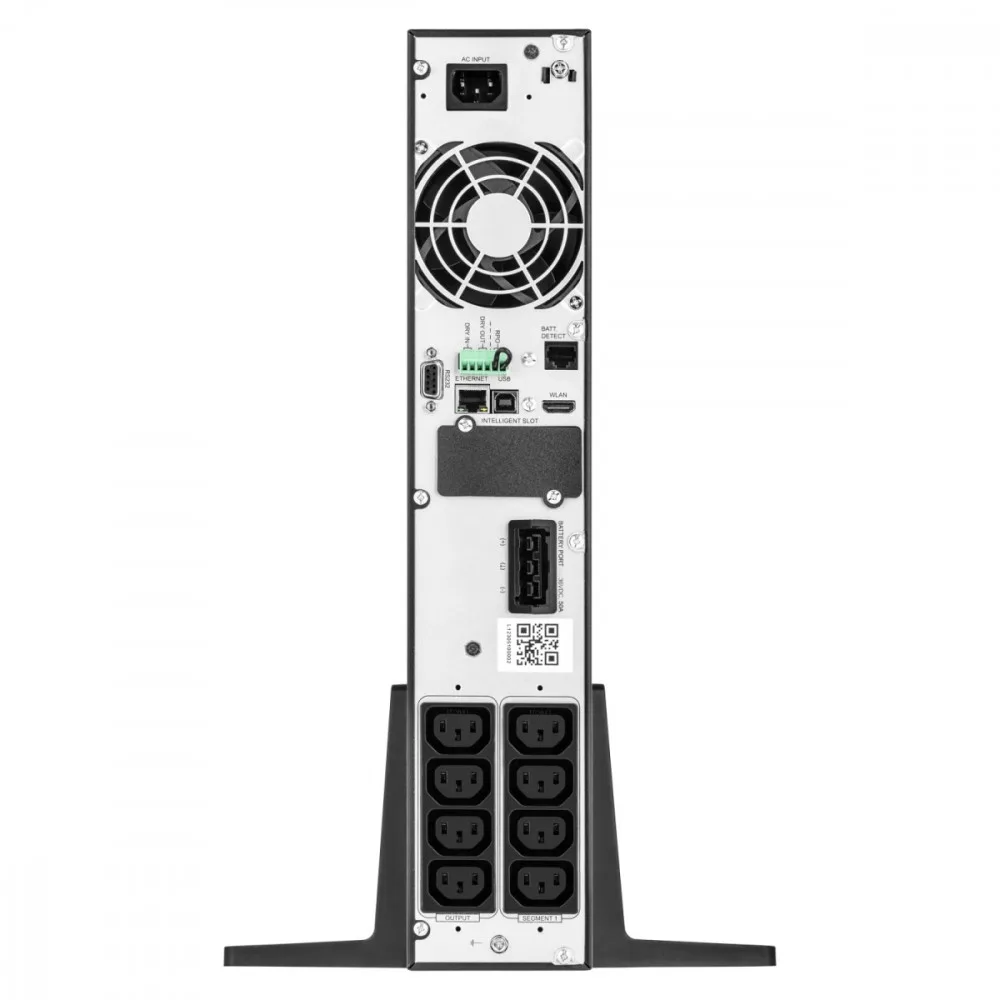

Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
I/O connectors: 1 x EPO
I/O connectors: 1 x RJ-45 LAN
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x HDMI
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RJ-45 (management)
Environment requirements:

• Operating temperature: 0 – 40°C
• Storage temperature: 0 – 40°C
• Relative humidity during operation: 95% non-condensing
• Relative storage humidity: 95% non-condensing
• Height above sea level: up to 3000m

Accessories included:
Color: Black
Dimensions:

86(2U) x 438 x 445 mm

Weight: 15.5 kilogram
Other features:

• Degree of protection: IP20
• Heat released for nominal operating conditions: 430 BTU/h

Designation:
