EVER EASYLINE 1200 UPS EVER

EVER EASYLINE 1200 UPS EVER

Description:

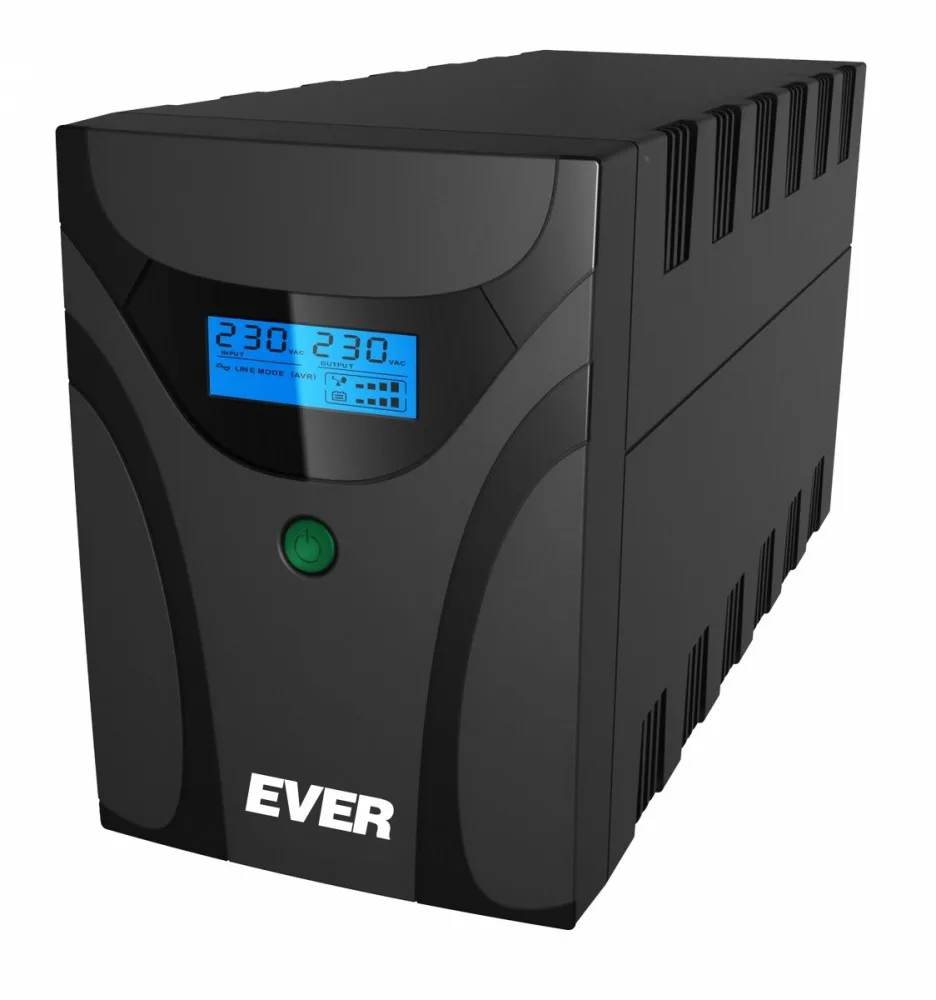

Emergency Power Supply Ever Easyline 1200 AVR USB

EASYLINE AVR USB UPSs provide cost-effective protection for your office and home PC hardware. This protects the attached devices from drops and power outages in the network for longer and more reliable operation. The main purpose of the EASYLINE AVR USB series power supply is to protect against uncontrolled power loss: PCs, DTP and workstations, fiscal systems, DTP systems and Internet telecommunication devices.

Application:
– PC computers
– Network and telecommunications equipment
– Multimedia devices
– Multifunction devices
– Automation, control and monitoring systems

The supplied series of power supplies are equipped with a USB communication interface and an automatic voltage regulation system AVR. The built-in LCD monitor allows continuous monitoring of input / output voltage, battery level and load of the power supply, and the cold start function is used to start the UPS without a mains connection.

Link to product card and user manual: http://ever.eu/product/pl/ups-ever-easyline-1200-avr-usb#tabDownloads-tab

Apparent power: 1200 VA
Active power: 600 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 2
Voltage: 12 Volt
Battery capacity: 7 Ah
Hold-up time (maks): 6 millisecond
Charging time: 6 Hour
Chassis type: Tower
Special functions:

– Automatic Voltage Regulation AVR
– Built-in LCD panel
– Microprocessor control of parameters
– French and IEC output sockets with emergency power back-up
– Automatic restart after return of power
– Charge new batteries and keep the battery charged
– Cold start
– USB connector
– LAN filter

Software:

PowerSoft Professional

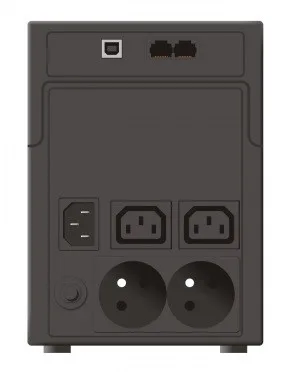

Input power ports: IEC-C14
Output power ports: 2 x IEC-C13
Output power ports: 2 x C/E type
Connectors: RJ-45
Connectors: 1 x USB (Typ B)
Environment requirements:

– Operating / Storage Temperature: 0 – 40 degrees Celsius
– Ambient humidity / storage humidity: 0 – 90% (non-condensing)
– Height up to 2000 m
– Degree of protection IP20

Accessories included:
Color: Black
Dimensions:

195 x 139 x 365 mm

Weight: 8.9 kilogram
Other features:

– Input: 230V AC 45-55Hz (170-280V AC)
– Output: 230V AC 50Hz (176 – 274V AC)
– Backup time 80/50%: 4.5 / 11 min
– Nominal voltage of DC circuit: 24V DC
– Data line filter: LAN 10/100 Base-T
