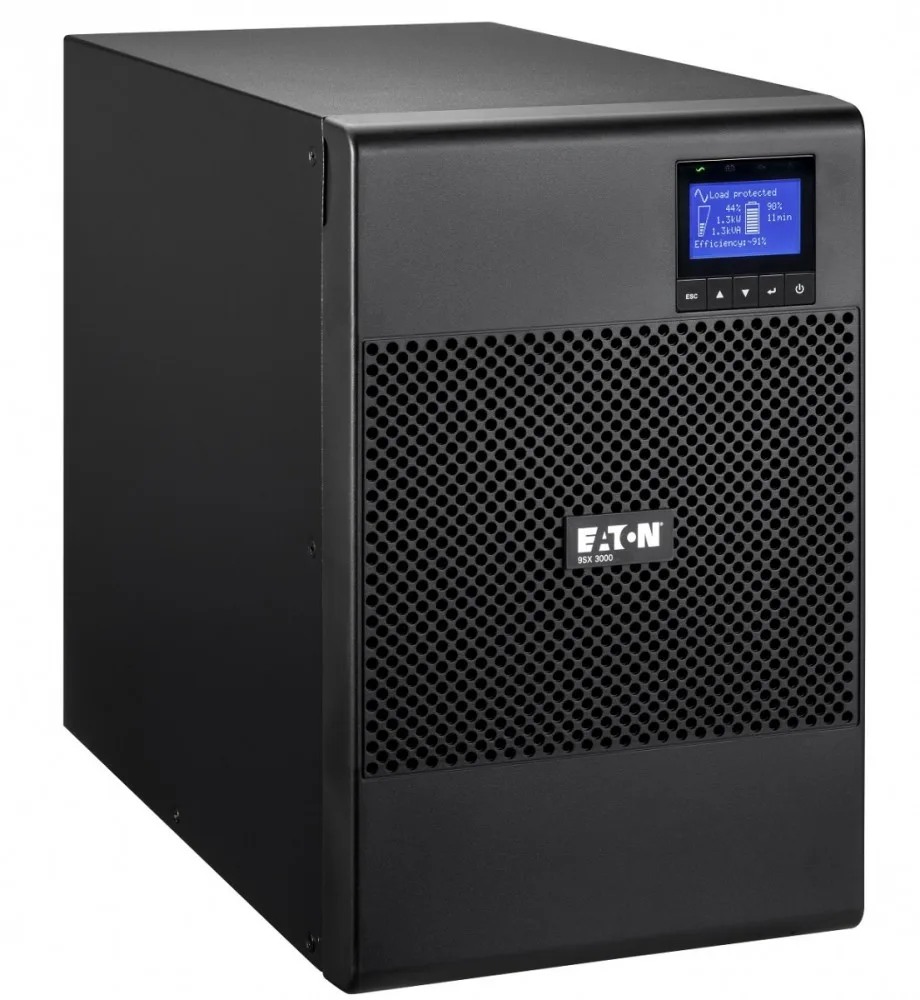

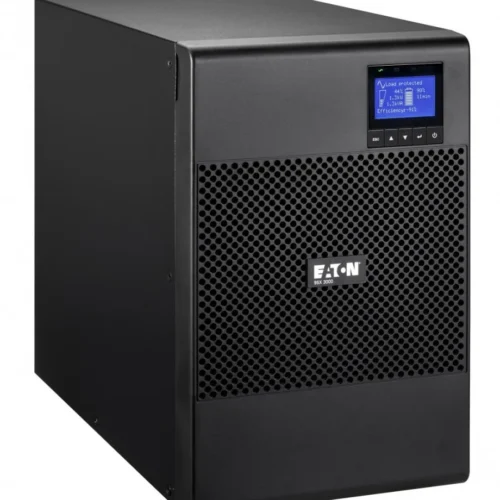

Eaton UPS 9SX 3000i Tower LCD/USB/RS232

Eaton UPS 9SX 3000i Tower LCD/USB/RS232

Description:

UPS with double conversion online 3000 VA / 2700 W, multilingual LCD display, energy meter, 8 IEC 10 A + 1 IEC 16 A sockets (2 manageable groups), slot for optional management card, USB and serial ports, potential-free contacts, connector RPO, power management software compatible with the virtual environment, batteries replaceable while the device is in operation, long failover time with four optional EBM modules.

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Voltage: 230 Volt
Charging time: 30 Minute
Chassis type: Tower
Filters / protection: Overdischarge
Special functions:
Software:

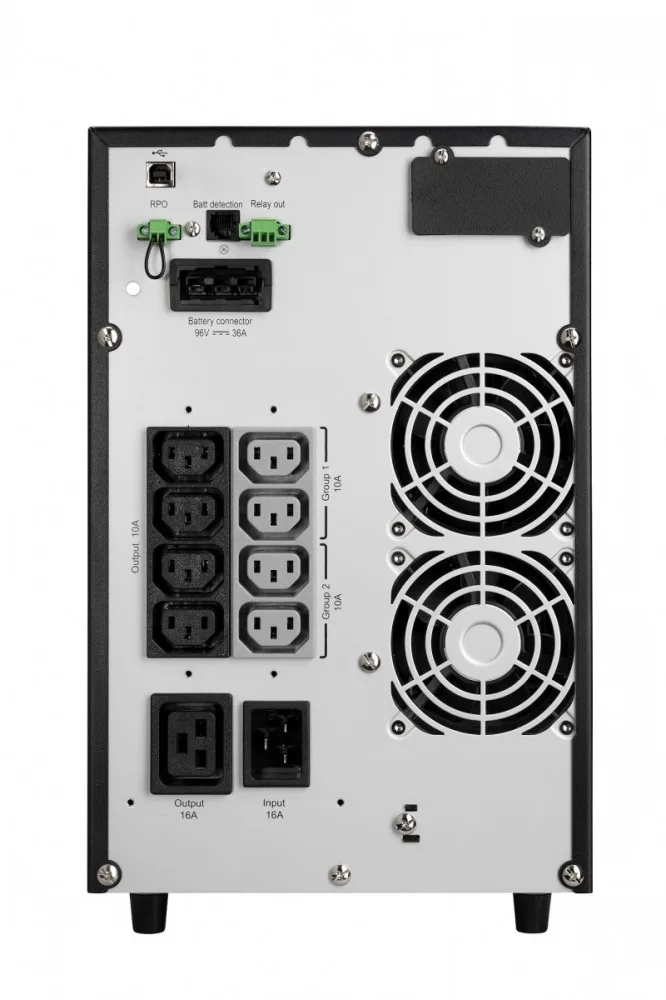

Input power ports: IEC-C20
Output power ports: 8 x IEC-C13
Output power ports: 1 x IEC-C19
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Temperature during operation: 0-40°C
• Noise level: 45 dB

Accessories included:

• 1 European 16 A input power cable (1.8 m),
• 2 IEC10A output wires (1.8 m),
• 1 USB cable (1.8 m),
• 1 serial cable (1.8 m),
• Short instruction manual,
• Safety instructions.

Color: Black
Dimensions:

346 x 214 x 412 mm

Weight: 33.4 kilogram
Other features:

• 1 mini-terminal block for remote power off (configurable)
• 1 block of mini-terminals to the output relay
• 1 socket for the optional communication module

Designation:
