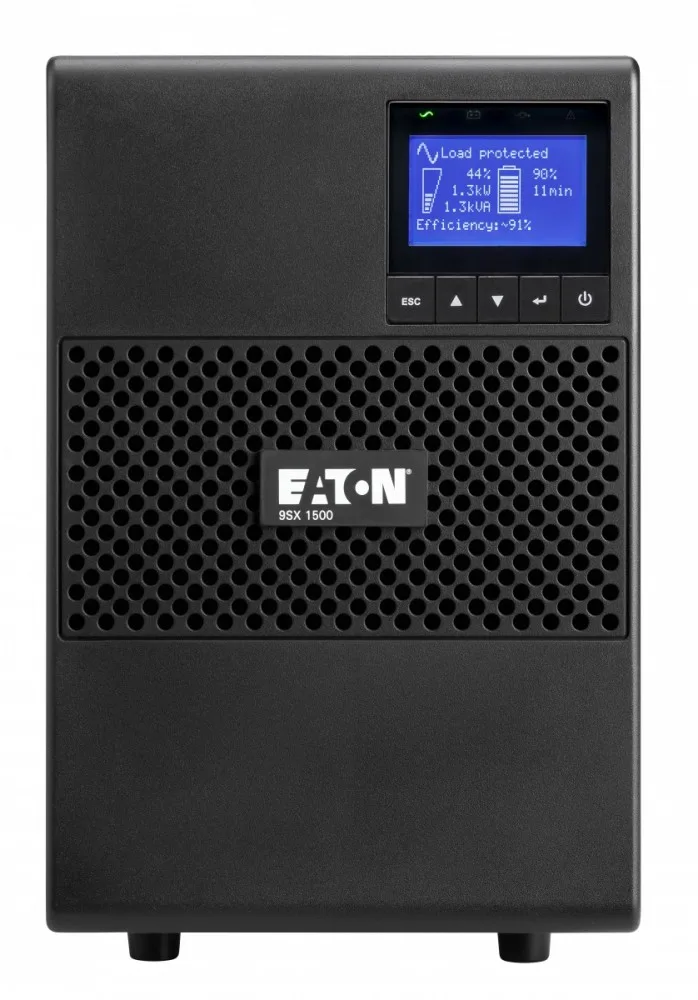

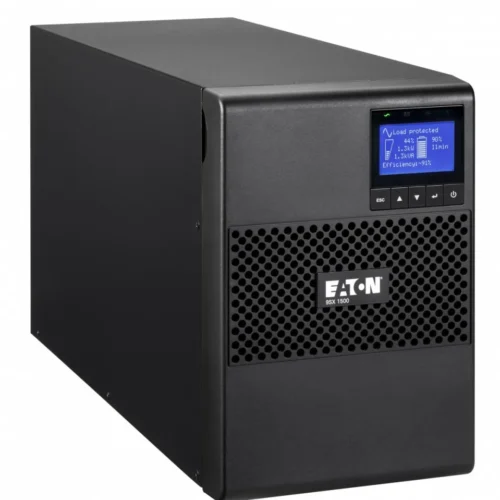

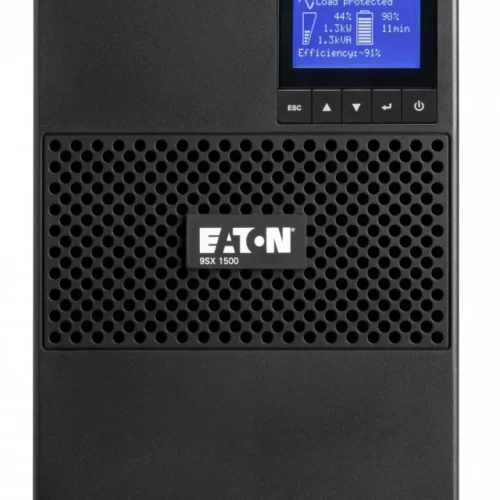

Eaton UPS 9SX 1500i Tower LCD/USB/RS232

Eaton UPS 9SX 1500i Tower LCD/USB/RS232

Description:

UPS with double conversion online 1500 VA/1350 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), slot for optional management board, USB and serial ports, potential-free contacts, RPO connector, management software power supply compatible with the virtual environment, batteries replaceable during operation of the device, long emergency work time with four optional EBM modules.

Apparent power: 1500 VA
Active power: 1350 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Voltage: 230 Volt
Charging time: 50 Minute
Chassis type: Tower
Filters / protection: Overdischarge
Special functions:
Software:

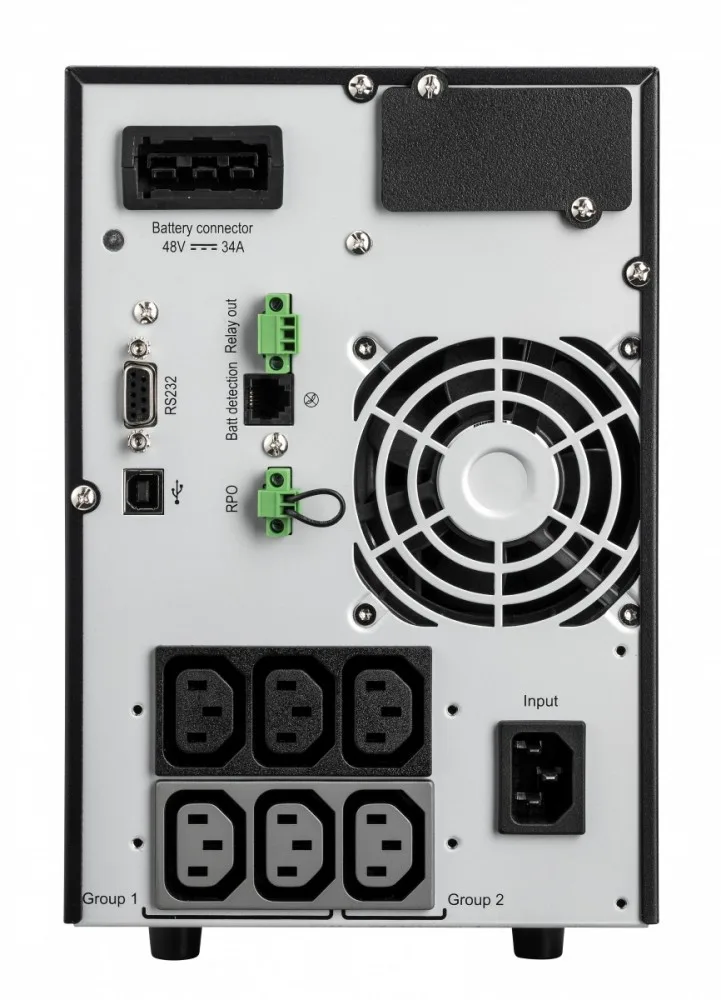

Input power ports: IEC-C14
Output power ports: 6 x IEC-C13
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x USB 2.0
Environment requirements:

• Temperature during operation: 0-40 °C
• Noise level: 43 dB

Accessories included:

• IEC10A output wires (1.8 m) x 2
• USB cable (1.8 m)
• Serial cable (1.8 m)
• Short instruction manual
• Safety instructions

Color: Black
Dimensions:

252 x 160 x 437 mm

Weight: 18.5 kilogram
Other features:

• Mini-terminal block for remote power off (configurable)
• Block of mini-terminals to the output relay
• Socket for the optional communication module
