Eaton UPS 9SX 1000i Rack2U LCD/USB/RS232

Eaton UPS 9SX 1000i Rack2U LCD/USB/RS232

Description:

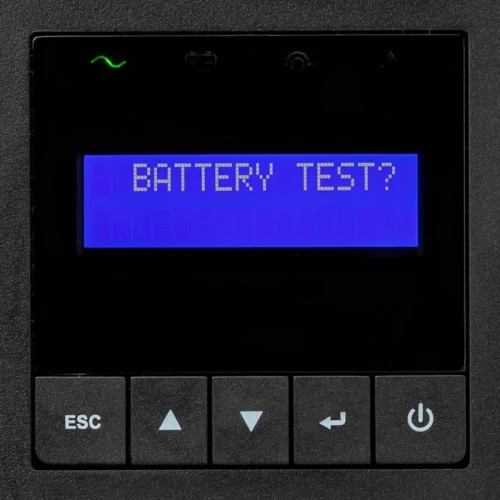

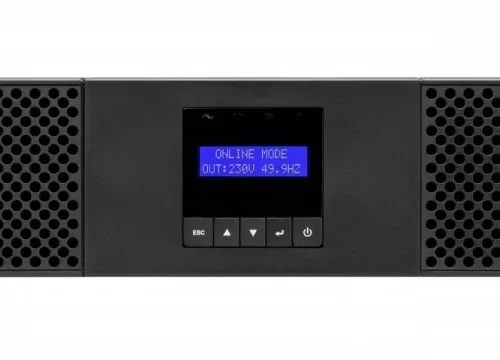

UPS with double conversion online, 2U Rackmount, 3000 VA / 2700 W, multilingual LCD display, energy meter, 6 IEC 10 A + IEC 16 A (2 manageable groups), slot for optional management board, USB and serial ports, contacts potential free, RPO connector, power management software compatible with the virtual environment, batteries replaceable during operation, long emergency operation time with four optional EBM modules, all accessories for mounting in a rack in the set.

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Voltage: 230 Volt
Charging time: 22 Minute
Chassis type: Rack
Filters / protection: Overdischarge
Special functions:
Software:
Input power ports: IEC-C20
Output power ports: 8 x IEC-C13
Output power ports: 1 x IEC-C19
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Temperature during operation: 0-40°C
• Noise level: 45 dB

Accessories included:

• 2 IEC10A output wires (1.8 m),
• 1 European 16A power cord (1.8 m),
• Rack mounting kit,
• 1 USB cable (1.8 m),
• 1 serial cable (1.8 m),
• Short instruction manual,
• Safety instructions.

Color: Black
Dimensions:

86,5 x 438 x 608 mm

Weight: 26.5 kilogram
Other features:

• 1 mini-terminal block for remote power off (configurable)
• 1 block of mini-terminals to the output relay
• 1 socket for the optional communication module
