Eaton Ellipse ECO 650 IEC EL650IEC

Eaton Ellipse ECO 650 IEC EL650IEC

Description:

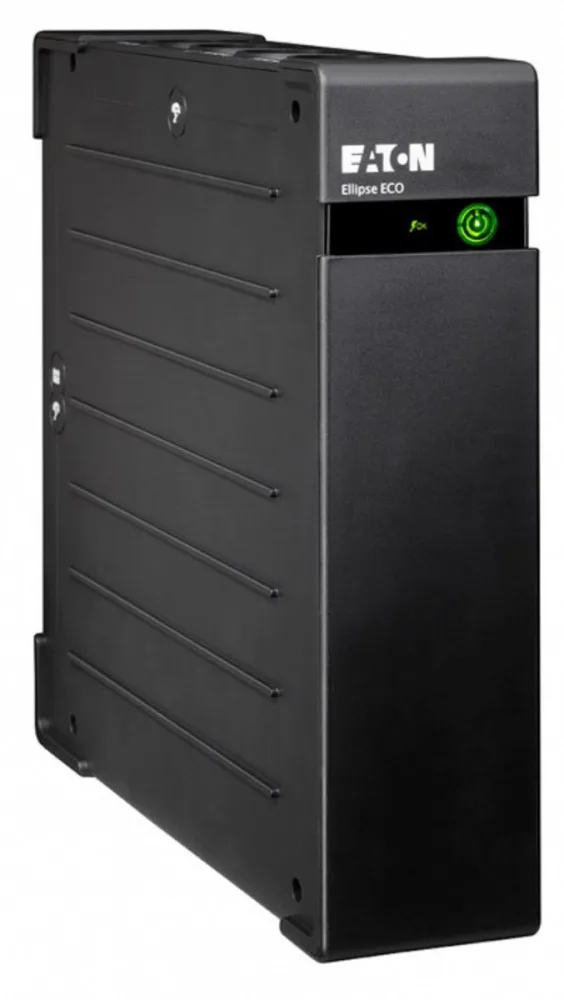

Eaton Ellipse ECO 650 IEC

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

Full specification: http://powerquality.eaton.com/EL650IEC.aspx?CX=101

Apparent power: 650 VA
Active power: 400 Watt
UPS Architecture: off-line (standby)
Number of phases input: 1 (230V)
Chassis type: Tower
Chassis type: Rack
Filters / protection: Surge
Filters / protection: Data line
Filters / protection: Overdischarge
Special functions:
Software:
Input power ports: IEC-C14
Output power ports: 4 x IEC-C13
Connectors: RJ-11
Environment requirements:
Accessories included:
Color: Black
Dimensions:

– Height: 263 mm
– Width: 81 mm
– Depth: 235 mm

Weight: 3.6 kilogram
Other features:

– Input voltage range: 184 – 264V
– 3 output sockets with backup and protection + 1 with protection
– Replaceable sealed lead-acid batteries
– Energy-efficient build
– Time: 50% (9 min), 70% (6 minutes)
