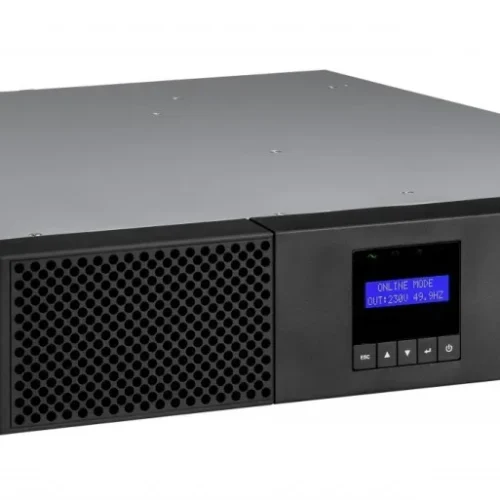

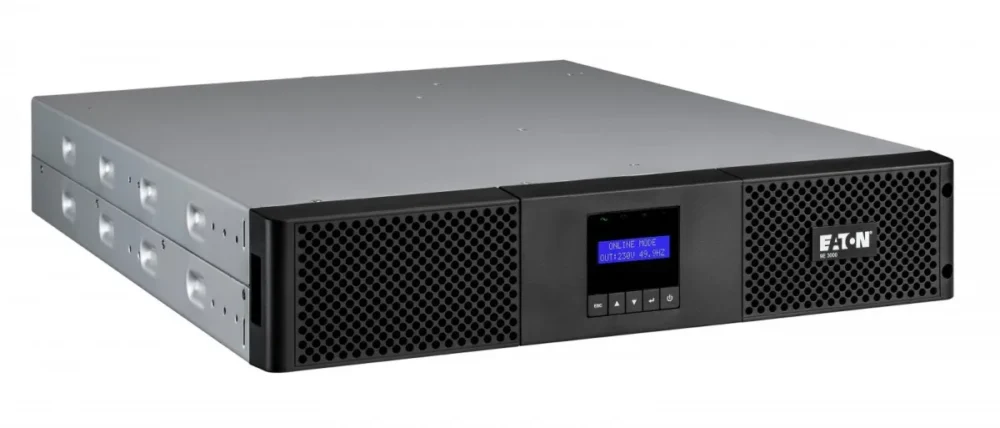

Eaton 9E3000IR UPS Online 3000 VA / 2700 W

Eaton 9E3000IR UPS Online 3000 VA / 2700 W

Important:

The power supply has a menu in Polish.

Description:

Basic online rack UPS

Reliability

• Eaton 9E Rack constantly monitors power parameters and regulates voltage and frequency accordingly thanks to its online double conversion topology.
• Internal bypass ensures continued operation in the event of an internal fault. Optionally, a service bypass is also available, allowing for easy replacement of the UPS without turning off key loads.
• Trust a leading manufacturer with decades of experience and high quality standards: compliance with CE standards confirmed by a third party (CB report).

Flexibility

• With a power factor of 0.9, 9E Rack is able to power more servers and follows the latest industry trends.
• The backup time can be extended with up to 4 external battery modules (2 and 3 kVA models), providing power for up to many hours.
• Access to the batteries from the front panel means there is no need to remove the UPS from the rack during service.

Management

• Available in 6 languages (including Polish), the menu on the 9E Rack’s LCD display provides an easy view of its status, measurements and configuration options.
• Easy communication with the UPS via USB port, RS232 port or over the network via an optional network card (Network-M3). All models are also equipped with an RPO connector.
• The Eaton 9E Rack UPS is compatible with Eaton Brightlayer software for integration with all major operating systems, leading virtual environments and cloud orchestration tools.

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 6
Voltage: 12 Volt
Battery capacity: 9 Ah
Chassis type: Rack
Filters / protection: Overdischarge
Special functions:
Software:
Input power ports: IEC-C20
Output power ports: 6 x IEC-C13
Output power ports: 1 x IEC-C19
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Temperature during operation: 0-40 degrees C
• Noise level: 45 dB

Accessories included:

• UPS power supply
• (2) IEC-IEC output cables
• USB cable
• Rack mounting kit (rails and brackets)
• Safety instructions
• Quick Start Guide

Color: Black
Dimensions:

86.5 x 438 x 608 mm

Weight: 31.3 kilogram
Other features:
Designation:
