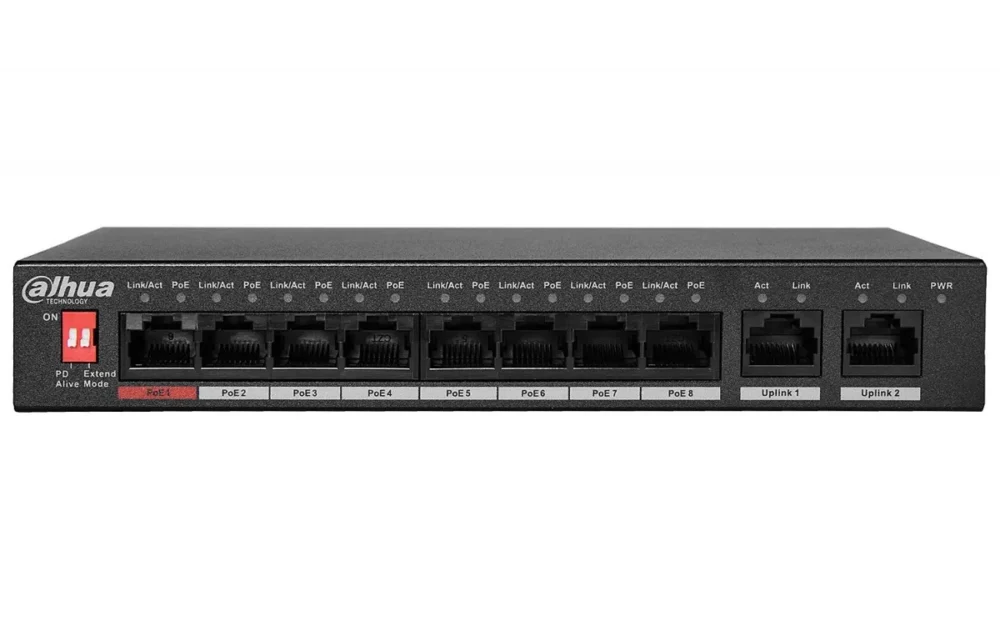

Dahua PFS3010-8ET-96-V2 8 ports switch POE

Dahua PFS3010-8ET-96-V2 8 ports switch POE

Description:

The Dahua PFS3010-8ET-96-V2 8-Port PoE Switch (Unmanaged) is a cost-effective Layer 2 switch that is equipped with 8 802af/at (10/100Mbps) RJ45 PoE ports and 2 1 Gbps RJ45 Uplink ports. The PFS3010-8ET-96-V2 is compatible with the IEEE802.3af and IEEE802.3at power standards. It supports PoE standards IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE, IEEE802.3bt. It is a great solution for expanding a home or office network.

The switch offers a total PoE power budget of 96W for connected devices. In addition, the network switch is equipped with PoE 2.0 technology including features such as PoE watchdog, intelligent PoE and support for long-distance mode of 250m.

Features PFS3010-8ET-96-V2:

• Layer 2 switch
• Intelligent PoE
• Throughput: 5.6Gbps
• 8x RJ45 PoE 802af/at ports (10/100Mbps)
• 2x RJ45 UpLink port (10/100/1000Mbps)
• Optical LED indication of operation
• Protections: ESD, against discharge
• Supports PoE transmission at a distance of 250 meters
• Power supply: DC 53V (power adapter included)
• Total power consumption: 96W max.

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 8
Number of 10/100/1000 Mbps ports: 2
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Throughput: 5.6 Megabity na sek.
Forwarding rate: 4.17 Mpps
Memory buffer: 4 MegaBajt
MAC address table size: 8000
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Power consumption: 96 Watt
Accessories included:
Power supply:

48 V – 57 V DC

Dimensions:

190 × 100 × 30 mm

Other features:

• Operating conditions 10°C to +55°C 5% 95% (RH)
• Current consumption: Idle: 3 W
• Full load: 96W
• Communication standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
• Operating humidity: 5% ~ 95%
• PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
• PoE power supply: 96W
• Power consumption management: Yes
• PoE pin assignment: 5% ~ 95%
• Long Distance PoE: PoE transmission over 250 m
• PoE Watchdog: Yes

Electrostatic charge protection:

• Air discharge: 8 kV
• Contact Discharge: 6 kV

Lightning protection:

• Common mode: 4 kV
• Differential mode: 2 kV
