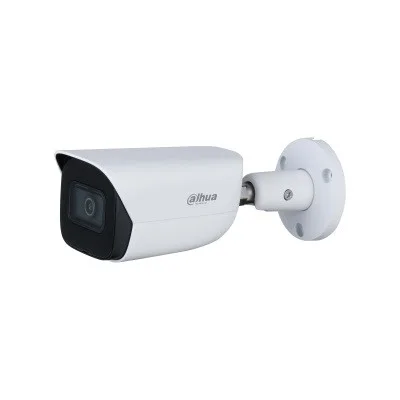

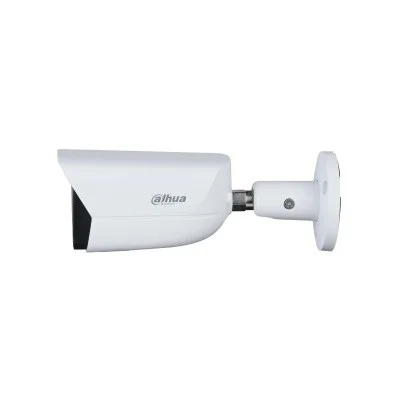

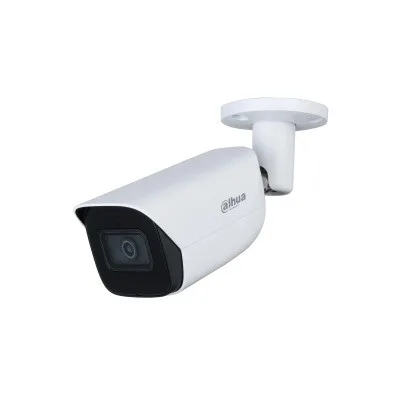

Dahua IP Camera IPC-HFW2541E-S-0280B

Dahua IP Camera IPC-HFW2541E-S-0280B

Description:

IP Camera IPC-HFW2541E-S-0280B

• 1/2.7″ 5MP CMOS
• Smart H.265/H.264
• 20fps @ 5Mpx
• WDR(120dB)
• micro SD(max 256GB)
• 2.8mm prime lens
• IR 30m
• IP67
• DC 12V/PoE
• IVS (line crossing, intruder in zone)
• SMD
• Built-in microphone

type: Fixed bullet type camera
Resolution: 2592 x 1944
Frames per second: 30
Sensor:

1/2.7″ CMOS

Lens:

• Lens type: Fixed focus
• Lens mount: M12
• Focal length: 2.8mm
• Max. Aperture: F1.6
• 2.8mm field of view: H: 97°, V: 71°, D: 129°
• Aperture Type: Fixed
• Focus: from 1.1 m

Viewing angle, vertical: 71 Degrees
Viewing angle, horizontal: 97 Degrees
Microphone: Yes
Speakers built-in : No
Two-way transmission: No
Night mode: Yes
Motion detection: Yes
Minimum illuminance: 0 Lux
Security:

• Video encryption
• Firmware encryption
• Configuration encryption
• Digest
• WSEZ
• Account lockout
• Security logs
• IP/MAC filtering
• Generate and import an X.509 certificate
• syslog
• HTTPS
• 802.1x
• Secure boot
• Safe update
• Trusted execution

Management, monitoring, configuration:

• Compatibility: ONVIF (Profile S/Profile G/Profile T), CGI, P2P, milestone, Genetec
• Max number of users: 20 (total bandwidth 64M)
• Browsers: IE, Chrome, Firefox
• Software: Smart PSS, DSS, DMSS
• Storage: FTP, SFTP, Micro SD card (max. 256 GB, sold separately), US

Network protocols:

• IPv4
• IPv6
• HTTP
• TCP
• UDP
• ARP
• RTP
• RTSP
• RTCP
• RTMP
• SMTP
• FTP
• SFTP
• DHCP
• DNS
• DDNS
• QoS
• UPnP
• NTP
• Multicast
• ICMP
• IGMP
• NFS
• SAMBA
• PPPoE
• SNMP

Mobile support: iOS
Mobile support: Android
Special functions:
Internal memory: 128 MegaBajt
Memory card reader: Yes
Memory standard: SDXC
Wireless communication: No
Connectors: microSD
Connectors: RJ-45
Protection class: IP67
Power supply:

12 VDC/PoE (802.3af)

System Requirements:
Accessories included:
Color: White
Dimensions:

192.7 x 70.5 x 66.4 mm

Weight: 590 gram
Other features:

• Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Smart Codec: Smart H.265+, Smart H.264+
• Multistreaming: 2 streams
• Bit Rate Control: CBR/VBR
• Video Bit Rate H.264: 3kbps-8192kbps, H.265: 3kbps-8192kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC
• HLC
• WDR: 120dB
• Scene Auto Adaptation (SSA)
• White Balance: Auto/Natural/Street/Outdoor/Manual/Regional Custom
• Gain Control: Auto/Manual
• Noise reduction: 3D DNR
• Motion detection: 4 zones
• ROI: 4 zones
• Smart Illumination
• Rotation: 0° / 90° / 180° / 270° (at 90° / 270° max. resolution 1080p)
• Mirror reflection
• Privacy zones: 4

Designation:
