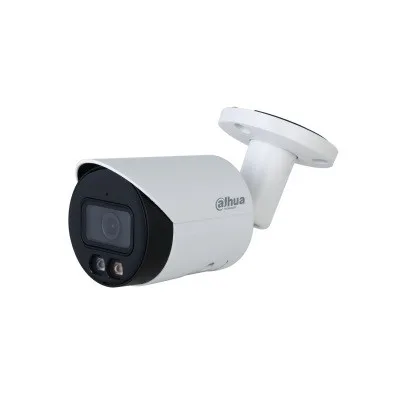

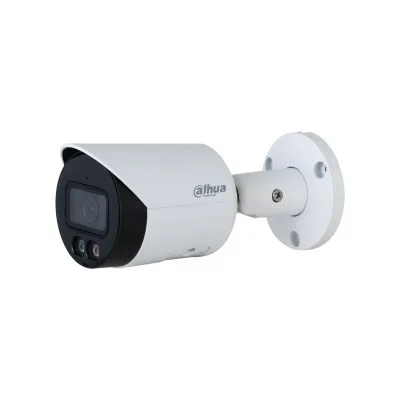

Dahua IP Camera IPC-HFW2449S-S-IL-0280B

Dahua IP Camera IPC-HFW2449S-S-IL-0280B

Description:

IP camera IPC-HFW2449S-S-IL-0280B

• 1/2.9″ 4MP FullColor
• Smart H.265/H.264
• 20fps @ 4MP
• WDR(120dB)
• micro SD(max 256GB)
• Built-in microphone
• 2.8mm prime lens
• Intelligent IR illumination 30 m
• LED 30m
• IP67
• DC 12V/PoE
• AI: IVS (line crossing, intruder in zone)
• SMD

type: Fixed bullet type camera
Resolution: 2688 x 1520
Frames per second: 30
Sensor:

1/2.9″ CMOS

Lens:

• Lens type: Fixed focus
• Lens mount: M12
• Focal length: 2.8mm
• Max. Aperture: F1.6
• Field of view: 2.8mm: H: 95°, V: 52°, D: 114°
• Aperture Type: Fixed
• Focus: from 0.9 m

Viewing angle, vertical: 52 Degrees
Viewing angle, horizontal: 95 Degrees
Microphone: Yes
Speakers built-in : No
Two-way transmission: No
Night mode: Yes
Motion detection: Yes
Minimum illuminance: 0 Lux
Security:

• Configuration encryption
• Trusted execution
• Digest
• security logs
• WSEZ
• Account lockout
• syslog
• Video encryption
• 802.1x
• IP/MAC filtering
• HTTPS
• Secure boot
• Safe update
• Generate and import an X.509 certificate

Management, monitoring, configuration:

• Max number of users: 6 (total band 36M)
• Compatibility: ONVIF(Profile S and T), CGI, P2P, milestone
• Browsers: IE, Chrome, Firefox
• Software: DSS, DMSS
• Mobile: IOS, Android
• Storage: FTP, SFTP, Micro SD card (max. 256 GB, sold separately)

Network protocols:

• IPv4
• IPv6
• HTTP
• TCP
• UDP
• ARP
• RTP
• RTSP
• RTCP
• RTMP
• SMTP
• FTP
• SFTP
• DHCP
• DNS
• DDNS
• NTP
• Multicast
• ICMP
• IGMP

Mobile support: Android
Mobile support: iOS
Special functions:
Memory card reader: Yes
Memory standard: SDXC
Wireless communication: No
Connectors: RJ-45
Connectors: microSD
Protection class: IP67
Power supply:

12 VDC/PoE (802.3af)

System Requirements:
Accessories included:
Color: White
Dimensions:

166.2 x 70 x 70 mm

Weight: 480 gram
Other features:

• Video compression: H.264H, H.265, H.264, H.264B, MJPEG (only supported by substream)
• Smart Codec: Smart H.265+, Smart H.264+
• Multistreaming: 2 streams
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 32kbps-6144kbps, H.265: 12kbps-6144kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC
• HLC
• WDR: 120dB
• White Balance: Auto/Natural/Street/Outdoor/Manual/Regional Custom
• Gain Control: Auto/Manual
• Noise reduction: 3D DNR
• Motion detection: 4 zones
• ROI: 4 zones
• Rotation: 0° / 90° / 180° / 270° (at 90° / 270° max resolution 2688 × 1560)
• Mirror reflection
• Privacy zones: 4

Designation:
