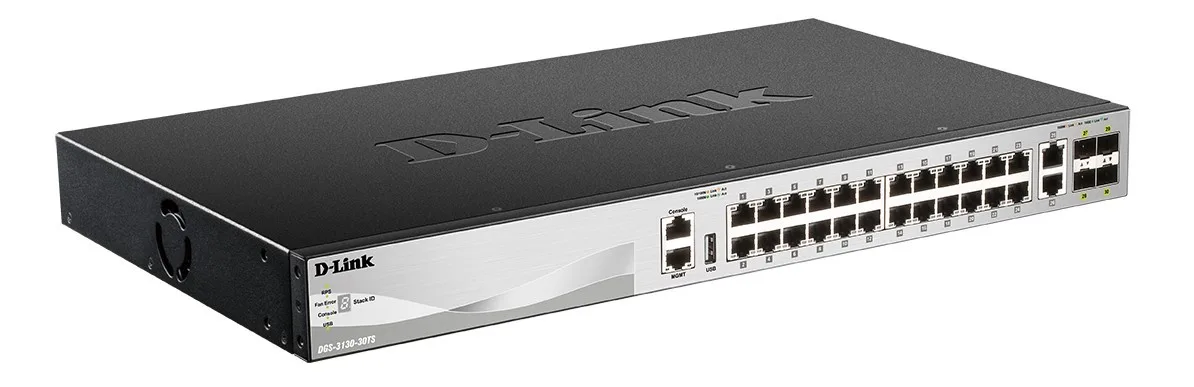

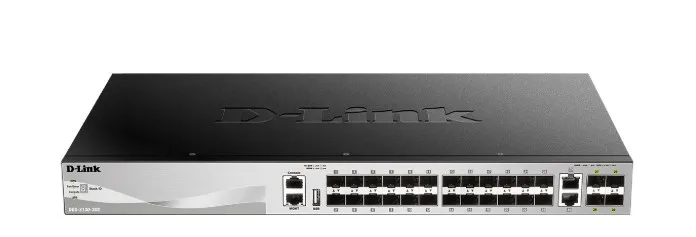

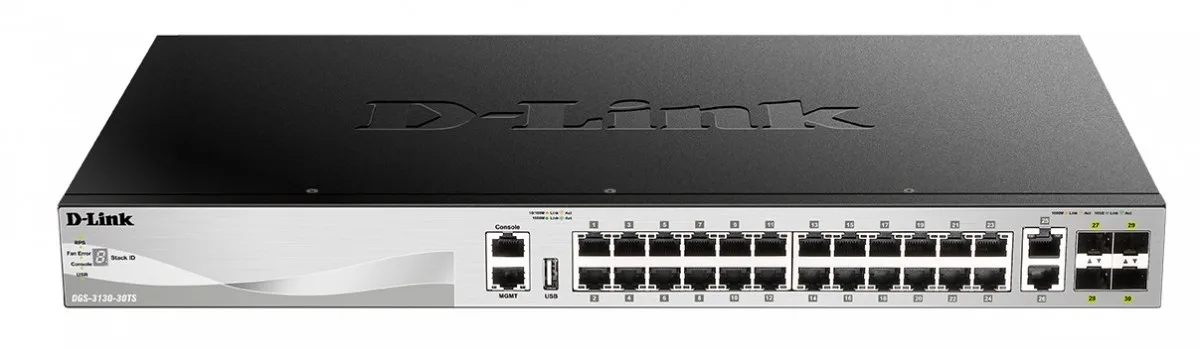

D-Link Switch DGS-3130-54S/E
Описание:

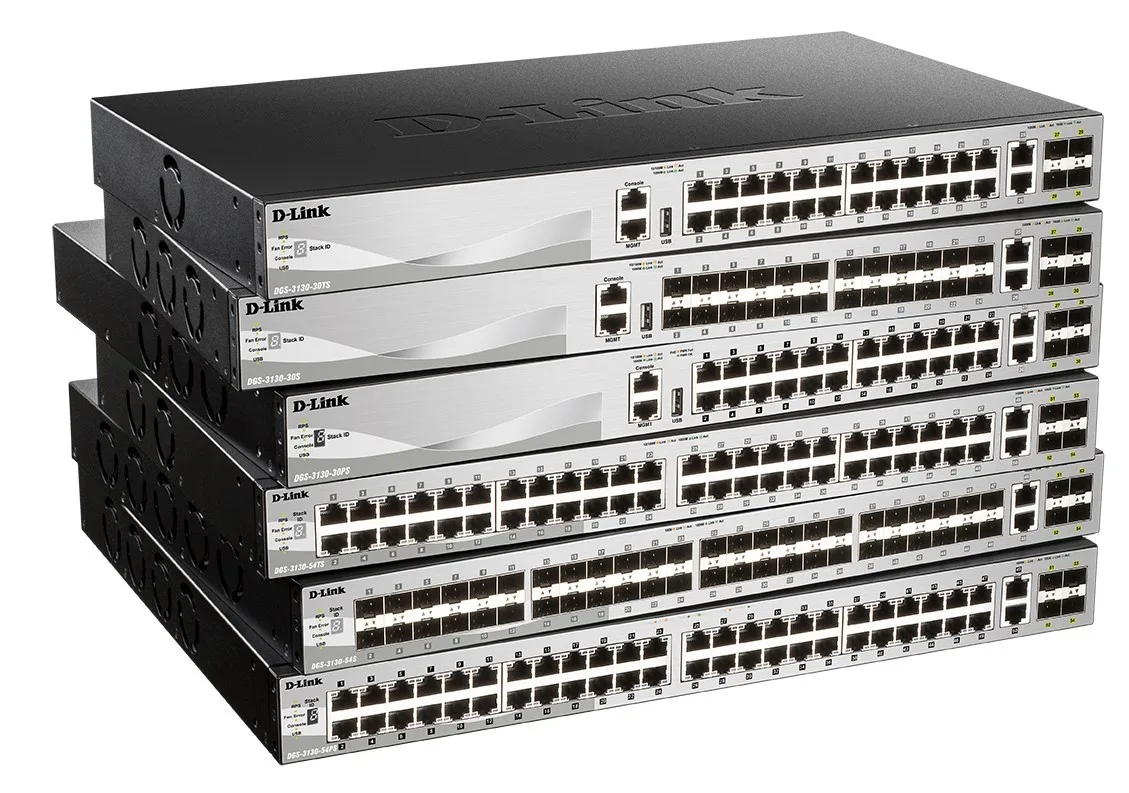

DGS-3130 Series L3 Managed Gigabit Switches
- Unified software image with extensive L2 and L3 features
- 6 10G ports
- 6kV surge protection for Gigabit Ethernet ports
- Optional Power over Ethernet (PoE) with up to 740W power budget with RPS
- D-Link Safeguard Engine
- Limited Lifetime Warranty
Higher port density. Extensive Layer 3 features.
Designed for small and medium-sized businesses, these switches feature a unified software image that includes L2 and L3 features. 10 Gigabit ports offer higher port density thanks to physical stacking. This allows the DGS-3130 Series switches to be used in a variety of environments and topologies, including Metro Ethernet deployments.
Advanced Layer 2 and Layer 3 features include port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options include a multi-language browser-based user interface, industry-standard CLI support, multi-image support, and multiple configurations.

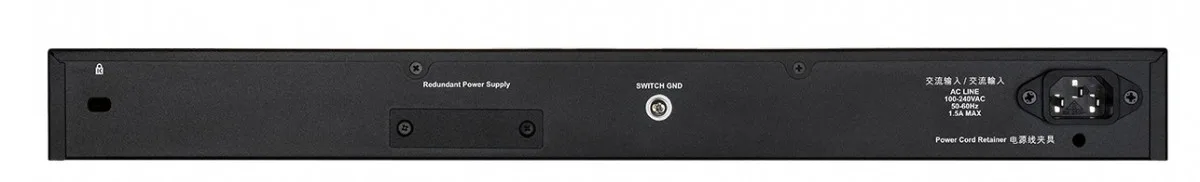

Six 10-Gigabit ports with physical stacking options for increased port capacity, and built-in G.8032 Ethernet Ring Protection Switching (ERPS) helps reduce recovery time to 50 ms. A USB 2.0 interface for storing configuration files, boot images, syslog, and support for additional redundant external power supplies on all models ensure maximum uptime.
The latest features include Multi-layer Packet Content Access Control Lists (ACLs), and Storm Control. D-Link Safeguard Engine, designed to protect against data flooding caused by malicious attacks, maximizes business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address to a corresponding MAC address and define a port number for enhanced user access control. DHCP Snooping allows the switch to learn IP/MAC address pairs, maintaining them in the IMPB whitelist for additional control.
They include multiple authentication mechanisms, such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC), and are used for granular access control and easy deployment. Once authenticated, individual policies, such as VLAN membership, Quality of Service (QoS), and ACL rules, can be assigned to each host.
Microsoft NAP policy support allows you to protect network resources from infected Компютърs by enforcing compliance with network security policies.
Comprehensive Traffic Management
A rich set of multi-layer QoS/CoS features always prioritizes critical network services such as VoIP, video conferencing, IPTV, and IP surveillance, while 10-Gigabit ports provide ample bandwidth. Traffic Shaping guarantees throughput for these services even under heavy network load. L2 Multicast support enables the DGS-3130 series switches to support IPTV applications.
